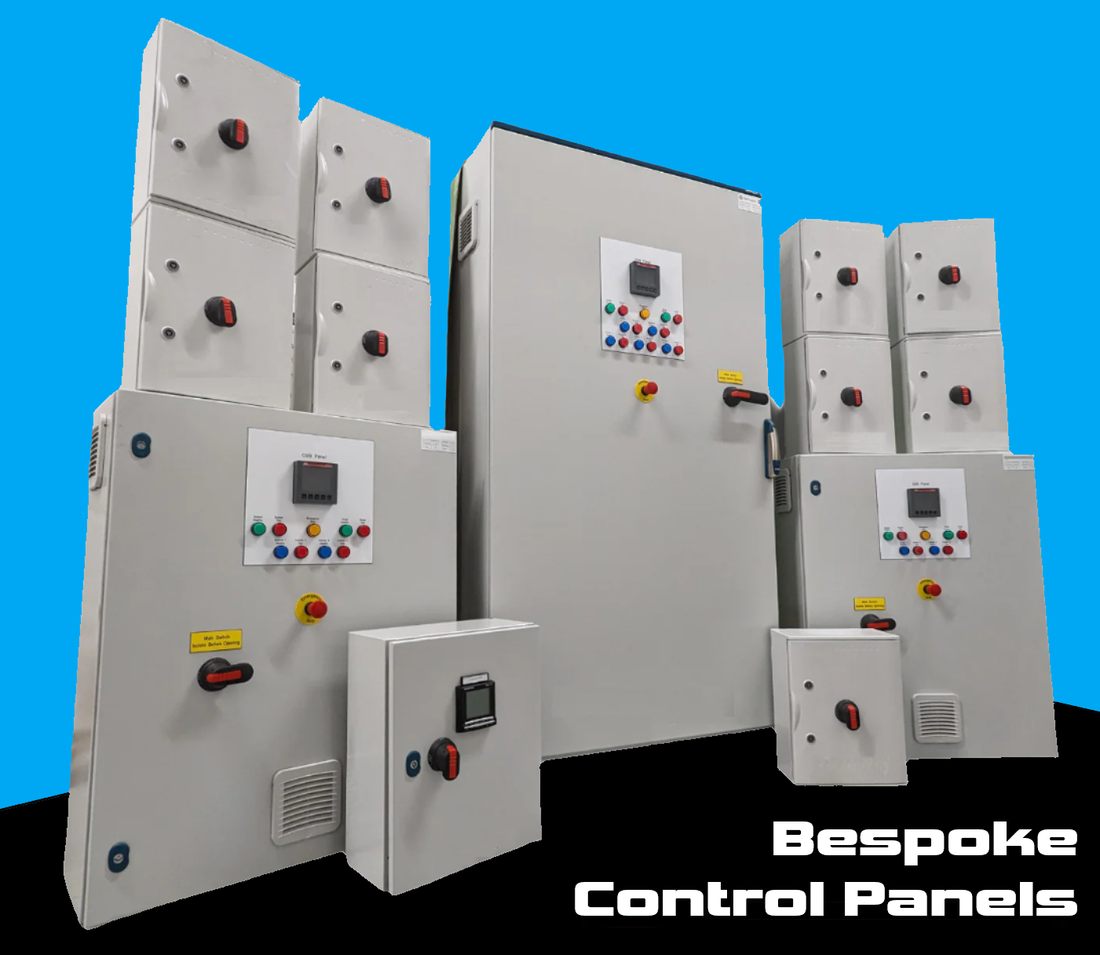

With years of experience in the Renewable Industry, our skilled engineers have vast experience in panel building. You can be assured of a cost-effective, reliable first class service. Our panels are provided using only high-quality components. Whatever your requirements, we’re here to help! Get in touch by emailing us at sales@solartradesupply.com , and give us a try!
G99 Relay Panels - Bespoke
As a trusted and experienced manufacturer of custom-built G99 Relay Panels and G59 Protection Relay Panels, you can rely on us to provide exceptional service and deliver a premium-quality product tailored to your specific project requirements.
Our G99 Protection Relay Panels are fully customised to meet your individual system needs. Each panel is assembled using top-grade components, ensuring durability and long-term performance.
We produce G99 Panels suitable for a variety of generation sources, including Solar PV Systems, Combined Heat and Power (CHP) Units, and Wind Turbines. Our expertise spans a wide range of installations, from smaller setups to multi-megawatt (MW) projects.
By choosing our bespoke manufacturing service, you’re guaranteed a high-performance G99 protection relay panel that combines quality with cost-effectiveness.
Email us at sales@solartradesupply.com
G100 Export Limitation Panels - Bespoke
G100 Export Limitation Panels and are becoming an increasingly popular option. The G100 Export Limitation Panel does exactly what it says on the tin! It will only allow an SSEG system to export what the DNO will permit.
Grid connectivity is becoming more and more of a stumbling block for so many projects. Our solution can help remove this stumbling block for you. If you have a project where you have hit this hurdle, give us a call to see how we can help.
There are a number of ways to restrict your export and solutions are available for both Commercial and Domestic projects.
Our G100 Export Limitation complies with the relevant G100 Engineering Recommendations and we can provide a copy of the Appendix C Certification that your local DNO will ask you for to demonstrate that the equipment you intend to use is fully G100 compliant.
This solution best suits sites with higher usage as when the export limit is reached we are shutting down the additional inverters which will stop producing. The inverters will then regenerate once the system falls back within the export limits set.
If you have any questions on how this works or how this could be incorporated into one of your projects please feel free to get in touch anytime just. We have different solutions we can tailor to suit your project so get in touch today and discuss your requirements. Email us at sales@solartradesupply.com.
UPS Load Changeover Panel - Bespoke
UPS Load Changeover Panels for an Emergency Power Supply (EPS). This panel will offer customers installing Solar PV and Battery Storage a seamless change over from the Mains to the Battery Storage available power almost instantaneously without the flicker of a light! We are able to supply both commercial and domestic solutions.
This will work with both AC Coupled Inverters and DC Hybrid Inverters!
A UPS panel is an Uninterruptible Power Supply that will provide emergency power to a load when the original input (Mains Grid) fails. So, in the event of a power cut for example, the UPS Panel would pick this up and instantaneously change the power supply over to the battery storage system you have installed. This will require the battery system to have sufficient available storage; so if the batteries are empty there would be no power to provide.
Our bespoke units will run the entire load of the property instead of just an essential load, making a unique solution for consumers. However, this is based on the battery having the sufficient charge to do so. The system will always prioritise the Grid as its source of power but this could be reversed if a customer wanted to prioritise battery storage as the primary source.
We can provide a backup power source to any system with Battery Storage. As with all our other products, this is made using only high quality components. We offer competitive prices for bulk orders, so if you have a requirement for these units please contact us to discuss further. Email us at sales@solartradesupply.com.
EV Feeder Pillars - Bespoke
Our bespoke EV Feeder Pillars provide a streamlined, all-in-one solution for easy installation. Prewired components save you time on-site, featuring a variety of MCBs or MCCBs and a primary incomer. We also offer a Door Mounted MID Approved Total Generation Meter with CTs for precise monitoring.
Our EV Feeder Panels are tailored to suit projects of varying scales. Whether it's for smaller electric vehicle charging setups or expansive multi-station networks, we've got you covered.
Our custom-built EV Feeder Pillars offer a consolidated solution housed within a single enclosure, streamlining your installation process significantly. All components come prewired, saving you valuable time on-site. These boards incorporate a comprehensive range of MCBs or MCCBs, accompanied by a primary incomer. Additionally, we offer the inclusion of a Door Mounted MID Approved Total Generation Meter with CTs for accurate monitoring.
Moreover, for enhanced diagnostics, our boards feature MCB and MCCB Status Indicator Lamps on the door. This setup ensures swift identification of any issues with MCBs, MCCBs, or inverters, facilitating rapid troubleshooting and resolution.
All of our panels as standard include:
- Sheet Steel Enclosure (Wall or Floor Mounted)
- Door Mounted Lockable Isolator/MCCB Incomer
- Fuse Protection
- System Healthy Indicator Lamp
- Type 2+3 Surge Protection
- Emergency Stop Button
- RCBO Test Engineer Test Socket
- Panel Vent (Forced Ventilation on Larger Panels)
Optional extras include:
- MID Approved Generation Meter c/w CT’s (door mounted if required)
- BMS Meter’s
- MCB or MCCB Outgoing Ways
- Door Interlocked Lockable Switch Fuse or MCCB
- Individual RCD Protection
- GRP Enclosures
- G100 Export Limitation Controls
Email us at sales@solartradesupply.com
LV Switchgear Solutions
Our engineers design and manufacture custom LV switchgear solutions tailored to client needs, using the latest technologies and materials for durability, reliability, and efficiency.
Contact us for a bespoke quotation - Email us at sales@solartradesupply.com
PV Distribution Boards - Bespoke
Custom-designed to deliver efficient, reliable, and cost-effective, tailored to meet the specific needs of each project, ensuring long-lasting performance and maximum operational efficiency.
PV Distribution Boards are the backbone of Solar Installations. They are an essential link between the inverters and onsite loads, as the name suggests, Distributing the power effectively and efficiently.
What really sets our solutions apart from off the shelf alternatives, we can incorporate a whole range of essential and additional extra components into a high quality, pre-wired, pre-assembled, essentially, plug-and-play systems.
This includes but is not limited to:
- MID Approved Generation Metering
- SolarEdge Firefighter Gateway
- SolarEdge Commercial Gateway
- G99 Protection
- Export Controls ( G100 or RPR )
- RCD Protection
Using our bespoke built PV Distribution Board offers several key advantages:
Customization
Our PV distribution boards are fully customised to suit the unique requirements of your system, ensuring peak performance and seamless integration with other components. We can incorporate a wide range of solutions tailored to your needs, including SolarEdge Firefighter Gateways, Reverse Power Relay Controls, G99 Protection, and Generation Metering, providing a comprehensive, optimised setup for your solar infrastructure.
Efficiency
Designed on a case by case basis around each and every project as an individual, we can ensure our panels arrive on site needing minimal input from yourselves making the whole installation process as quick, easy and stress-free as possible. We provide detailed SLD’s, As-built drawings and all relevant data sheets on a handy QR Code which can be scanned and downloaded to any devise. Our technical team are always happy to help with answering questions and offering advise whenever needed - Email us at sales@solartradesupply.com
Safety
Although we build to your requirements, we always recommend oversizing components in line with manufactures recommendations and we install as standard, Type 2+3 Surge Protection and Fuse Protection. We test our panels rigorously and our engineers sanity check each other’s work prior to leaving the workshop. The safety of our clients as well as the end users and anyone who could potentially work on our solutions for years to come is our top priority.
Scalability
We carefully design our PV distribution boards with scalability in mind, ensuring compatibility with your current system while also accommodating future expansions. This forward-thinking approach allows for effortless upgrades and additional components, helping you expand your solar infrastructure as your energy needs grow, without significant disruptions or costly overhauls.
Compliance
Ensures that the system meets local regulations and standards, avoiding potential legal issues and enhancing system reliability. Choosing a bespoke built PV Distribution Board ensures that your solar power system is efficient, safe, and tailored to your unique requirements, maximizing the return on your investment.
AC & DC Isolators - Bespoke
Ensure safe, efficient, and reliable isolation of AC and DC electrical systems, providing essential protection and control during maintenance or emergencies, while maximising operational safety and system longevity.
AC & DC Isolator Panels are the everyday essential to PV Installations. You may not necessarily need all singing all dancing fancy switchboards for all your installations, but AC Isolation is a must!
Our enclosed Isolators range from 16A right the way up to 4000A. Our isolators are designed around only the highest quality components, essential equipment like this shouldn’t have compromises.
The benefits of using enclosed isolators, we can oversize your enclosure to accommodate any size cables you require, we can incorporate metering, latching state contactors for manual generator intertrip functions, we can design these in such a way which is purely tailored around your system, requirements and potential onsite constraints. Email us at sales@solartradesupply.com.
