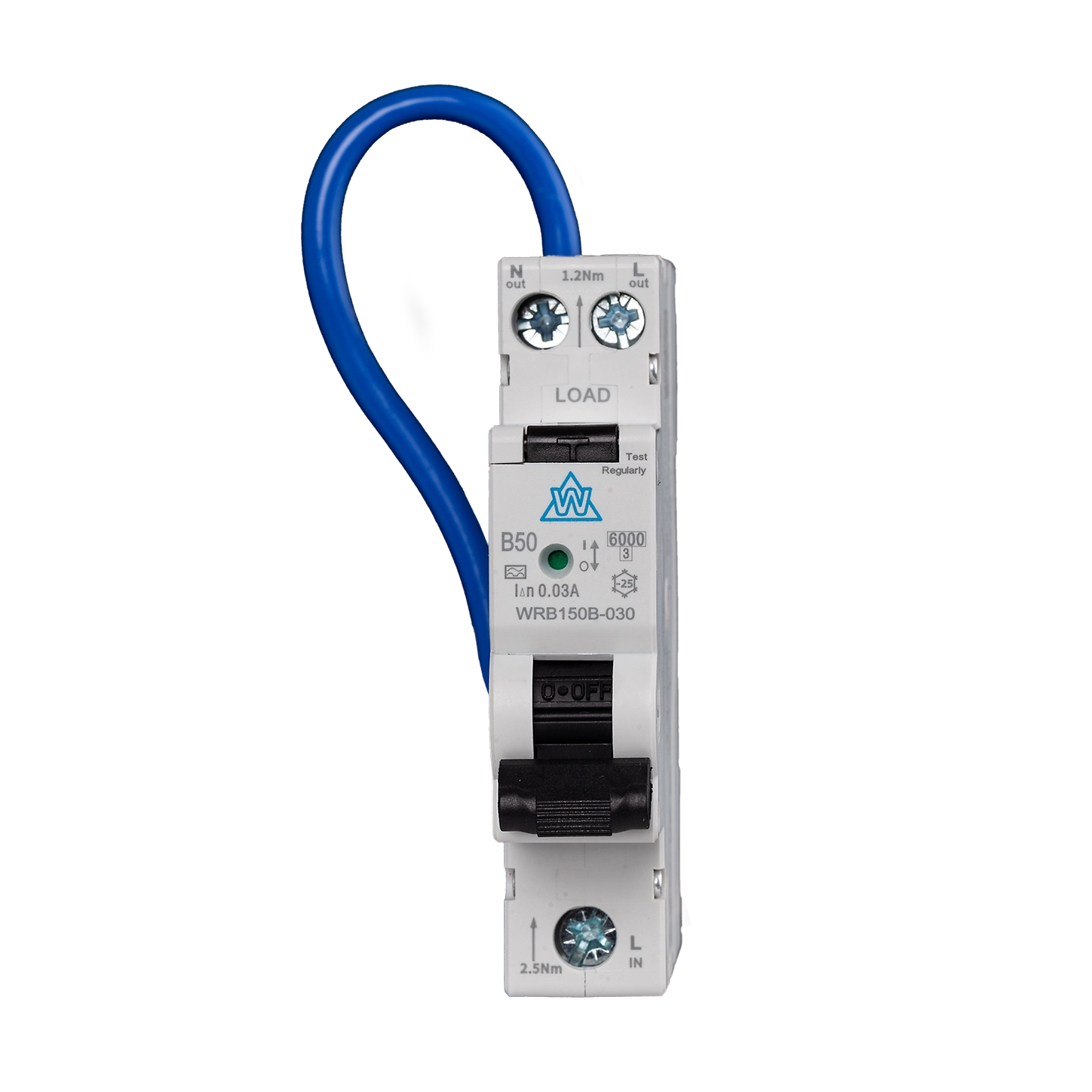

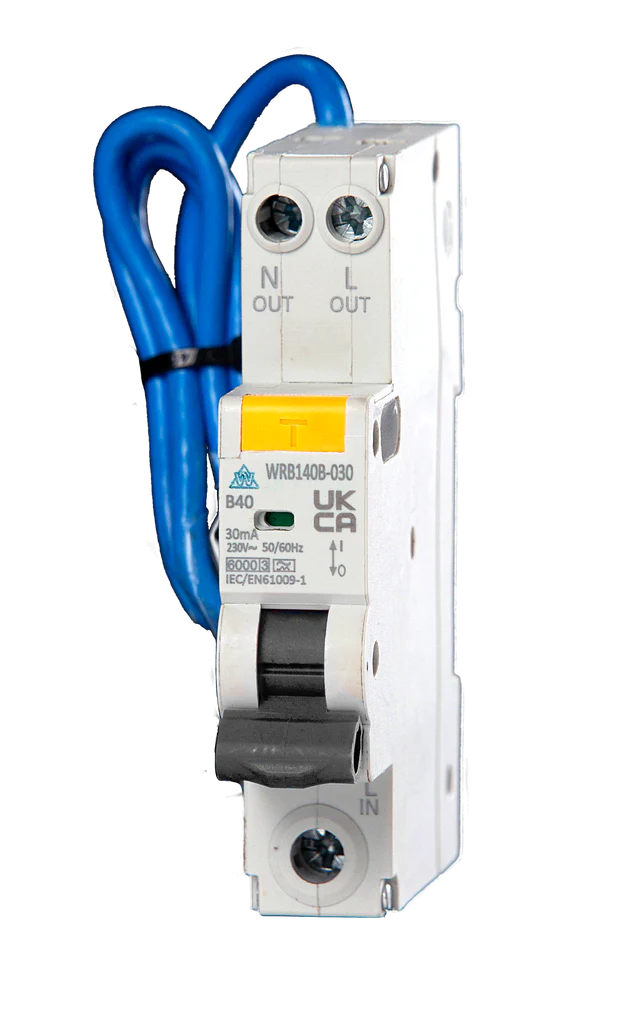

WCED 1 Module Bi-Directional 30mA High immunity Type A RCBO

The WRB Range RCBO from WCED combines both residual current protection (RCD) and overcurrent protection (MCB) in a single compact device. Designed for domestic and commercial electrical installations, these RCBOs provide advanced safety by detecting both AC and pulsating DC residual currents, covering Type A and Type AC protection.

Key Features:

• Type A & AC RCD Protection: Detects and responds to both standard AC faults and pulsating DC leakage currents, offering enhanced electrical safety.

• Switched Live and Neutral: Built-in switched neutral ensures complete circuit isolation, disconnecting both live and neutral conductors during a fault.

• Improved Fault Isolation: Guarantees only the faulty circuit is disconnected, allowing healthy circuits to remain operational—minimizing disruption and enhancing safety.

• Efficient Testing: Switched neutral eliminates the need to disconnect conductors during insulation resistance testing, saving time and labor costs.

• Ideal for Residential and Commercial Use: Suitable for a wide range of applications, including homes, offices, and commercial buildings.

Available in 6A to 40A, B or C curve.

Bi-directional, ideal for solar installations
