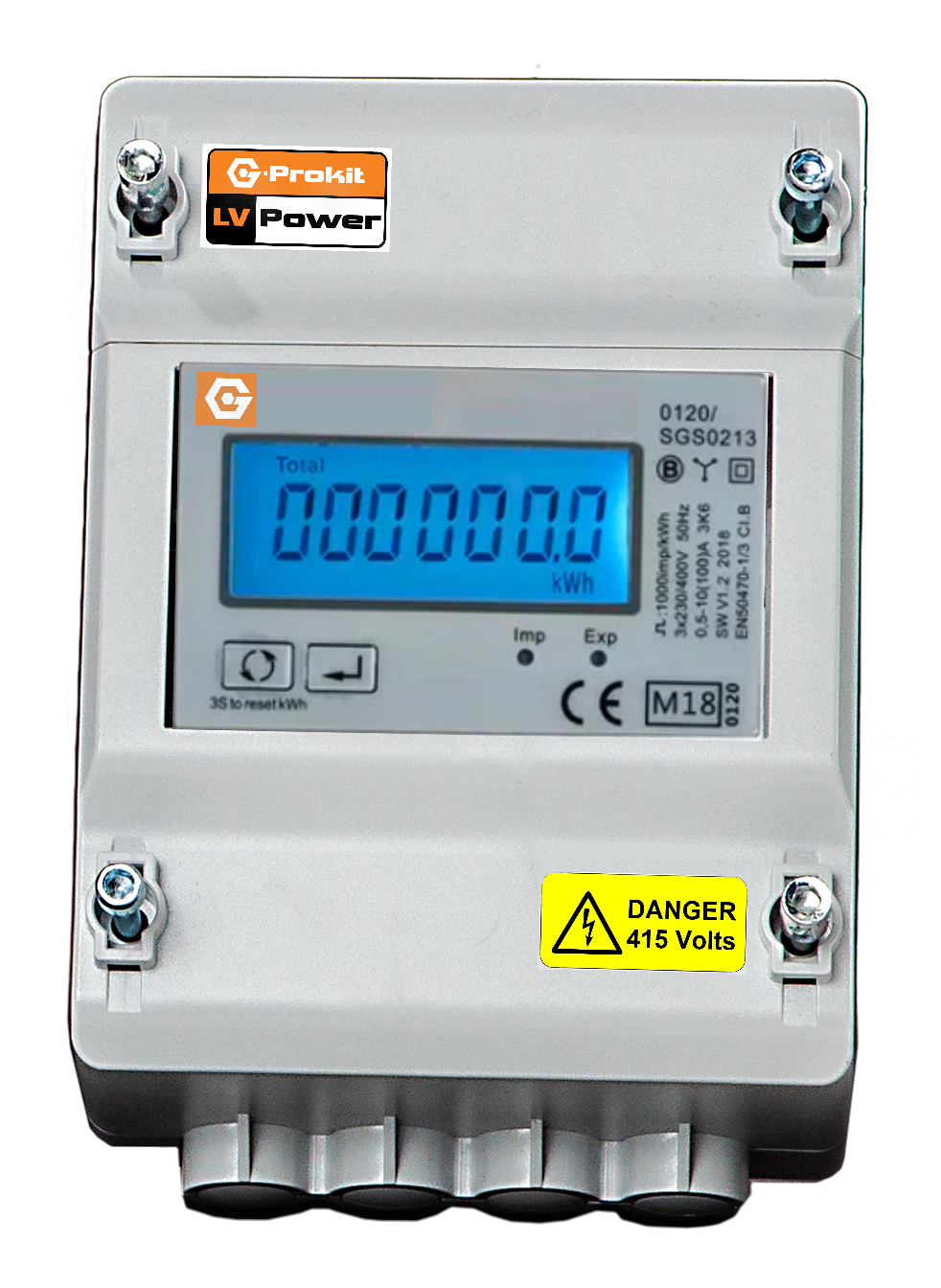

100A Three-phase compact check meter, Modbus

KEY FEATURES:

• Fully MID approved
• Easy-to-read LCD Display

• Compact to fit into tight spaces, with a two-part lid for extra safety. Sealed lid screws. IP20.
• Works directly connected to a maximum load 100A AC circuit.


• Measures and displays Total Active Energy and can be remotely monitored with a pulse collector.

  • Active energy (kWh) + active power (W) Resettable partial energy (DR Only)
  • Pulse output
  • 100A direct load
  • Class 1.0 Accuracy
  • 72mm 4 module width
  • Display remain when blackout (optional)

ENERGY MONITOR

Keep track of your home or office energy consumption in real-time! This advanced monitor measures three-phase, four-wire current supply, monitoring and displaying active energy(kWh) and can be remotely monitored with a pulse collector

EASY-TO-READ DISPLAY

The digital backlit LCD display offers clear data visibility during the day or at night. Its compact design is housed in a 4-module DIN rail-mounted case and offers simple menu navigation

SUBMETERING

This energy monitoring tool provides a detailed breakdown of a single circuit’s energy consumption. Ideal for monitoring individual circuits and accurate sub-billing by accurately measuring and monitoring the energy usage

MAXIMISE ENERGY-SAVING POTENTIAL

By accurately measuring and understanding your energy usage, its energy-saving options allow you to make simple changes that can have a significant impact on your overall use and save you precious kWh

QUALITY METERING

The versatile metering device for accurate energy monitoring shows real-time readings of watts being consumed. This enables you to quickly and accurately monitor energy usage and make informed decisions regarding energy management and optimisation
