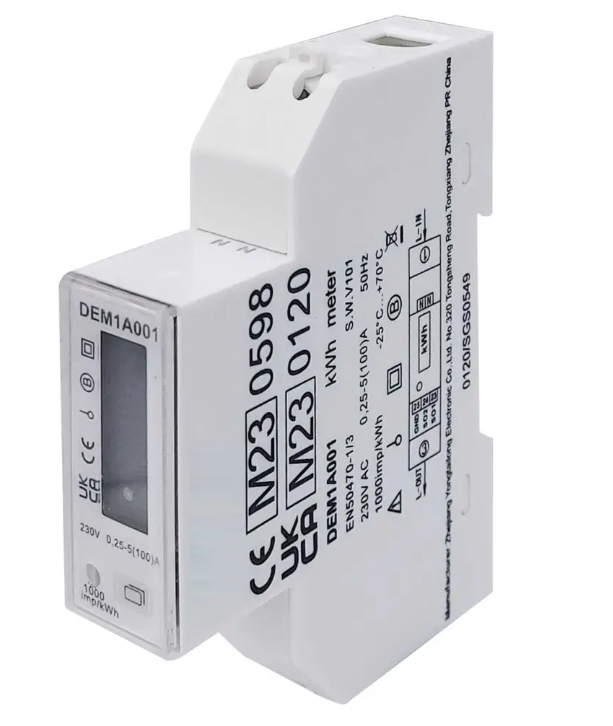

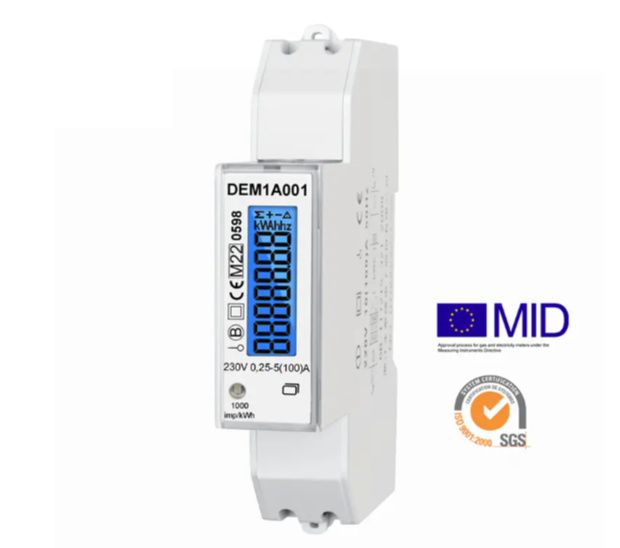

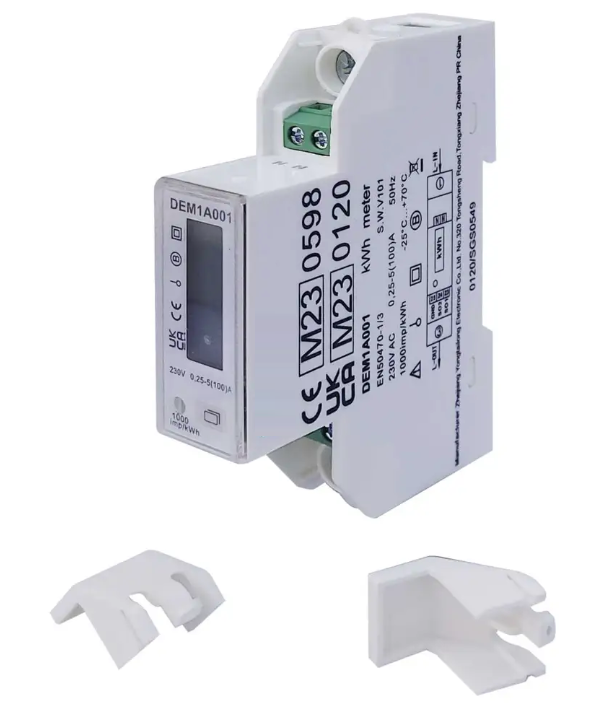

100A Single Phase MID Certified kWh Meter
The DEM1A001 is the best value MID approved meter on the market. This lightweight 100 Amp DIN rail meter is only 18mm wide.
It displays energy (kWh) on it’s blue backlit display and comes with a single pulse output.
Features
- Meter type: single phase meter
- Din rail mounting
- MID B+D certified
- Smart: No
- Tariffs: single
- Module width: 1
- Import and Export
- Bidirectional
-
Output Type: Pulse
Specifications
- Accuracy Class - B
- Colour - Light Grey
- Compliance - CE, MID B+D Certified

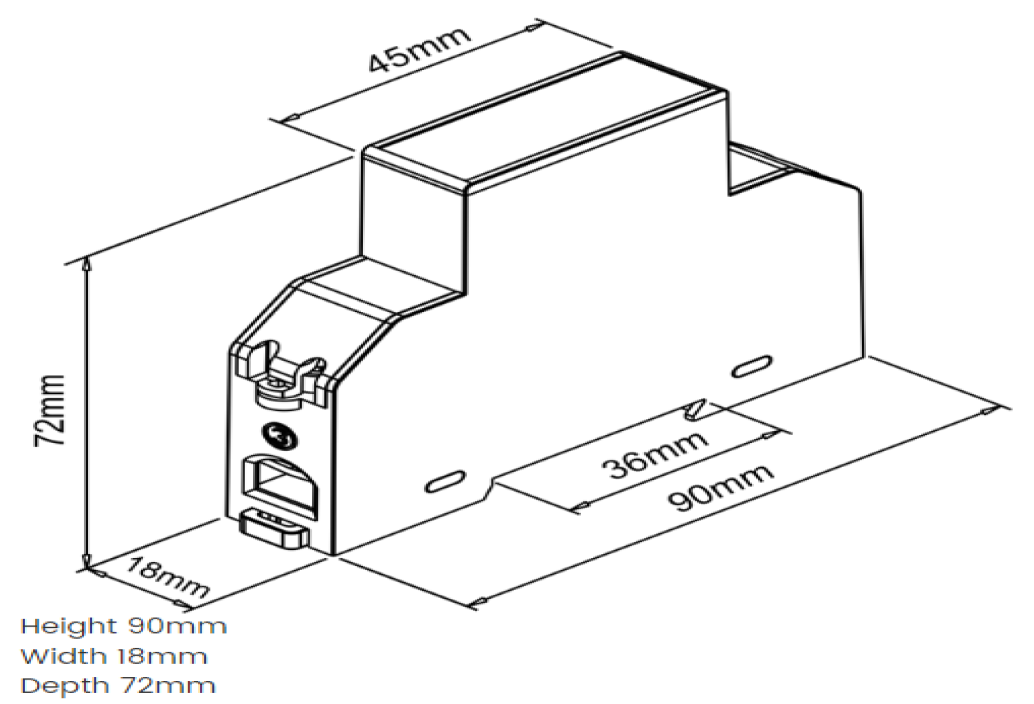

- Dimensions - (H)90 mm x (W)18 mm x (D)72 mm
- Display Type - LCD 5+2 = 99999.99kWh
- Frequency - 50/60 Hz
- Guarantee - 1 Year
- Material - Plastic
- Maximum Current - 100A
- Mounting - DIN Rail
- Number of Modules - 1
- Number of Phases - 1
- Operating Temperature Range -25 - +70°C
- Packaging Types - Box
- Standards - EN50470-1/3
- Unspsc V18 - 39121106
- Unspsc V24 - 39121106
- Voltage Rating - 230V
- Weight - 0.105kg
