100A Three-Phase DIN Rail Metering Kit in Metal Enclosure

The G-Prokit 100A Three-Phase Compact Check Meter offers precise energy monitoring with a clear LCD display and compact design for easy installation in tight spaces.

KEY FEATURES:

• 1 x 3-Phase DIN Rail Meter, rated 100A-400A, MID approved + Modbus

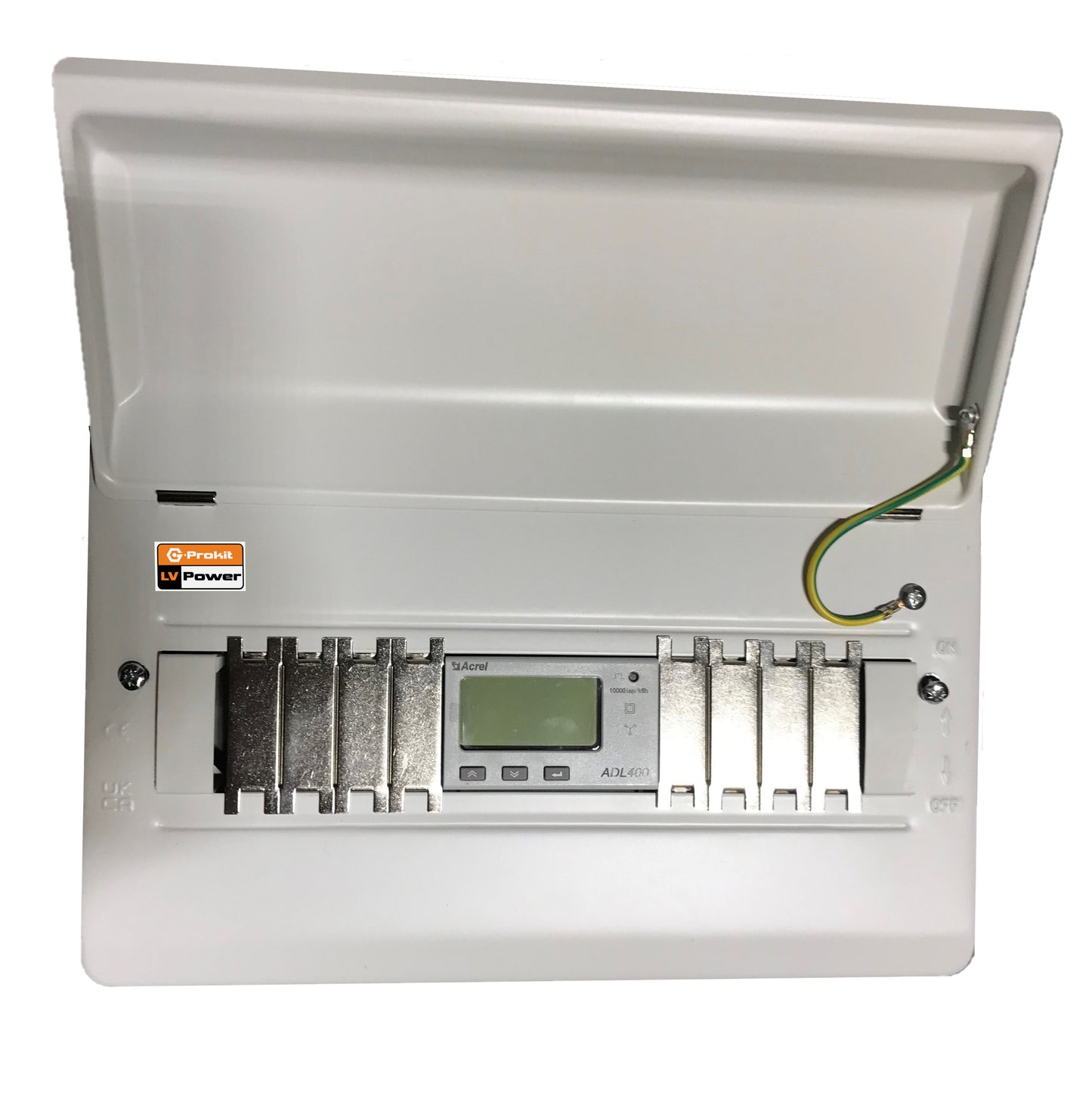

• 1 x Metal 14 Module Enclosure

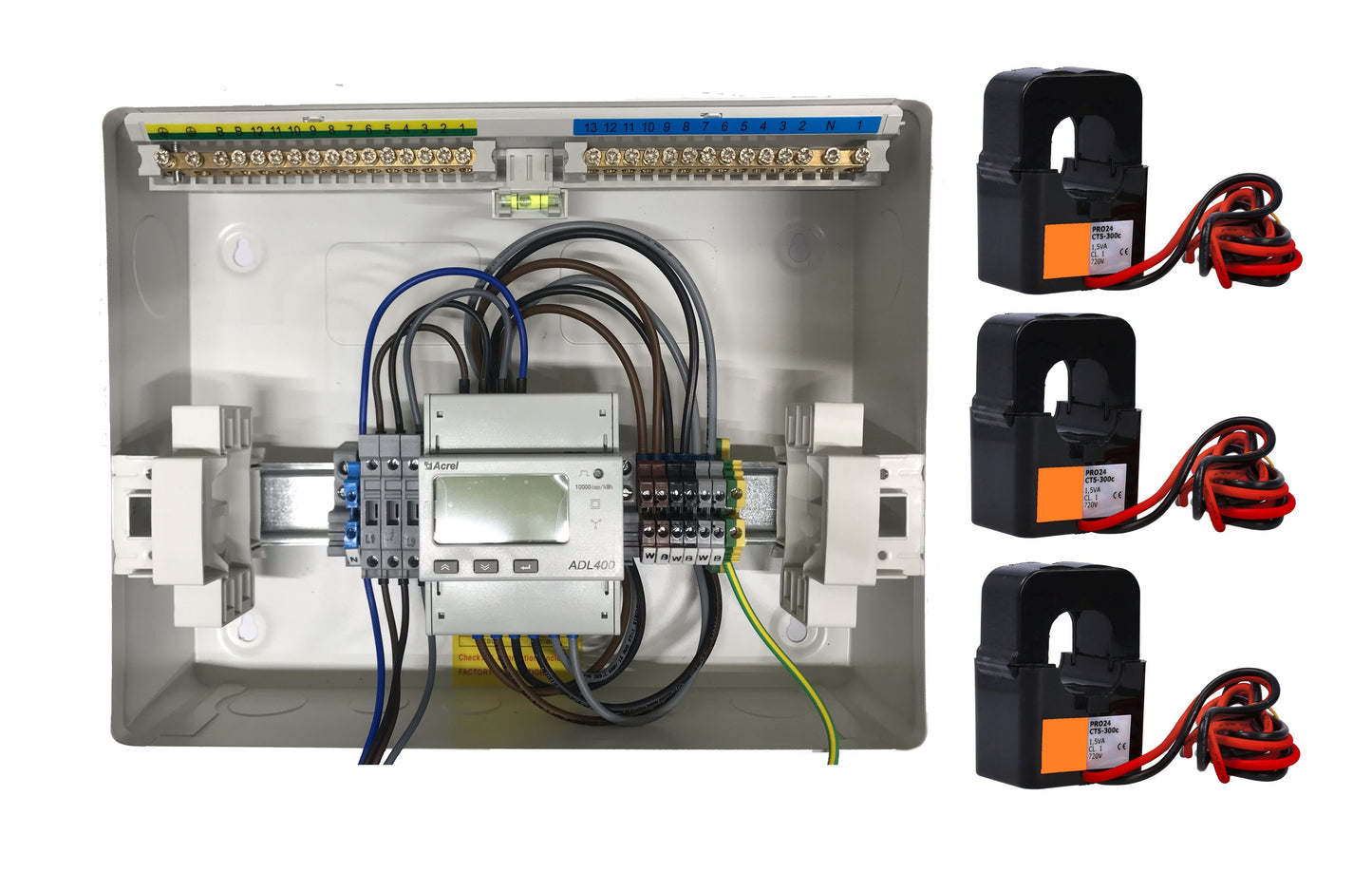

• 3 x Split Core CTs – 100/5 24mm aperture
• CT links, voltage reference and earthing terminals
• 1m of 1.5mm stranded blue, brown, black & grey cable & 1m of 2.5mm stranded earth cable

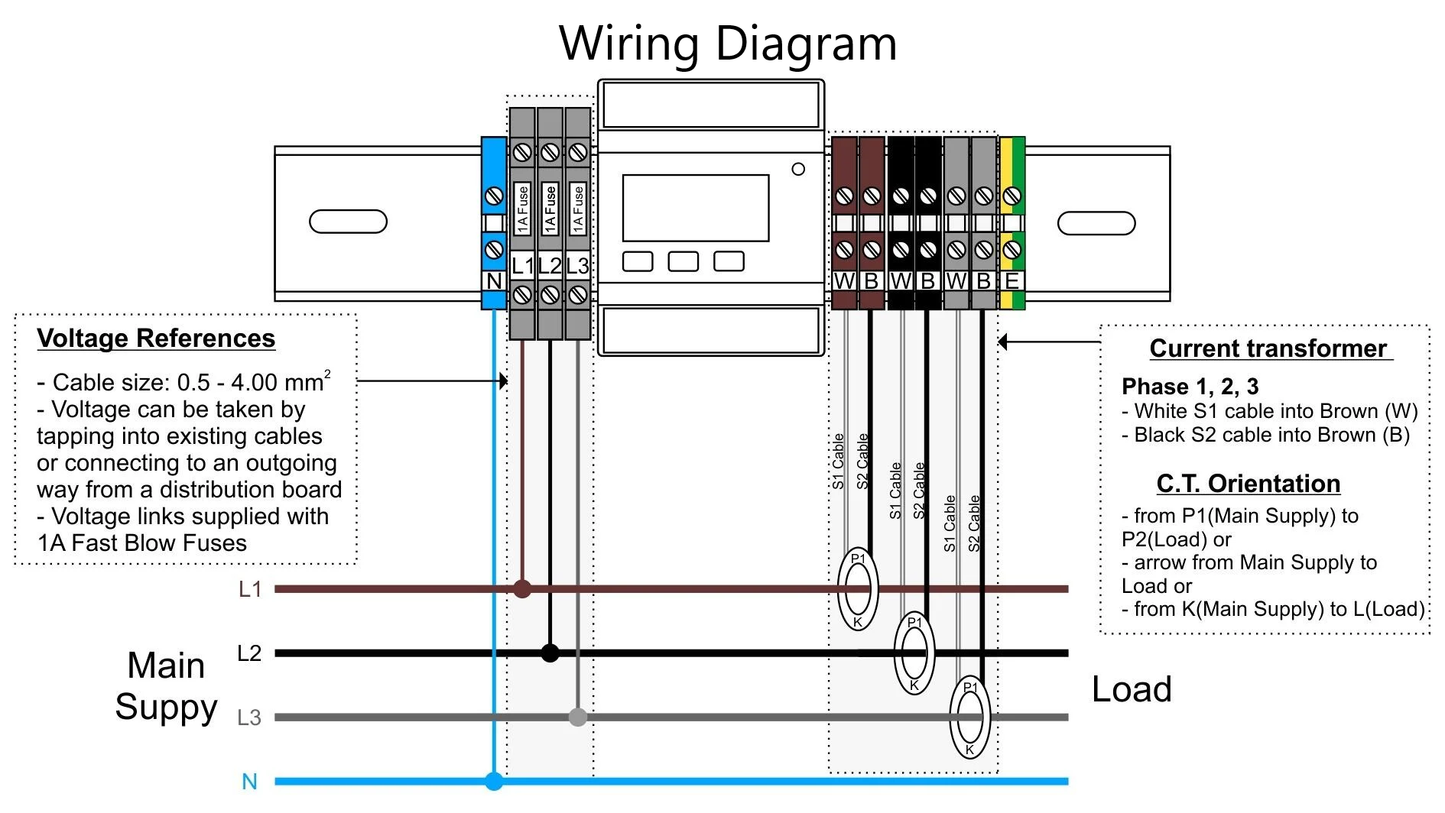

100A 3 Phase DIN Rail Metering Kit ensures quick and easy installation, ideal for retrofit applications. The 14-way metal enclosure features cable entry points on the top, bottom, sides, and back. Engineers pre-fit the necessary CT links, voltage reference, and earthing, all clearly labelled. The split core CTs clip around the supplies, saving time and reducing disruption.

This kit includes an MID approved single-tariff 3-phase meter, handling loads from 100A to 400A, with RS485 Modbus and Pulse output types. It comes with three 100/5 CTs with a 24mm aperture, providing comprehensive coverage.

Documents:

DATASHEET

METER MANUAL

METER MODBUS APPROVAL

METER MID APPROVAL CERTIFICATE
