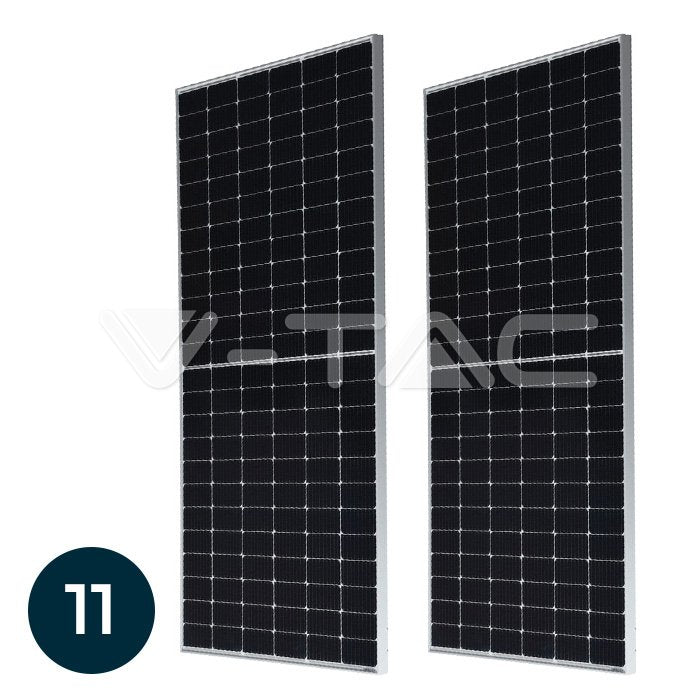

11 panels - 450W (4.95kW/SET) HALF CUT MONO SOLAR PANEL 36V 2094mmX1038mmX35mm
11 panels - 450W (4.95kW/SET) HALF CUT MONO SOLAR PANEL 36V 2094mmX1038mmX35mm
Regular price
£646.80 GBP
Regular price
£1,006.06 GBP
Sale price
£646.80 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Price for 11 panels
450W (4.95kW/SET) HALF CUT MONO SOLAR PANEL 36V
TIER 1
Dimensions: 2094mmx1038mmx35mm
VIEW DECLARATION OF CONFORMITY
- HALF-CUT TECHNOLOGY: Unique circuit design to reduce temperature heat spots;
- SIGNIFICANTLY AVOIDING HEAT SPOT: The unique circuit design to reduce the temperature heat spot significantly, so that to reduce the power loss and then increase the output of modules;
- LOWER COST: Increasing power generation can reduce the cost per kilowatt-hour
- EXCELLENT PERFORMANCE OF PID RESISTANCE: The performance of PID resistance (Potential Induced Degradation) passed the standard of TUV Nord.
- UP TO 12 YEAR WARRANTY: PRODUCT MATERIAL & WORKMANSHIP
- 25 YEAR WARRANTY: LINEAR POWER OUTPUT
Specifications
Electrical Data
Current
- Maximum Power Current(Imp): 10.85;
- Short Circuit Current(Isc): 11.60±3%;
Wattage
4.95kW/SET
Voltage
- Maximum Power Voltage(Vmp): 41.50;
- Open Circuit Voltage(Voc): 49.30±3%;
Capabilities
IP Rating
Junction box: IP67/IP68 3diodes
Working conditions
-40°C to +85°C
Product Data
Order code
11553
Product code
VT-450
Item Weight
330 kg
Item Volume
1,8217
Brand
V-TAC
Warranty
12 years product warranty / 25 years linear warranty for productivity
