30mA 2 pole RCD

RCD's

​

Available in two or four pole

Rated current(A): 25 40 63 80 100A

Rated voltage 240/415V AC

Rated frequency: 50/60Hz

Rated residual operating current I ▲ n(mA): 30, 100

Rated residual non-operating current: 0.51 ▲ n

Rated conditional breaking current Inc: 6000A

Rated conditional residual breaking current I ▲ c: 6000A

Tripping duration instantaneous tripping ˂ 0.1s

Residual tripping current range: 0.5I n~I ▲ n

Electro-mechanical endurance:4000 cycles

Connection capacity Rigid conductor up to 25mm²

Connection terminal screw terminal

Pillar terminal with clamp

Fastening torque 2.0 Nm

Installation: On symmetrical DIN rail 35mm

Panel mounting

WRC225-030 25A 30ma 2 pole RCD

WRC240-030 40A 30ma 2 pole RCD

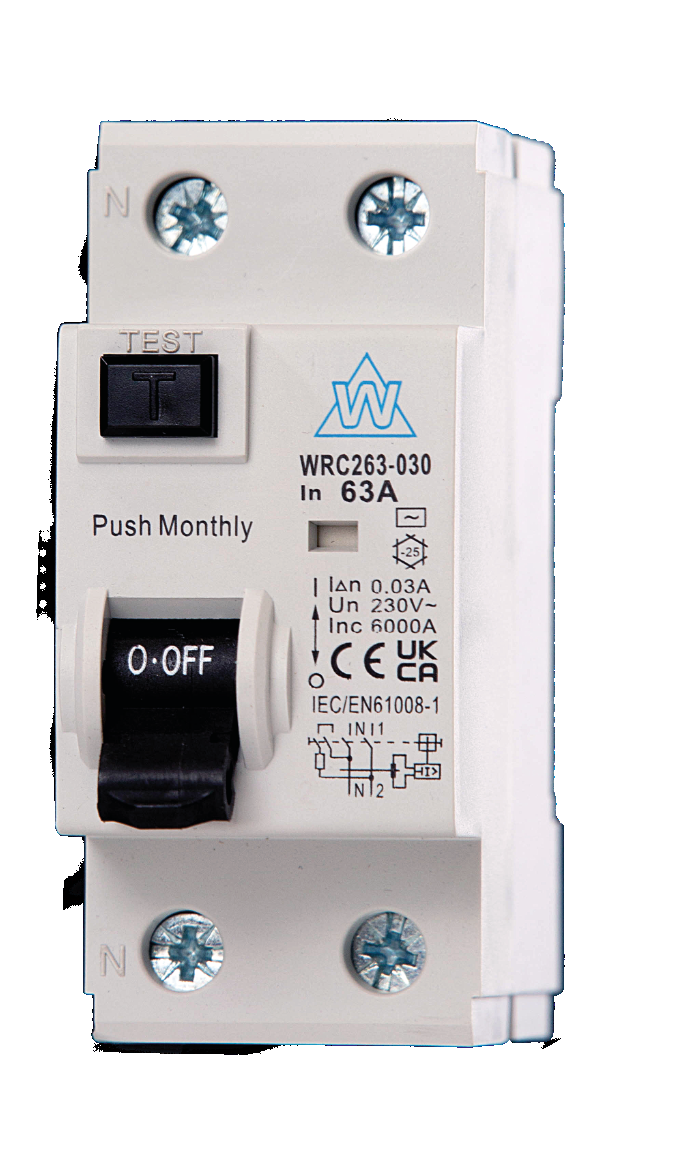

WRC263-030 63A 30ma 2 pole RCD

WRC280-030 80A 30ma 2 pole RCD

WRC2100-030 100A 30ma 2 pole RCD
