50kW Hybrid Inverter and 60kW Battery IP20 Indoor PV Set Three-Phase Hybrid 22022
50kW Hybrid Inverter and 60kW Battery IP20 Indoor PV Set Three-Phase Hybrid 22022
Regular price
£26,100.00 GBP
Regular price
Sale price
£26,100.00 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
The PV Set includes:

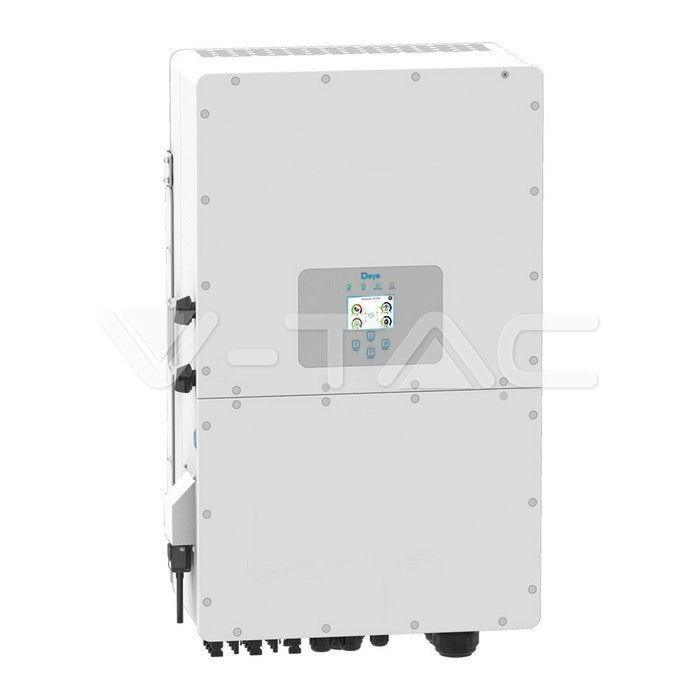

- 50kWh Hybrid Inverter Three Phase SKU: 11861 x 1 pcs;

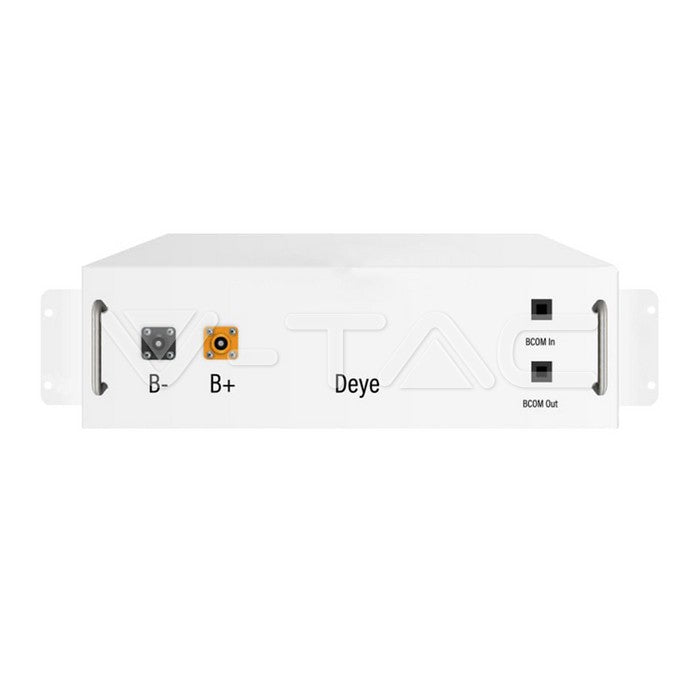

- Battery module: 5.12kWh LiFePO4 Battery SKU: 11862 x 12 pcs

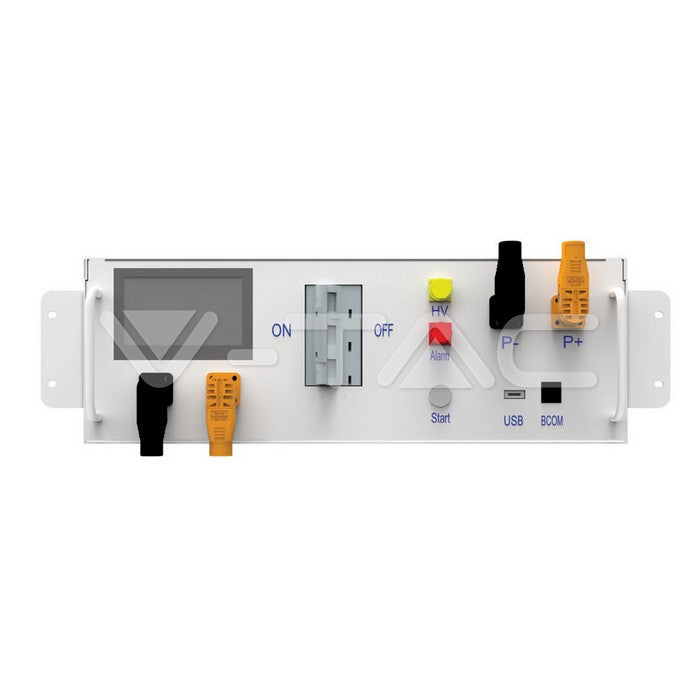

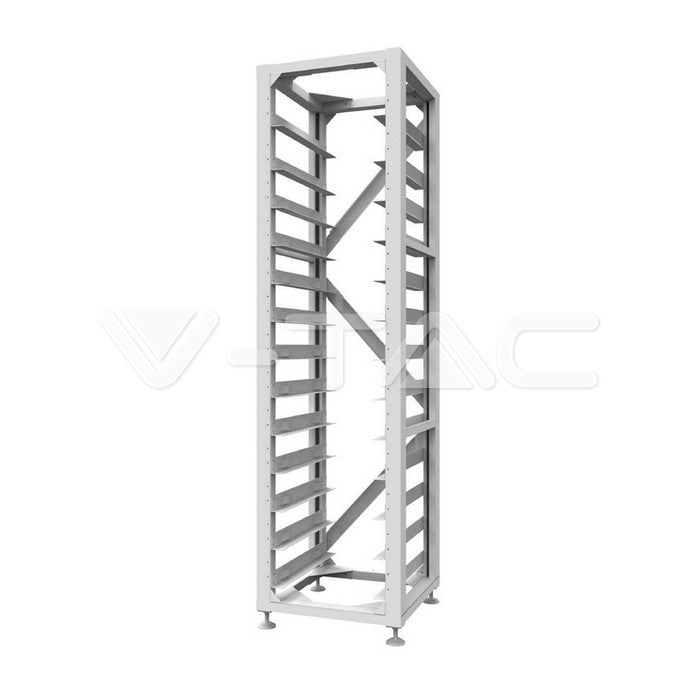

- Mounting Rack, Control box and Accessories
VIEW:
Specifications
Electrical Data
Wattage
- Battery System energy: 61.44kWh;
- Each Battery: 5.12kWh;
- Max. Input Power Inverter: 65000W;
Current
- Inverter:
- PV Input Current: 36+36+36+36A;
- Max. PV ISC (A): 55+55+55+55;
Voltage
- Inverter Rated Input Voltage: 600V;
- Inverter Full-load DC Voltage Range: 450-850V;
- Battery module Working Voltage: 538 ~ 691V;
Frequency
50/60Hz
Capabilities
IP Rating
IP20
Working conditions
- Inverter: ~-40~60( >45℃ derating);
- Battery: Charge 0～55℃ / Discharge -20℃～55℃;
Dimensions
Size

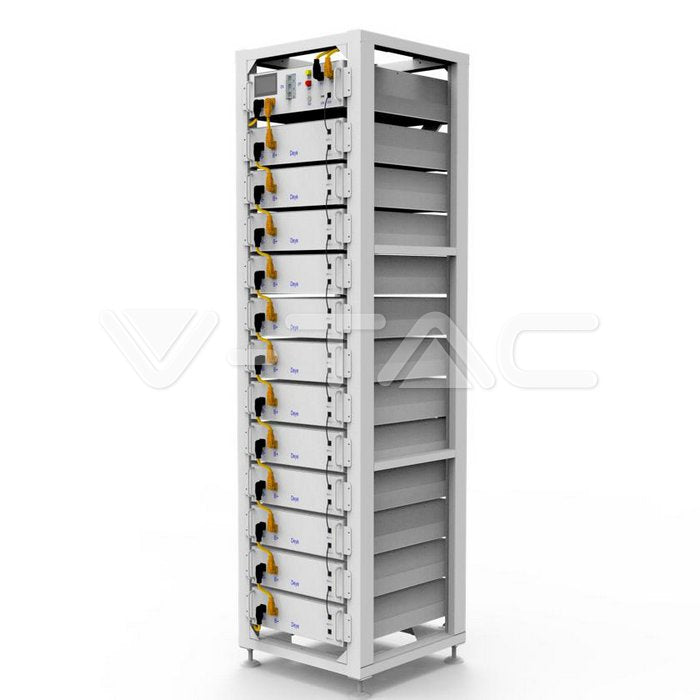

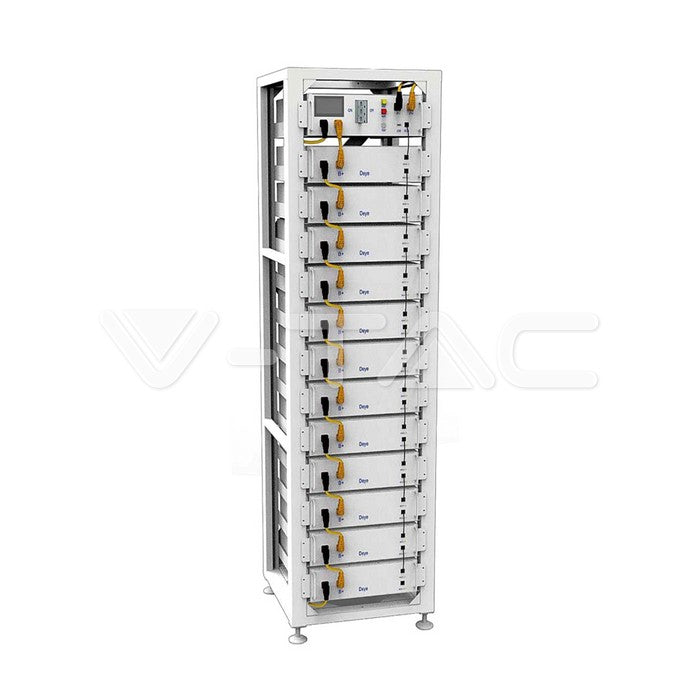

- 589x590x2240 Battery Module and Rack;
- 440x570x133 Each Battery;
- 527x894x294 Inverter;
Product Data
Order code
22022
Item Weight
- The total weight (12 battery modules, 1 rack) 628 kg;
- Weight of each battery module/battery rack 44 kg and 85 kg;
- 100 kg Inverter;
Certificates & Standards
Certification
Battery module CE/IEC62619/ UN38.3
Additional
Release Date
18.12.2023
Brand
V-TAC
Warranty
10 years
