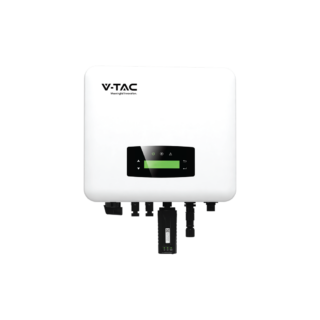

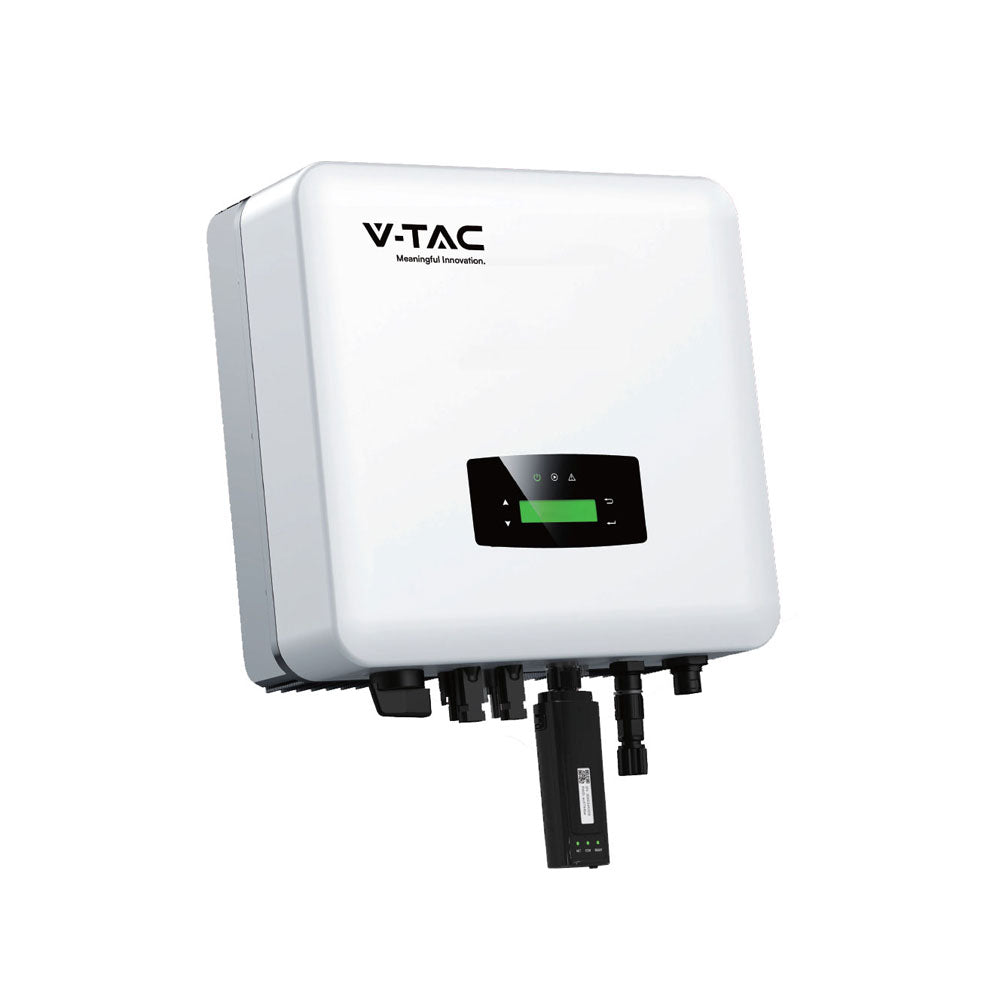

5KW Single Phase On-Grid Solar Inverter with Wi-Fi - IP65 - VT-6607005

Designed to transition fluidly between solar power and the grid without the need for battery storage, automatically drawing from the grid when solar energy is limited. IP65 rated, suitable for indoor and outdoor use. Can be monitored and managed using the Solarman Smart app. Must be fitted by a qualified installer.

• Works with - iOS App - Android App
• Wall-Mounted
• IP65
• MPPT Voltage Range: 70-550V
• Aluminium & Steel Construction
• 5 Year Manufacturer's Guarantee (T&Cs Apply)
• Internet Connection Required for smart app use

Experience reliable and efficient solar energy conversion with the V-Tac 5kW On-Grid Inverter (11832). Boasting a robust set of safety features, this inverter ensures the protection of your solar PV system and enhances its overall performance.

With PV Reverse Polarity Protection, PV Insulation Resistance Detection, and Anti-Islanding Protection, this inverter safeguards against various electrical faults and hazards, ensuring the safety of your system and property.

Featuring AC Short Circuit, Over Current, and Over Voltage Protection, as well as Residual Current Detection and Over Temperature Protection, this inverter offers comprehensive protection against common electrical issues, minimising the risk of damage and downtime.

Equipped with Surge Protection and an Integrated DC switch, this inverter provides additional layers of safety and convenience. The Smart IV Curve Scanning functionality enables efficient fault diagnosis, while Quick Arc Fault Circuit Interruption enhances system reliability.

With optional WiFi monitoring capabilities and an IP65 rating for outdoor use, this inverter offers flexibility and convenience in monitoring and maintenance, making it an ideal choice for residential and commercial solar installations.

VIEW DATA SHEET

KEY FEATURES

• IP65 Rated
• Communication Interface: RS485 / WiFi / Wire Ethernet / GPRS (optional)
• Max. DC Power ( W ): 5400
• Max. DC Voltage ( V ): 600
• Colour / Finish White

Additional Information

• Dimensions (H x W x D) 358 x 360 x 142mm
