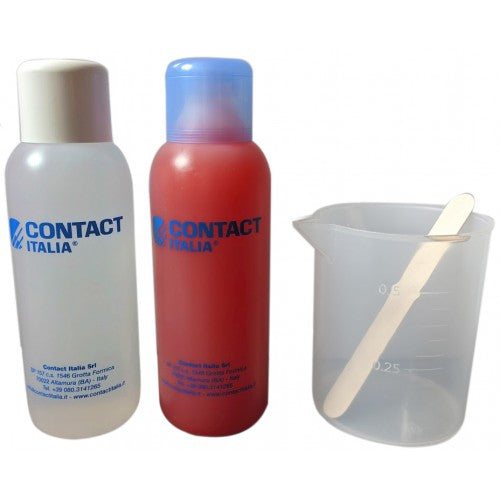

Bi-Component transparant Polymer Insulating Gel - 2 x 500ml Gel, 1 x Mixing Jug. Pot life :- 10min. Cross-linking time = less then 30min. Mixing ration in weight 1:1

Pot life : 10 minutes. Cross-linking tme < 30 minutes. Mixing ratio in weight 1:1. Linear shrinkage after catalysis < 0.1. Viscosity component A:500 Mpa. Viscosity component B:500 Mpa. Storage temperature from 5° to 30°. Dielectric strength > 20kV/mm. Dielectric constant 2.85. Volume resistivity 5.60x1013cm. Thermal conductivity < 0.2 W/mK. Norms: CEI EN 60439-1 CEI EN 60529 Compliant to EC directive 67/548/EEC

Due to shelf life restrictions, we're unable to accept these products back for return.

Technical specification

• pot life at 25°C: 5 minutes

• operating temperature: from -60°C to 200°C

• dielectric strength: > 23 kV/mm

• thermal conductivity: < 0,2 W/mK

• dielectric constant: < 5

• volume resistivity: > 2x1015 Ω x cm

• viscosity mixture 23°C: 1600 mPa

• cross-linking time 25°C: < 10 minutes

• storage temperature: from -5°C to +35°C

Advantages • ecological and no toxic

• isolating and auto-sealant

• re-enterability

• fast cross-linking

• low-viscosity

• no exothermic reaction

• no expiration date
