CED Axiom IP65 Rotary Isolator 40A 4-Pole 18.5KW
CED Axiom IP65 Rotary Isolator 40A 4-Pole 18.5KW
Regular price
£18.49 GBP
Regular price
£61.73 GBP
Sale price
£18.49 GBP
Unit price
per
Tax included.
Couldn't load pickup availability

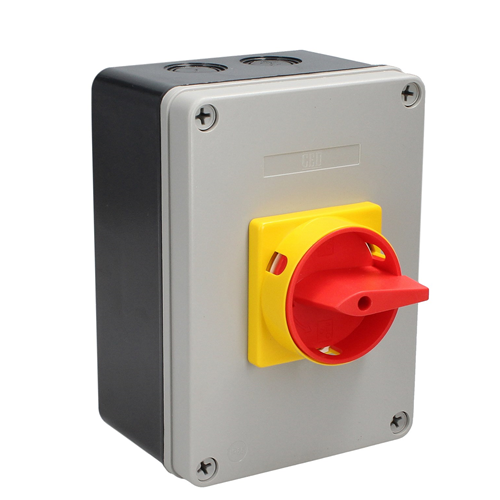

Product Summary
The Axiom Industrial range of 3 Poles + 1Auxiliary Rotary Isolators includes 415 moulded & sheet steel units from 25 up to 125Amp, plus 32 & 63Amp Heavy Duty die cast aluminium options. Enclosures have 2 knockouts on either side & come with a padlock facility. Products are IP65 rated, CE IEC 947 & BS EN60947 approved.
Product Features
3P + 1Aux, IP65 (weather proof) 440v - 50Hz ABS Polycarbonate enclosure
Padlock facility to lock in an off position, preventing the switch being used by unauthorised persons
Knockouts - 2 x 25mm on each side
Colour - Handle Red/Yellow for main emergency switch, Enclosure - Dark Grey, Body - Light Grey
Standards & Approvals - BS EN60947, IEC947-1-3, CSA, RU, UL, CE
Technical Specification
| General Information | |
| Applications | Domestic, Commercial, Industrial |
| Approvals/Certifications | CE, UKCA |
| Barcode | 5027825900587 |
| Body material | Polycarbonate |

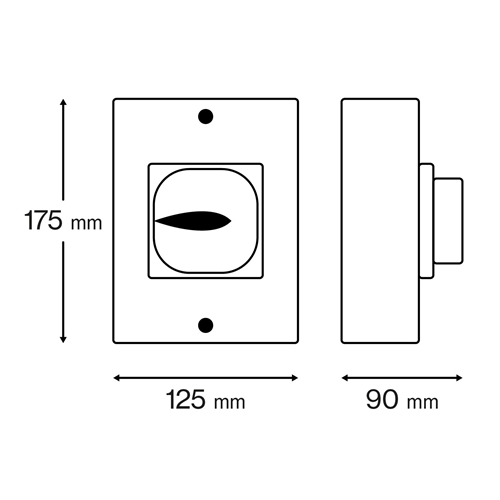

| Dimensions (mm) | 175*125*90 |
| Fixing Centre (mm) | 107 x 86 |
| Frequency (Hz) | 50/60 |
| Ingress Protection (IP) | IP65 |
| Input Voltage (Hz) | 415 |
| Load (Amp) | 40 |
| Number of Knockouts | 4 x 25mm |
| Number of Poles | 3P + 1Aux |
| Product Colour/Finish | Grey |
| Standards | BS EN60947, IEC947-1-3 |
| Warranty Period (Years) | 1 |
| Weatherproof (Y/N) | Y |
| Weight (g) | 750 |
