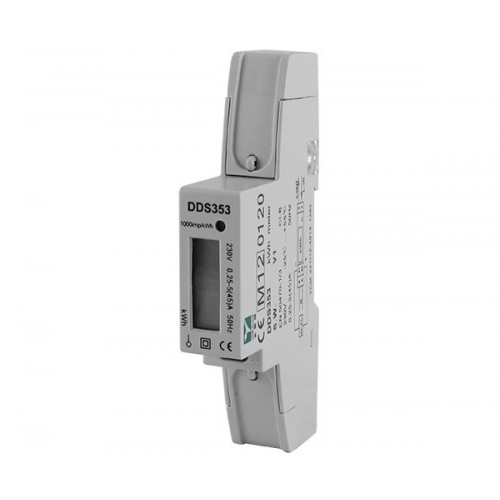

DDS353 MID Certified 45A kWh Meter

The DDS353 is the ideal choice for cost-effective sub-billing with MID Certification, easy housing (1-DIN) and on-screen kWh display (LCD).

As standard the meter's Pulse rate is set to: 1000 imp/kWh

• Fire retardant casing
• DIN rail mounting
• MID B approved

Product Specification

• MID approved

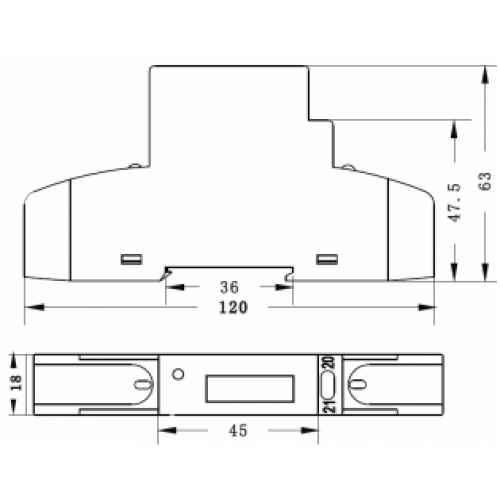

• Housing: 1-DIN
• Voltage: 230V ± 20%
• Current: (5) 45A
• Accuracy Class: B
• Standard: EN50470-1 / EN50470-3
• Frequency: 50Hz ±10%
• Impulse Constant: Red LED 1000imp/kWh
• Display: LCD 5+2= 99999.99kW
• Power Consumption: ≤8VA ≤0.4W
• Temperature Range: -25⁰C……+55⁰C
• Pulse Width: 80mS
• Max Terminal Wire: 12mm₂
