Product Features:
- MID B&D Approved - 0120/SGS0221
- Single Phase (1P2W)
- 45A AC (45A Direct Connected)
- 230V AC
- Mbus Communication
- Dual Pulsed Outputs

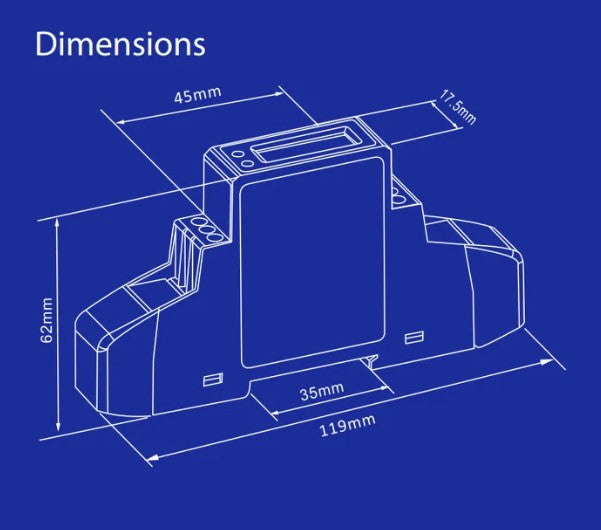

- 1-DIN Module

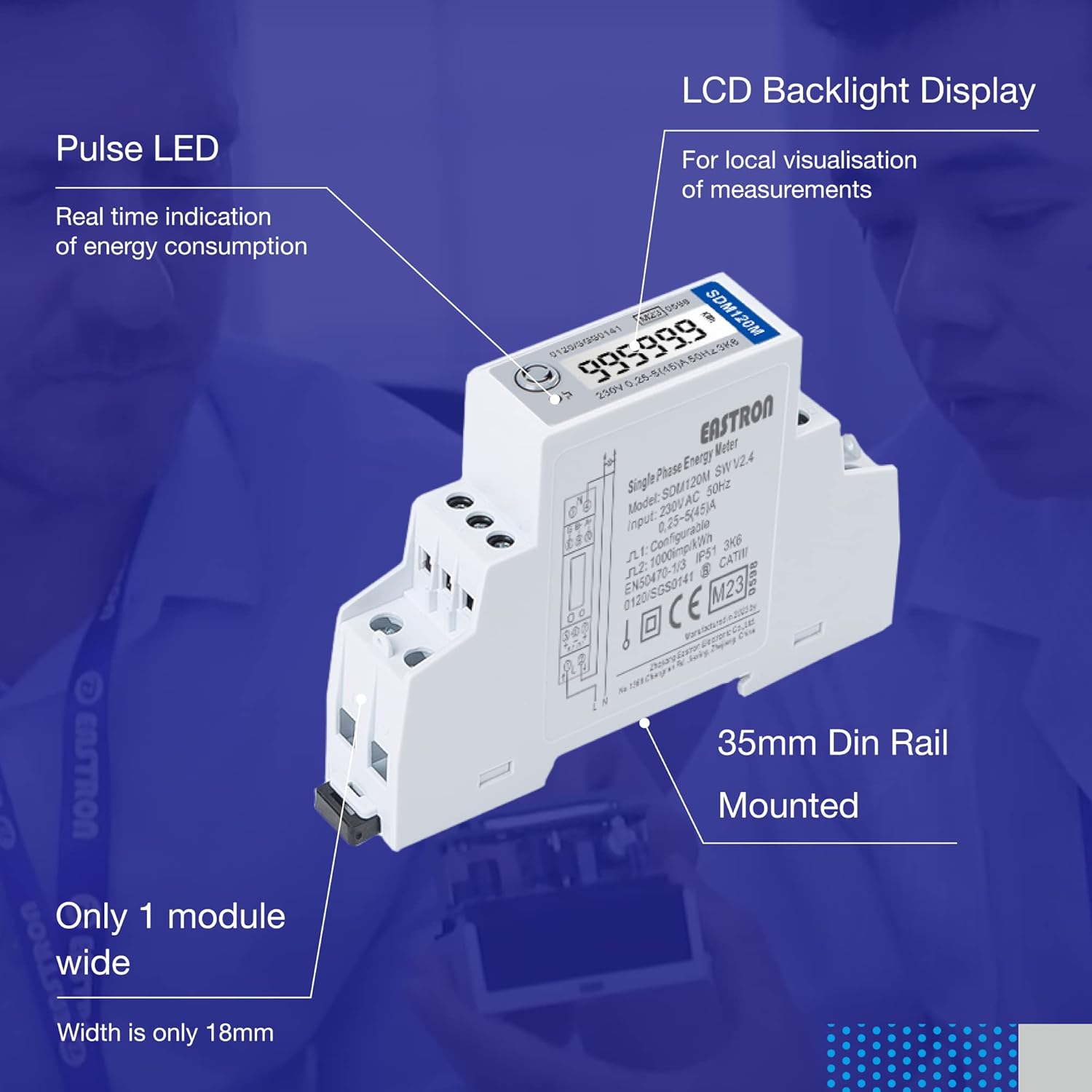

- Digital Backlit Display
- Multi-functional parameters

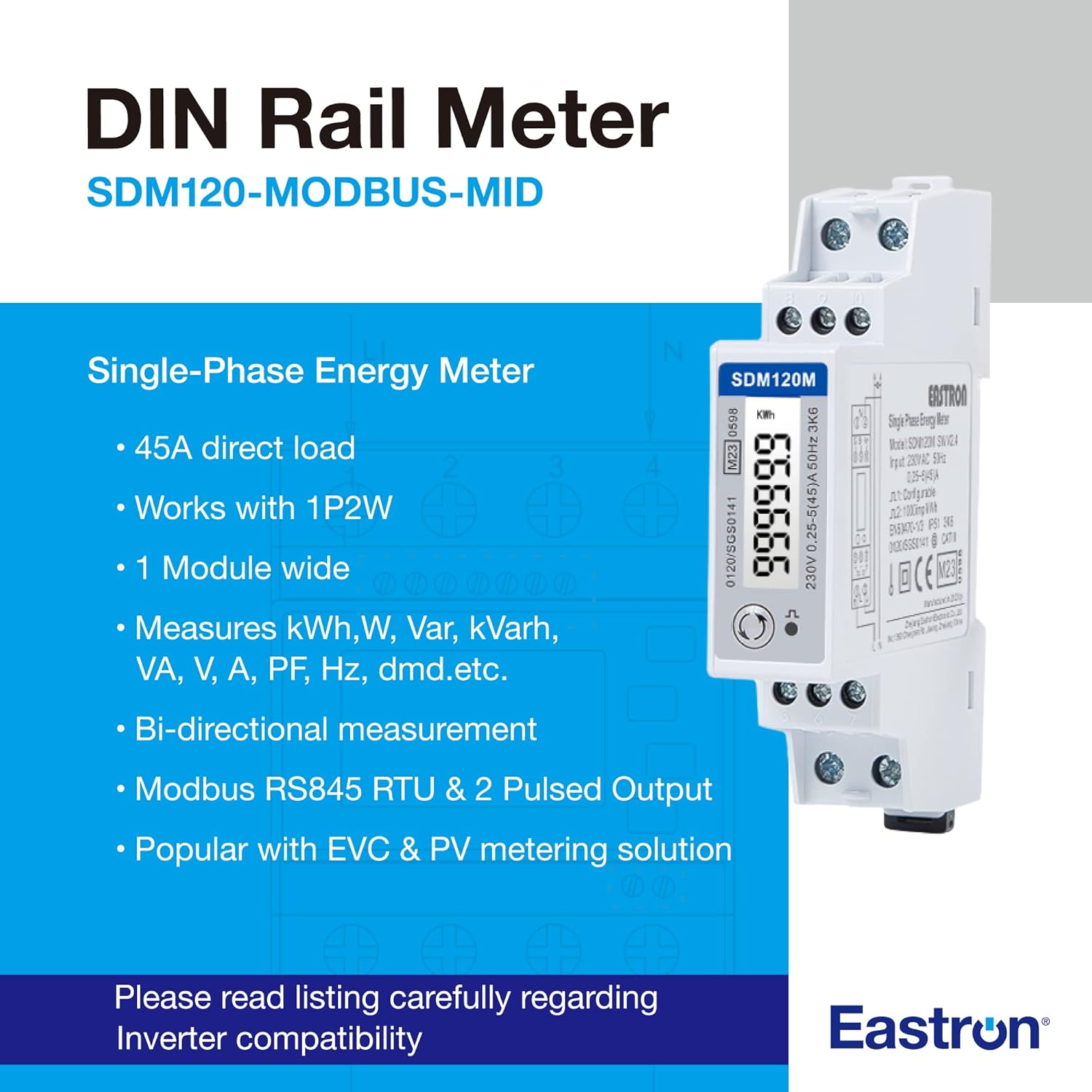

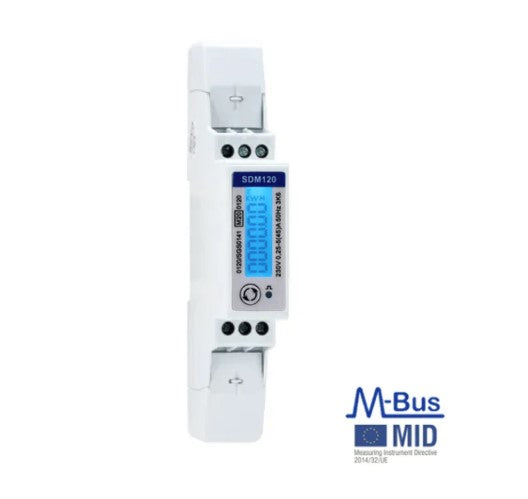

The SDM120-MBUS-MID is a Single Phase Digital Power Meter that measures a range of parameters in a 45A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to how cost-effective it is. Unlike other meters available on the market, this model has Pulse and MBUS communications built-in, eradicating the requirement of purchasing extra modules. The SDM120 Series is housed in a 1-DIN (17.5mm) case meaning it is compact and space-saving. This specific model measures Voltage, Current, Power Factor, Active Power, Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy.
We have invested in MID B&D certification for the SDM120-MBUS-MID, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. Since April 2016, MID-approved Meters are the only legal option when the measurements are to be used for billing. All of our MID-approved meters are certified here in the UK.
