Eastron SDM72D-MID Three Phase Four Wire Din Rail MID Energy Meter - displaying 3p4w Characteristics Such as Power, and Active and Reactive Energy - Pulse Output 2 1000imp/kWh

Eastron SDM72D-MID Three Phase Four Wire Din Rail MID Energy Meter - displaying 3p4w Characteristics Such as Power, and Active and Reactive Energy - Pulse Output 2 1000imp/kWh

£58.80 GBP
£78.00 GBP £58.80 GBP
Sale Sold out
Tax included.

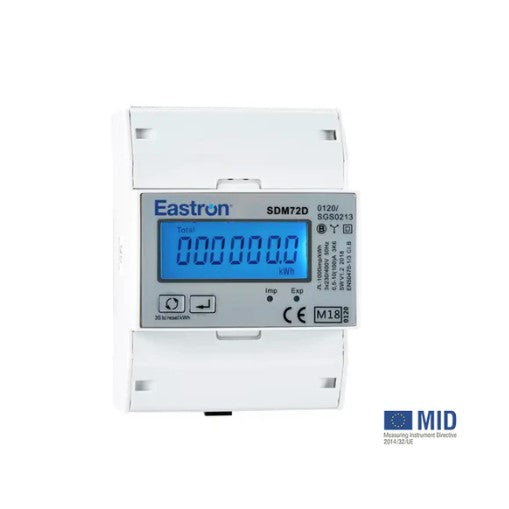

Eastron  SDM72D-MID

Three Phase Four Wire Din Rail MID Energy Meter

Displaying 3p4w Characteristics Such as Power, and Active and Reactive Energy - Pulse Output 2 1000imp/kWh

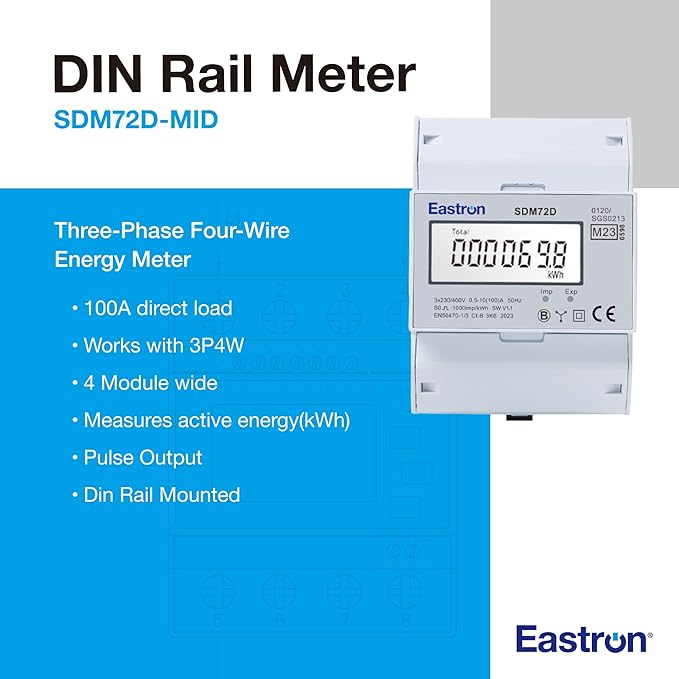

Product Features:

  • 100A Direct Connected
  • Three Phase
  • Total Active Energy (kWh)
  • 400V +/- 20% Measured Voltage
  • 1000imp/kWh Pulsed output
  • LCD Display 6+1= 999999.9
  • MID B+D certified

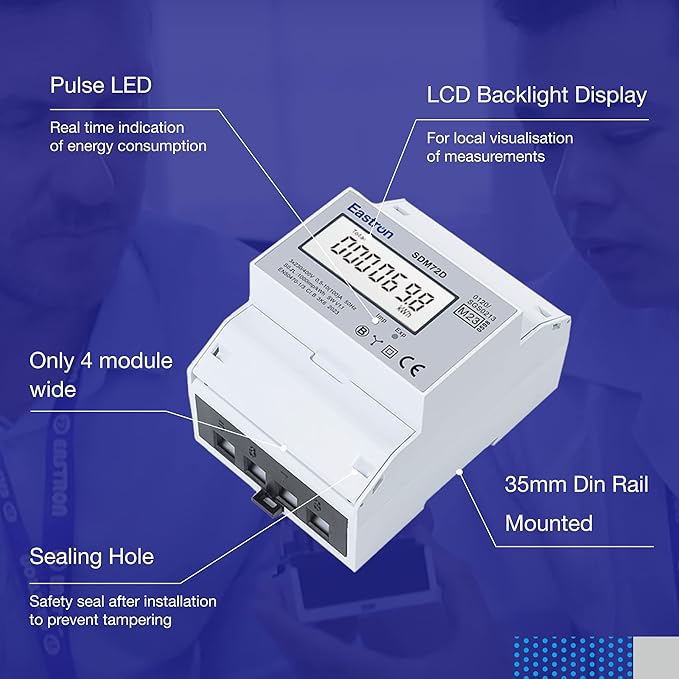

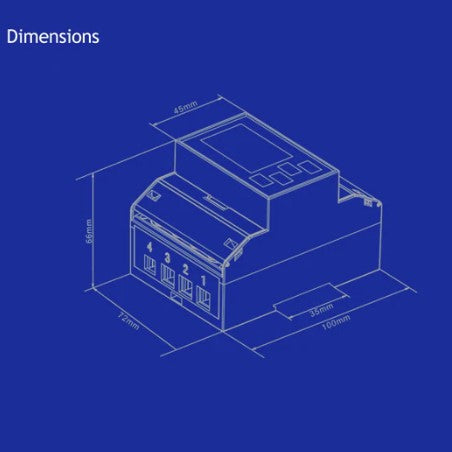

The SDM72D Digital Power Meter works directly connected to a maximum load 100A AC circuit. This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality. This certification allows this model to be used for any sub-billing applications. Unlike other alternatives, this meter is housed in a 4 Module DIN rail case, meaning it takes up very little space. The SDM72D measures and displays Total Active Energy and can be remotely monitored with a pulse collector.
