WCED IP40 CONSUMER UNITS

Name: WCED IP40 CONSUMER UNITS
Brand: Solartradesupply.com
SKU: WME4
Price: 23.19 GBP
Availability: InStock

£23.19 GBP

Sale Sold out

Tax included.

Size WME4 - 4 Useable Ways WME6 - 6 Useable Ways WME8 - 8 Useable Ways WME10 - 10 Useable Ways WME12 - 12 Useable Ways WME14 - 14 Useable Ways WME16 - 16 Useable Ways WME18 - 18 Useable Ways WME22 - 22 Useable Ways

Product variants

Quantity

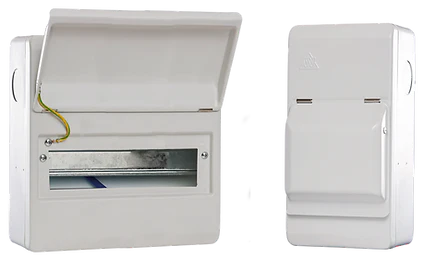

Metal consumer units are finished in white polyester powder coating. Multiple circular cable entry knock-outs (25 & 32mm) on top and bottom, 40mm on the sides and back plus larger rear slots.
Raised key holes for secure easy installation. Raised din rail improves cable routing. Supplied with neutral and earth terminal bars, neutral cable and pin style bus bar.

Part code:	Description	Dimensions (WxHxDmm)
WME04	4 way Enc	130x240x112
WME06	6 way Enc	160x240x112
WME08	8 way Enc	232x240x112
WME10	10 way Enc	232x240x112
WME12	12 way Enc	304x240x112
WME14	14 way Enc	304x240x112
WME16	16 way Enc	376x240x112
WME18	18 way Enc	376x240x112
WME22	22 way Enc	448x240x112
