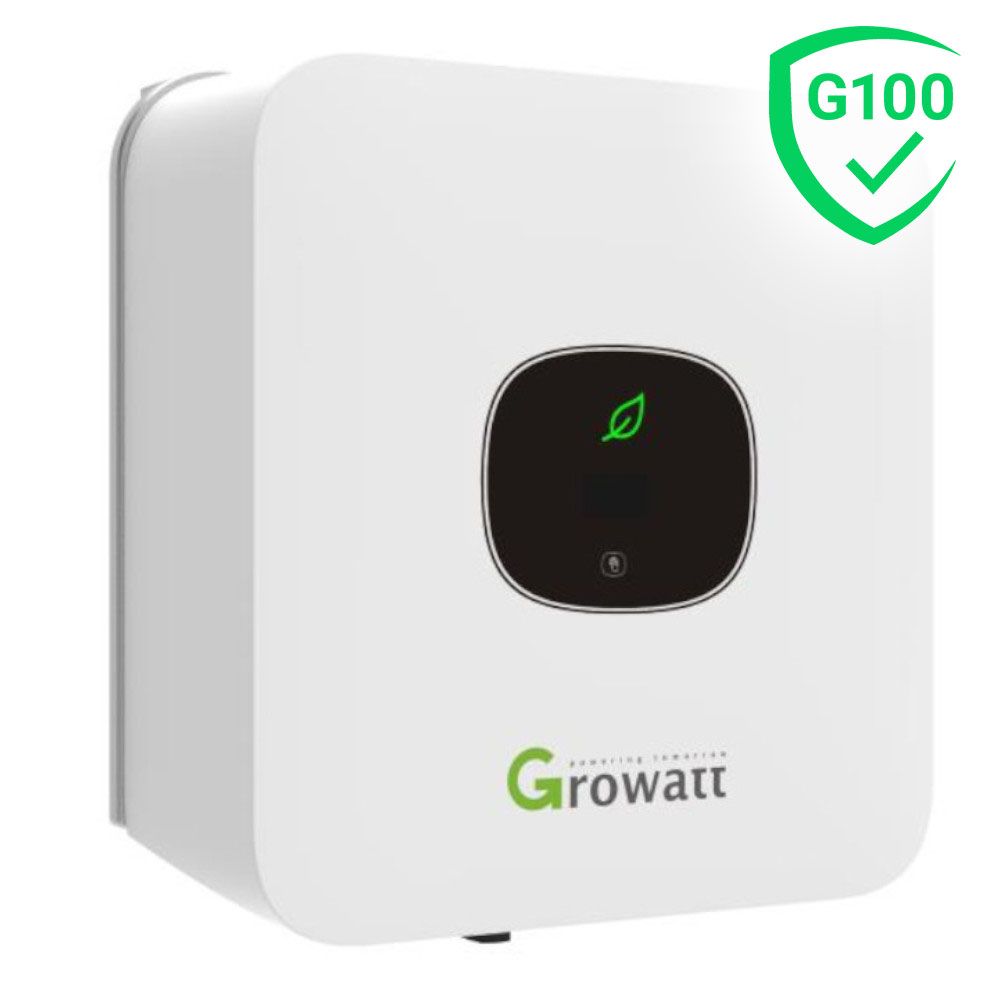

Growatt MIC 1500 TL-X 1 ph Inverter, 1 MPPT with DC and AFCI
The Growatt MIC 1500-X is a light and compact residential inverter. The maximum DC voltage is 500V, a start voltage of 50V. There is one MPPT with a maximum input of 13A and features a DC switch, surge protection, and an option for AFCI.
Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.
IMPORTANT: installers shouldn’t use CT to achieve anti reflux function for MIC750-3300TL-X inverters. Instead they should use the single phase Growatt meter.
Growatt has confirmed that although the use of CT is mentioned in the user manual, because issues have been found with this type of option, they decided to stop promoting CT for limitation to the grid altogether. Therefore, now they recommend the use of the Growatt Meter ONLY for that purpose.
KEY FEATURES:
- With DC Connection
- Maximum efficiency of 97.6%
- Compact design
- Touch key& OLED display
- Flexible monitoring options
- AFCI optional
- Protection degree: IP65
- Export Limitation
- 10-year warranty
| Brand | Growatt |
|---|---|
| Rated Power (W) | 1,500 |
| Max DC Power (W) | 2,100 |
| Inverter Phase | 1 |
| Total No. of Strings | 1 |
| No. of MPP Trackers | 1 |
| MPPT Voltage Range / Rated Input Voltage (V) | 50-500 |
| Start-up Input Voltage (V) | 50 |
| Max. Input Voltage (V) | 500 |
| Max. input current per MPPT | 13A |
| European Efficiency (%) | 97 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP65 |
| Depth (mm) | 138 |
| Height (mm) | 254 |
| Width (mm) | 274 |
| Product Weight (Kg) | 6 |
| Grid Connection Standards (G98/G99/G100) | G98, G100-2 |
| Warranty Period | 10 Years |
