IMO 16A / 25A DC Isolators 2-pole/4-pole

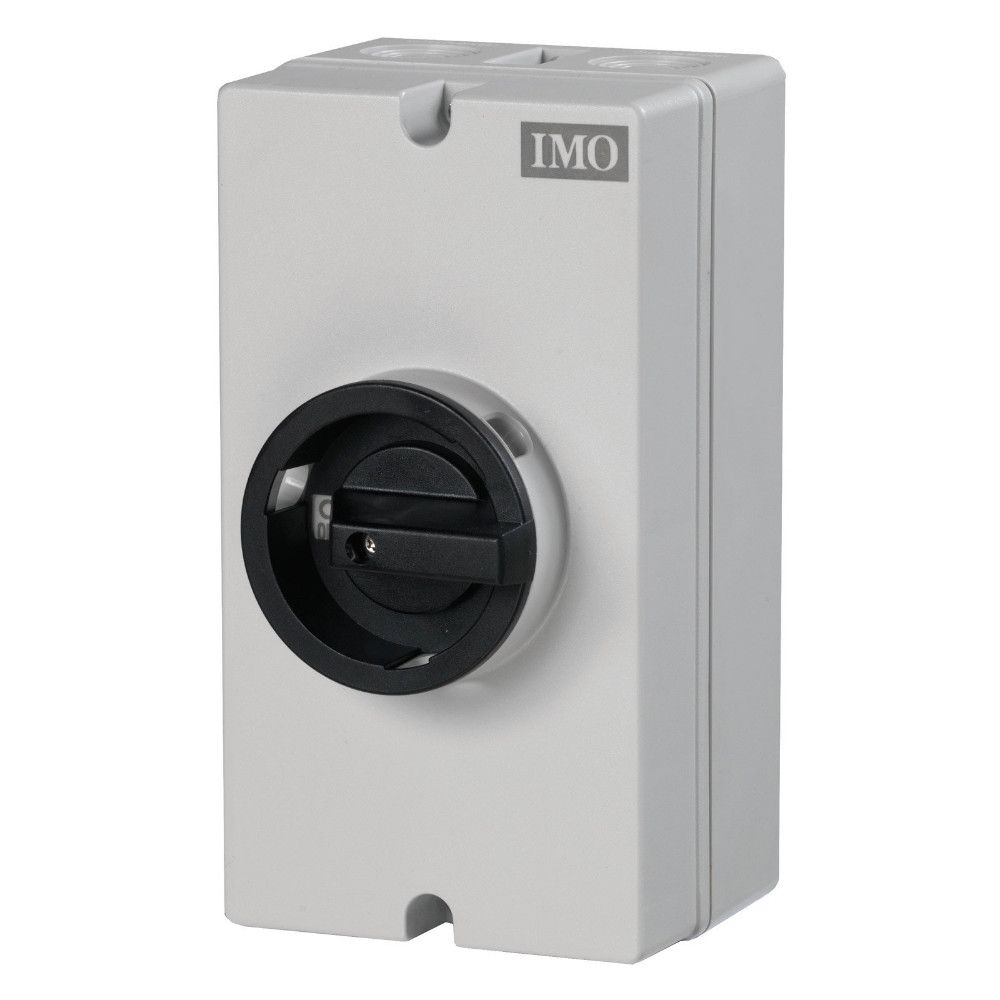

IMO 16A / 25A DC Isolator - IP66 Enclosed, 600/800 VDC

2 Pole (Single string) or 4 Pole (Two strings)

Chose amperage and number of poles from the options below

FEATURES:

• 2 Pole (1 string) / 4 pole (2 string)
• 16A 800 VDC or 25A 600 VDC
• IP66 Enclosure
• Grey Body with Black switch
• Switching times of less than 5ms
• IMO patented "Safelock" function
• Dimensions (mm):180x98x107

IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Part codes:

SI16-PEL64R-2 (16a 2-pole)

SI16-PEL64R-4 (16a 4-pole)

SI25-PEL64R-2 (25a 2-pole)

SI25-PEL64R-4 (25a 4-pole)
