IMO Stag AC Isolators 4-pole 20A / 32A / 40A / 63A / 100A

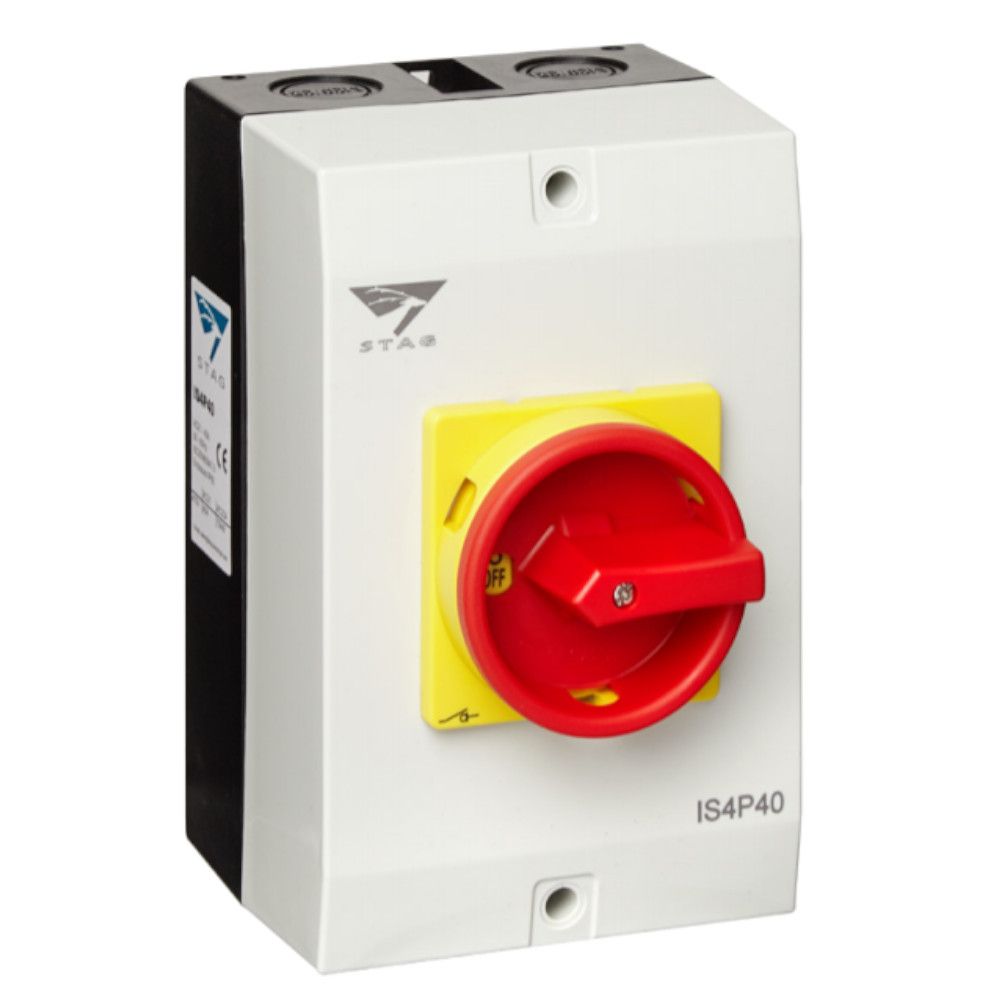

IMO Stag AC Isolator - 4 Pole IP65 Enclosed

Stag’s 4 Pole AC Isolator is made from high-quality flame-retardant materials, and sealed to IP65 rating, making it tough, durable and suitable for most applications.

With safety in mind, this isolator only opens in the OFF position and includes additional earth and neutral connections. The 4th pole can be used to switch a neutral as it is an Early Make Late Break. The isolator enclosures come with multiple gland knockout holes, making them a versatile option.

KEY FEATURES:

• 4 Poles
• 20A / 32A / 40a / 63A / 100A
• 230-440V
• IP65 Protection Rating (enclosure)
• EN 60947-3 Compliant
• Multiple Gland Knockouts
• Lockable Rotary Handle
• Flame Retardant
• External Mounting Points
• Additional Earth Connection
• Interlocked Enclosure Lid


Dimensions:

20A /32A - 125x100x85mm

40A / 63A  - 175x115x100mm

100A- 240x160x120 mm

Part codes:

20A - IS4P20

32A - IS4P32

40A - IS4P40

63A - IS4P63

100A - IS4P100
