IP40 Mini Metal Consumer Units
IP40 Mini Metal Consumer Units
Regular price
£9.05 GBP
Regular price
£21.99 GBP
Sale price
£9.05 GBP
Unit price
per
Tax included.
Couldn't load pickup availability

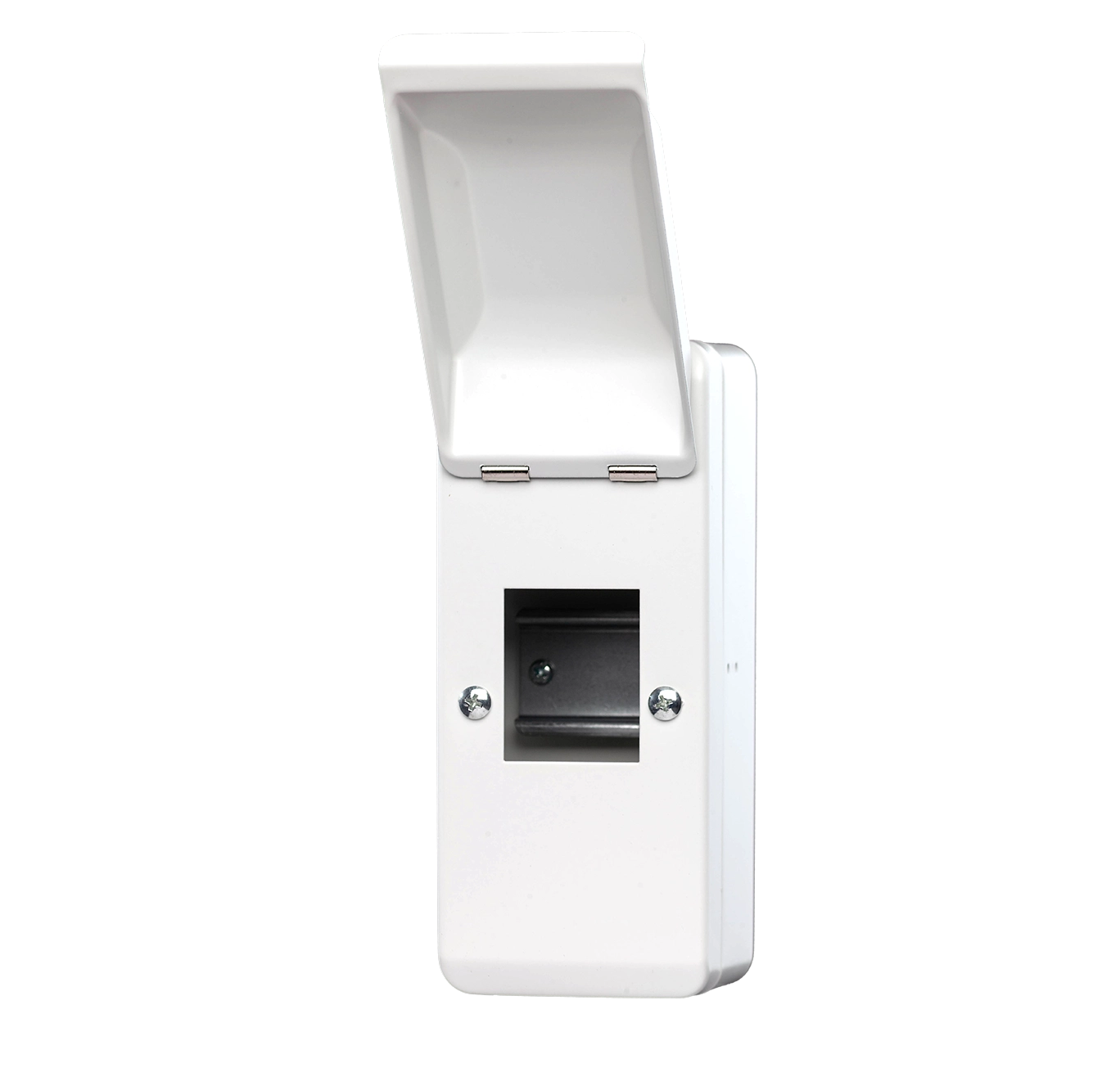

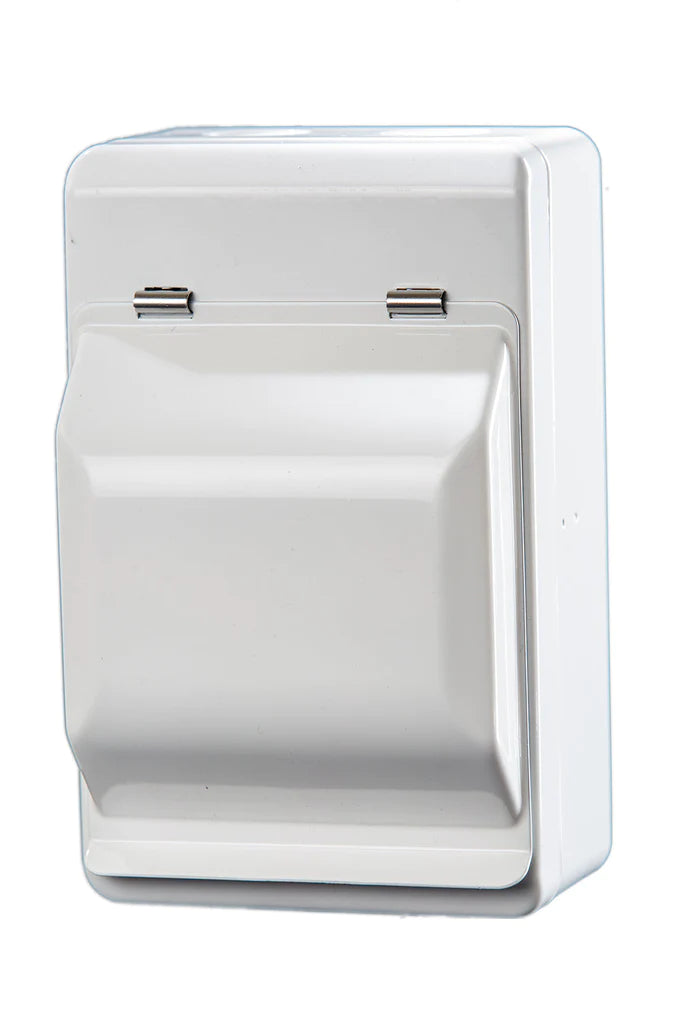

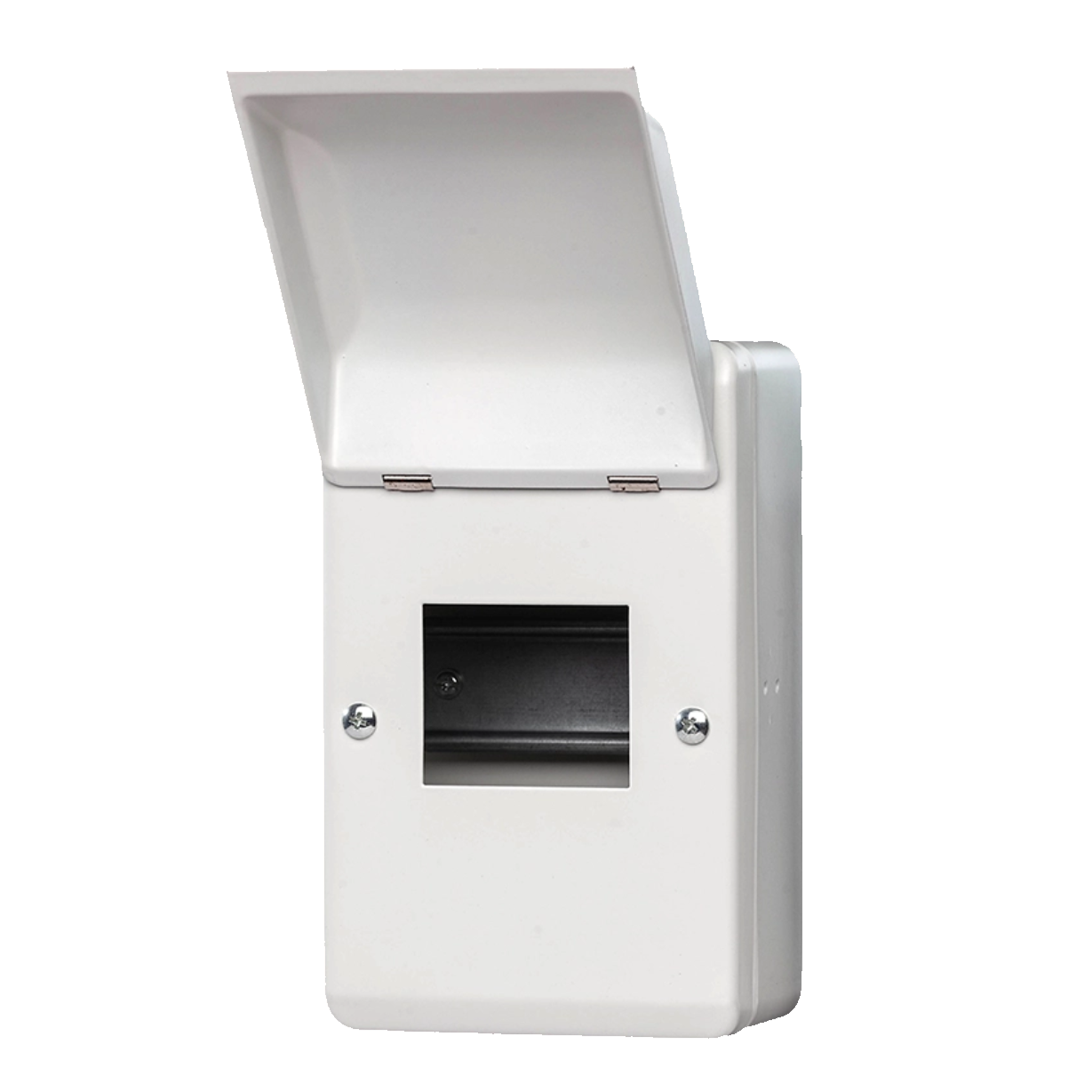

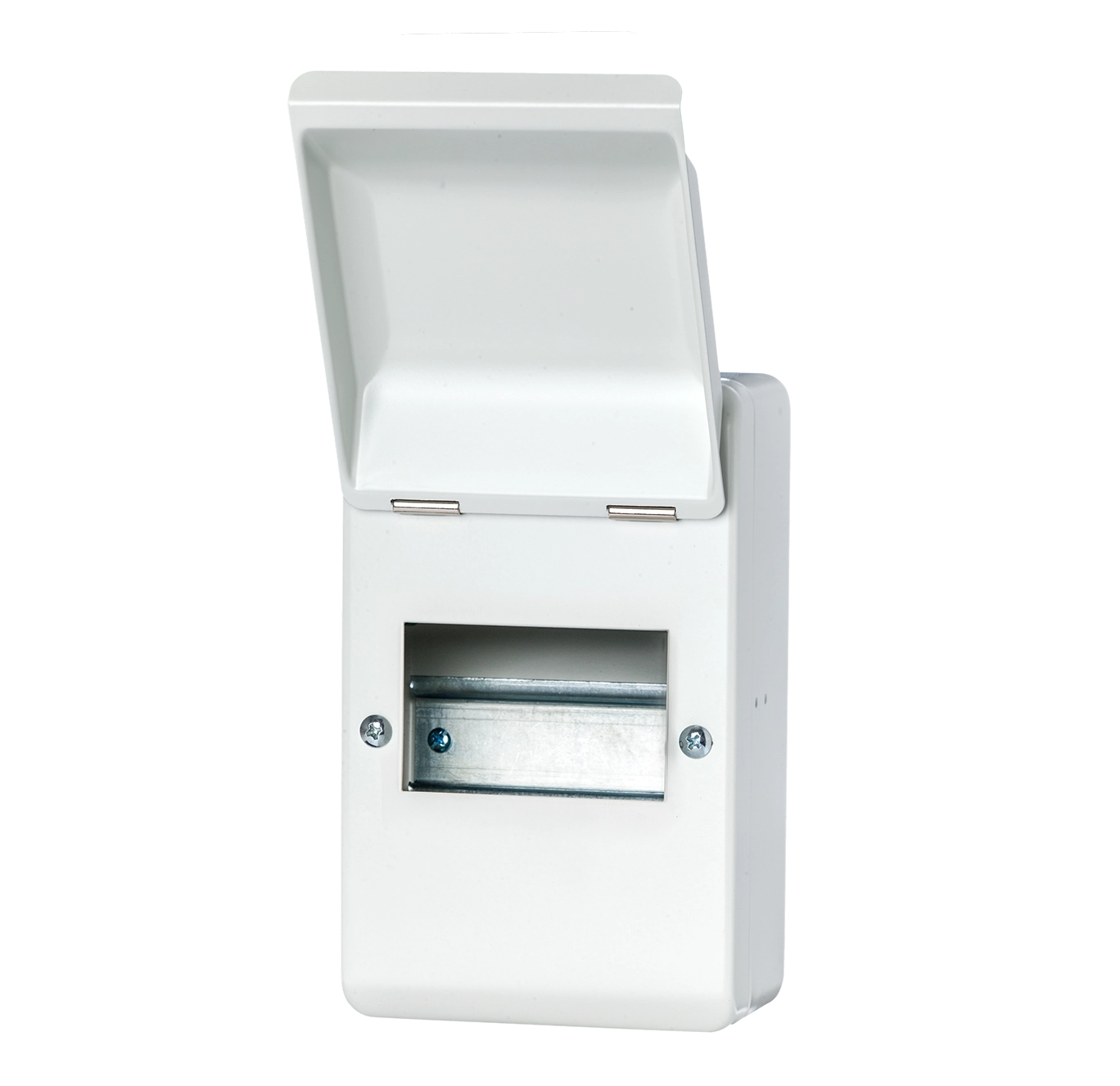

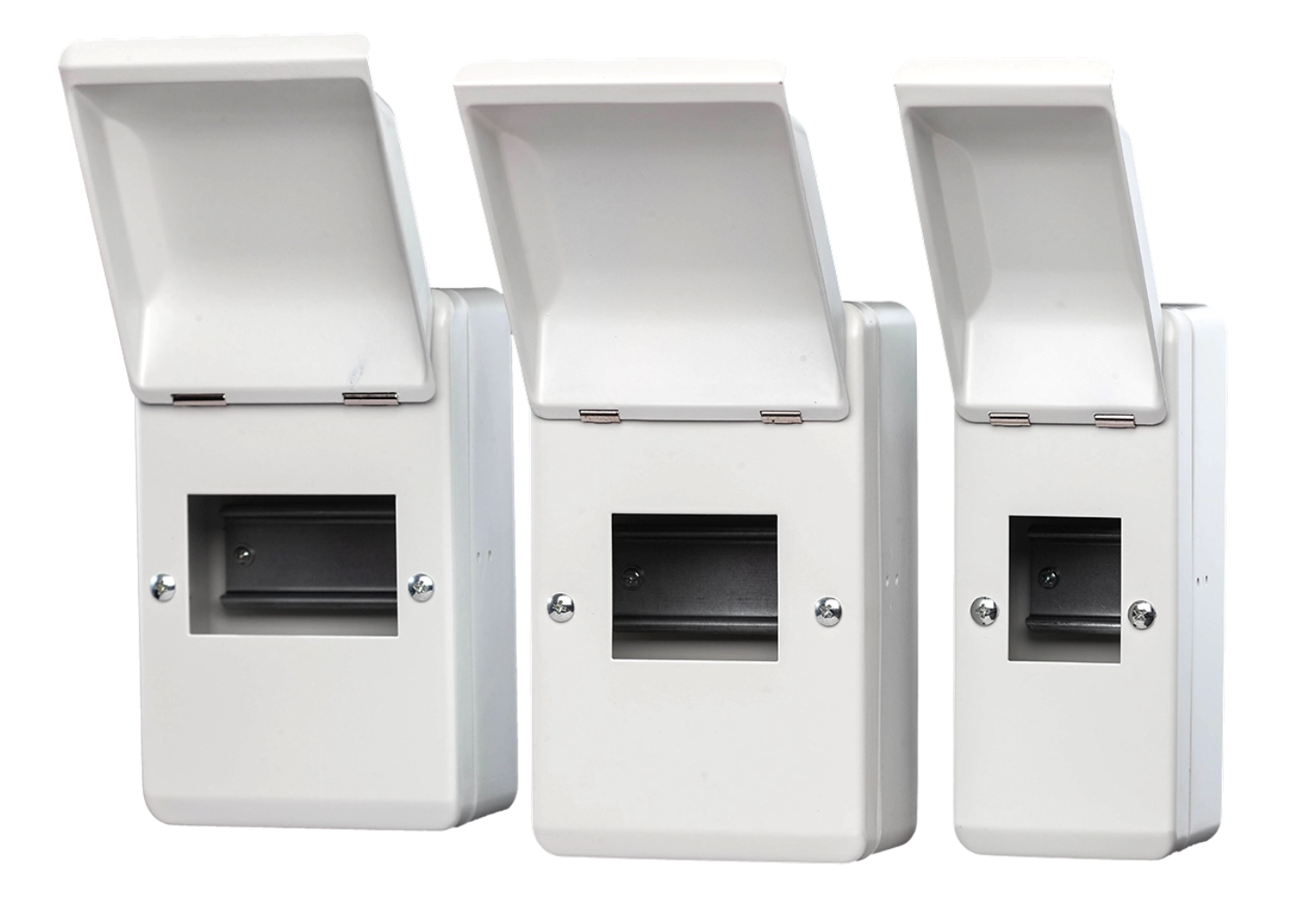

Fully enclosed metal construction body with drop down metal lid, 25/32mm circular cable entry knock-outs on the top and bottom. Raised key holes for secure easy installation.
Modern style finish in polyester powder coating, complete with din rail and earth terminal bar. Ideal for installing EV circuit protection in compact spaces.
230V/400V~IP 40 rated.
Recommended torque: 2.0Nm for earth terminal bar
Complies with BS EN 61439-3
Compatible with the full range of WCED RCBO's.

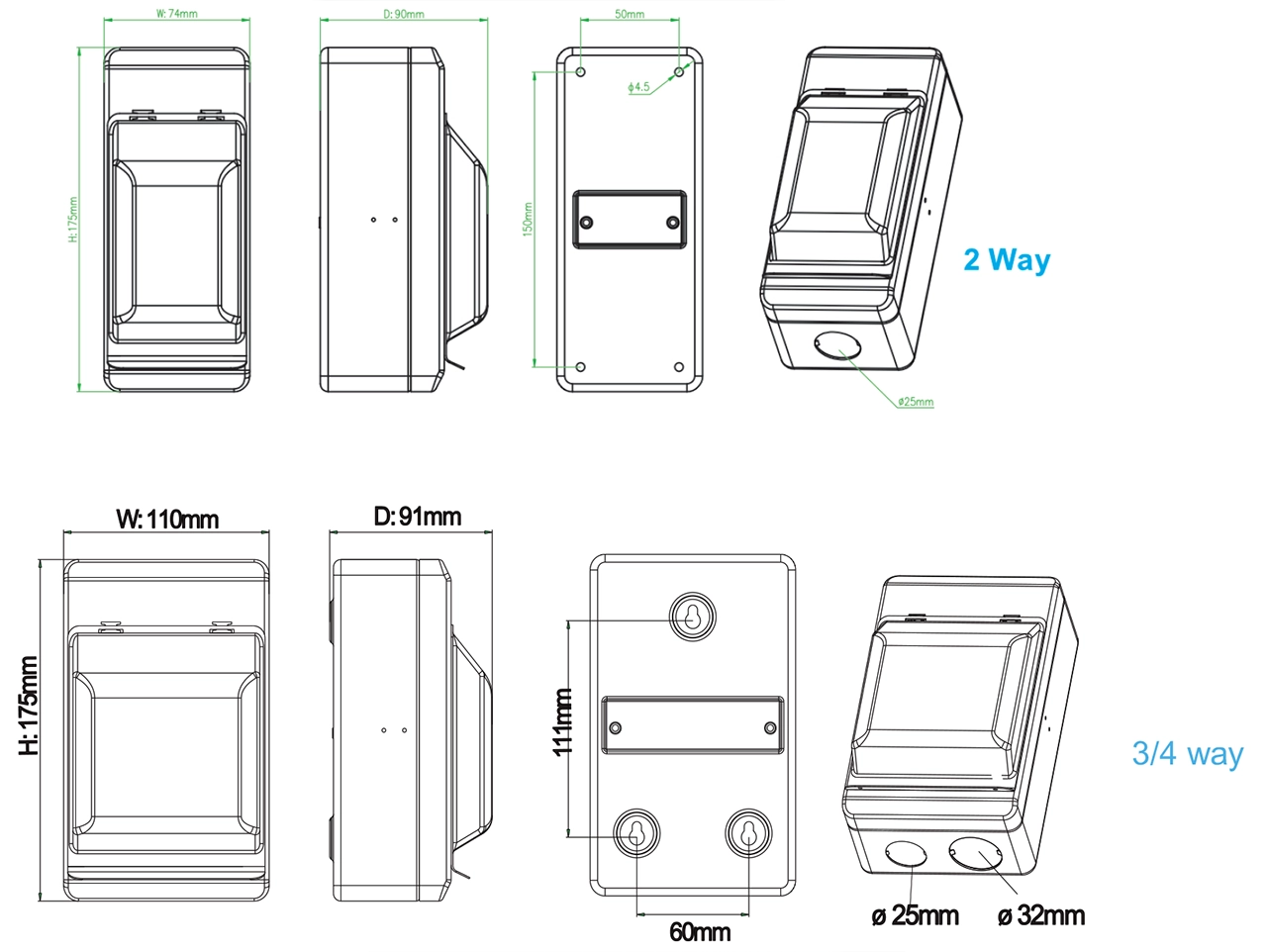

| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WME2L/25 | 2 way metal enclosure with lid | 74x175x90 |
| WME3L/32 | 3 way metal enclosure with lid | 110x175x91 |
| WME4L/32 | 4 way metal enclosure with lid | 110x175x91 |
| WME5L/32 | 5 way metal enclosure with lid | 110x175x91 |
