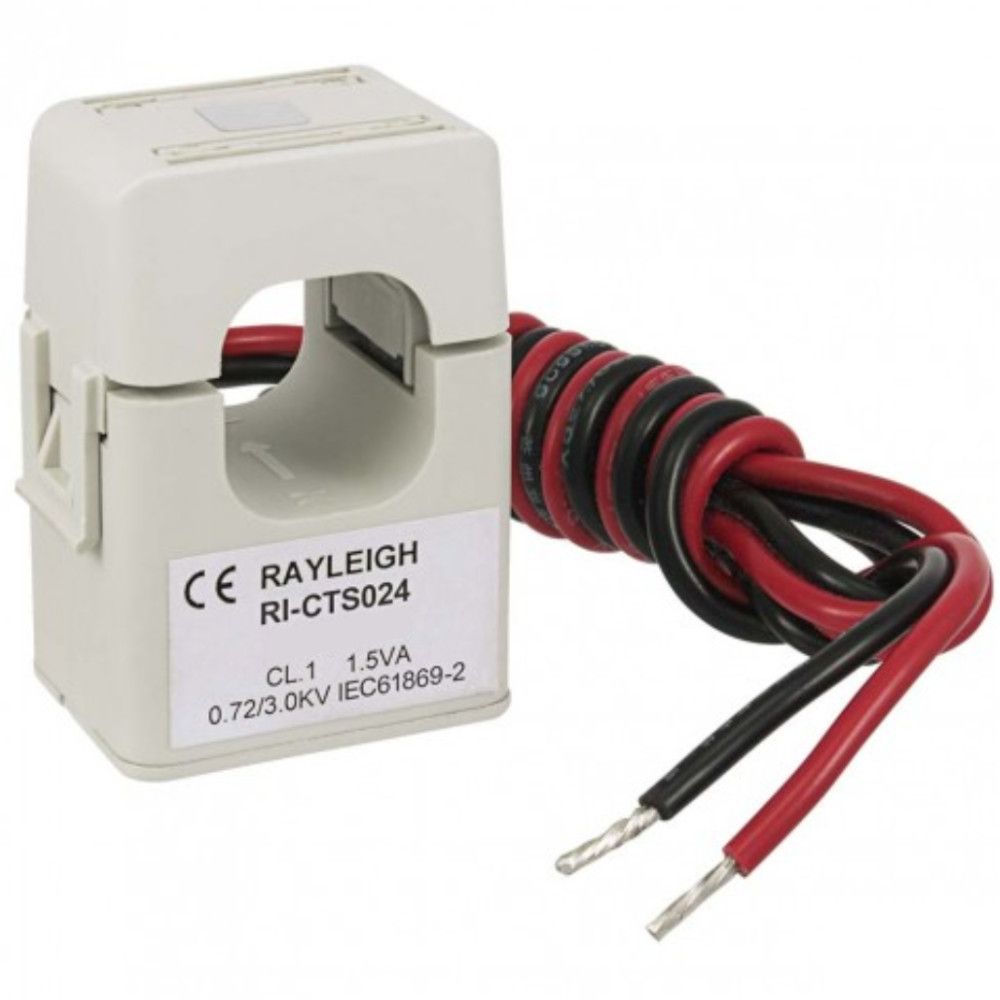

Rayleigh 200A Split Core Current Transformer, RI-CTS024, Single Phase
The RI-CTS024 Series forms part of a large family of split-core single phase moulded case current transformers from Rayleigh Instruments.
These transformers are suitable for monitoring current flow in commercial, industrial or utility applications. They are designed to connect any standard metering or relay product requiring a 5A or 1A output and are available with Primary current input ranges of 100A to 300A.
The RI-CTS024 Series has been designed for ease of installation into existing plants where removal of busbars or cable lugs is impractical. They also have clear markings moulded into the case to indicate the correct direction of primary current flow to minimise installation errors.
The Rayleigh 200A CT FEATURES:
- Ratio 200/5A
- Cable Aperture 24mm
- 50mm width
- Class 1.5VA C/W

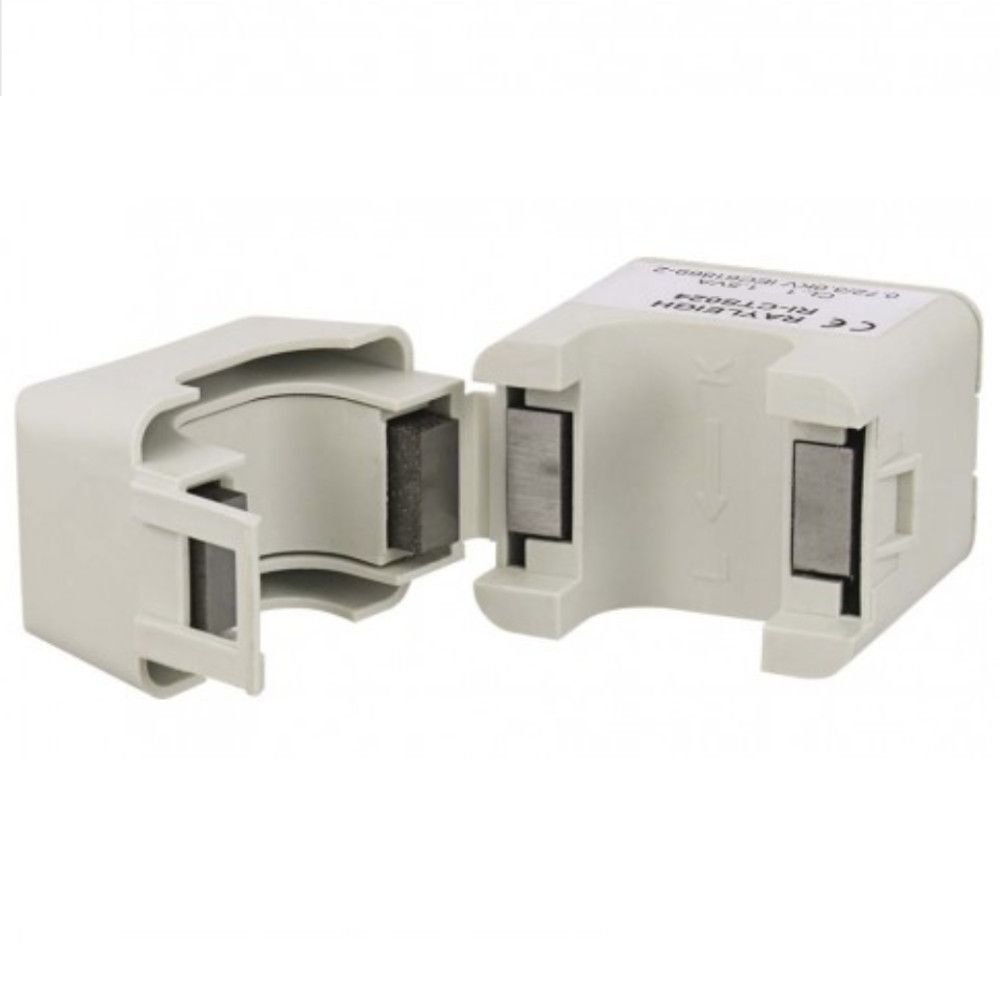

- Snap together housing
- Compact design
- 1 Metre of Cable
- Indication of primary current flow
- Colour: Light Grey
| Brand | Rayleigh |
|---|---|
| Accessory By Type | CT Clamps |
| Accessory Phase | Single Phase |
| Primary Current | 120A - 300A |
| Product Weight (Kg) | 0.25 |
