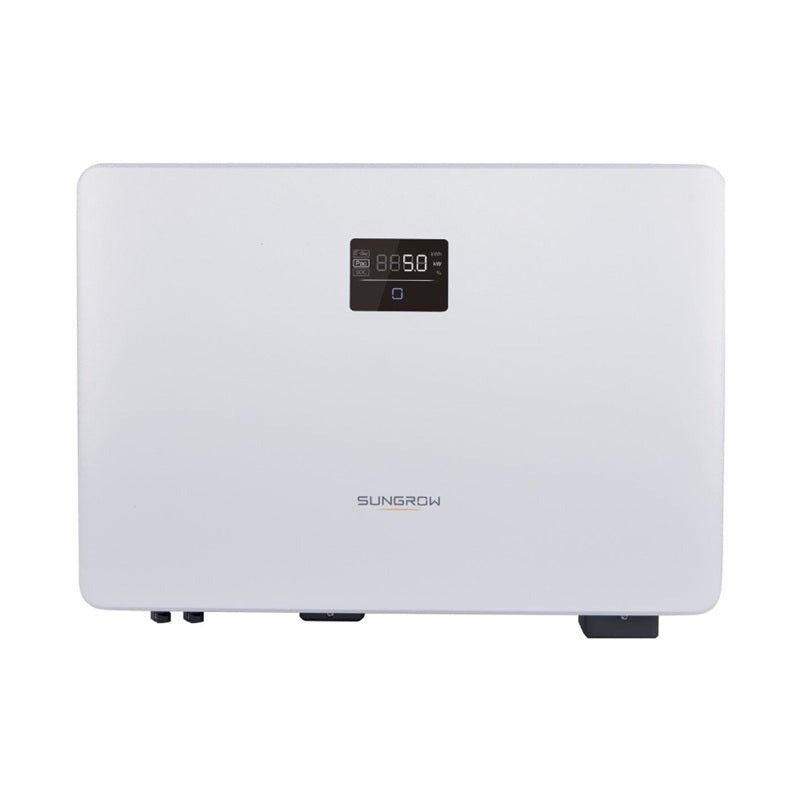

Sungrow 4kW Single Phase Hybrid Optimised Inverter - V13 (Compatible with Optimiser)

Sungrow 4kW Single Phase Hybrid Optimised Inverter - V13 (Compatible with Optimiser)

£934.80 GBP
£934.80 GBP
Sale Sold out
Tax included.

Sungrow 4kW Single Phase Hybrid Optimised Inverter - V13 (Compatible with Optimiser)

Sungrow Part No: ASH00117

Sungrow SHRS Hybrid Optimised Inverters range from 3.0kW-6.0kW, and are ideal for residential systems. They are suitable for both retrofitting and new installations..

Plug-and-play installation allows for a user friendly setup, while the lightweight and compact design are optimised for heat dissipation.

  • Dual MPP trackers
  • Maximum Input Current: 32A
  • Battery Voltage Range: 80V - 460V
  • European Efficiency: 97.0%
  • Compatible Sungrow SP 600S Optimiser
  • Built-in EMS with advanced customisation
  • IP65 protection
  • Built-in smart PID recovery function
  • Natural cooling
  • Communication: WLAN, Ethernet, RS485, CAN
  • Weight: 18.5kg
  • 10-year warranty
  • G99 / 100-2 Certified

VIEW DATA SHEET


Grid Connection Standards (G98/G99/G100) G100-2 or G99
Inverter Power Range (kW) 2.1kW - 4kW
Inverter Phase 1
Brand Sungrow
Rated Power (W) 4000
Max DC Power (W) 6000
Total No. of Strings 2
No. of MPP Trackers 2
MPPT Voltage Range / Rated Input Voltage (V) 40 - 560
Start-up Input Voltage (V) 50
Max. Input Voltage (V) 600
Max. input current per MPPT 16A
European Efficiency (%) 97.2
Integrated DC Switch Yes
Inverter IP Rating IP65
Depth (mm) 170
Height (mm) 340
Width (mm) 490
Warranty Period 10 Years
Product Weight (Kg) 18.5
