SURGE POWERBOX IP40 Metal Three phase 4P SPD + 4P MCB- Solar / EV Consumer Unit
SURGE POWERBOX IP40 Metal Three phase 4P SPD + 4P MCB- Solar / EV Consumer Unit
Regular price
£78.00 GBP
Regular price
£49.99 GBP
Sale price
£78.00 GBP
Unit price
per
Tax included.
Couldn't load pickup availability

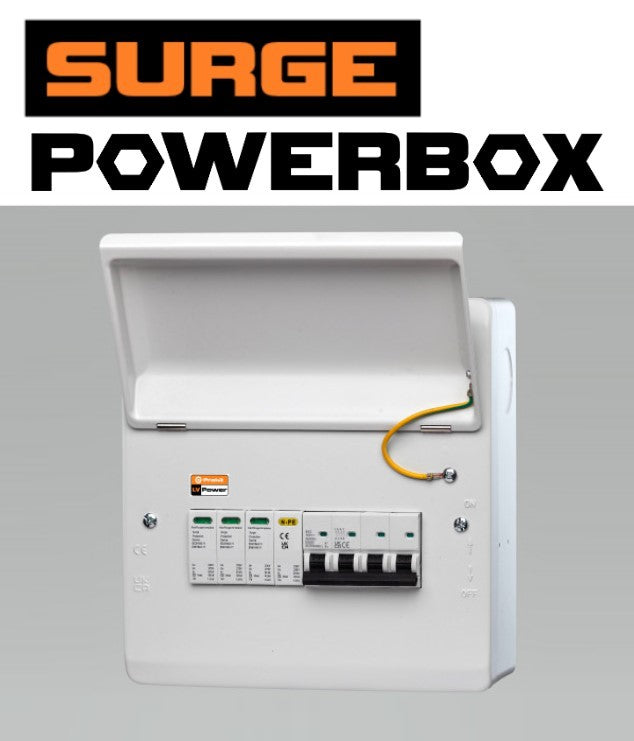

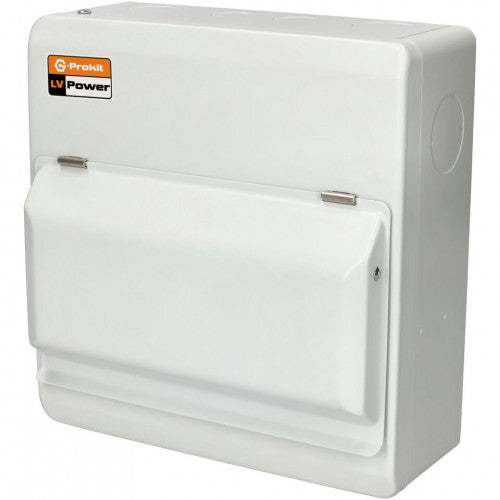

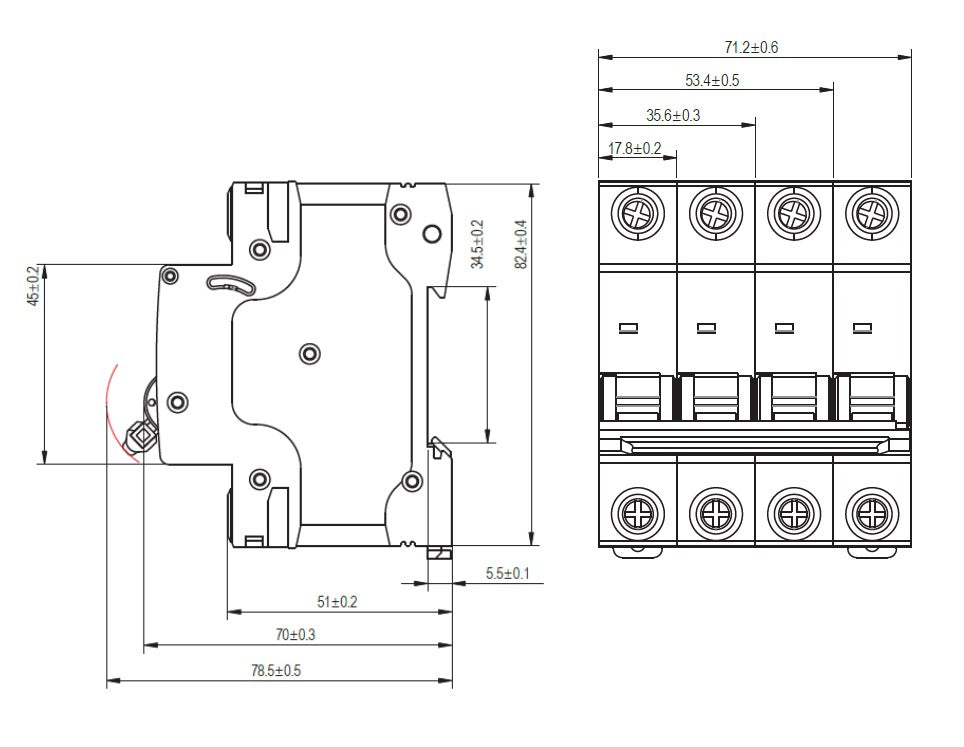

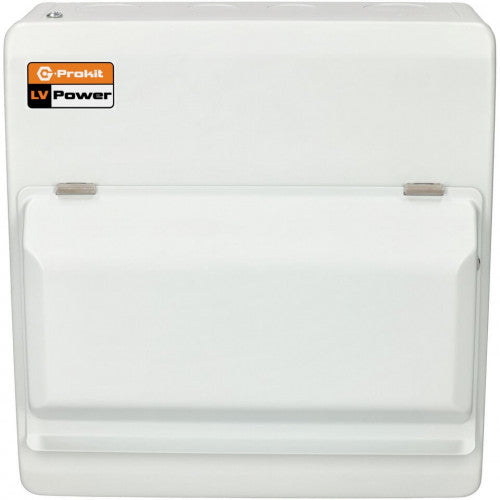

Three phase SPD unit consists of 8 way IP40 metal enclosure, with 4 pole 20kA/40kA type 2 surge protector and 4 pole 10kA MCB.

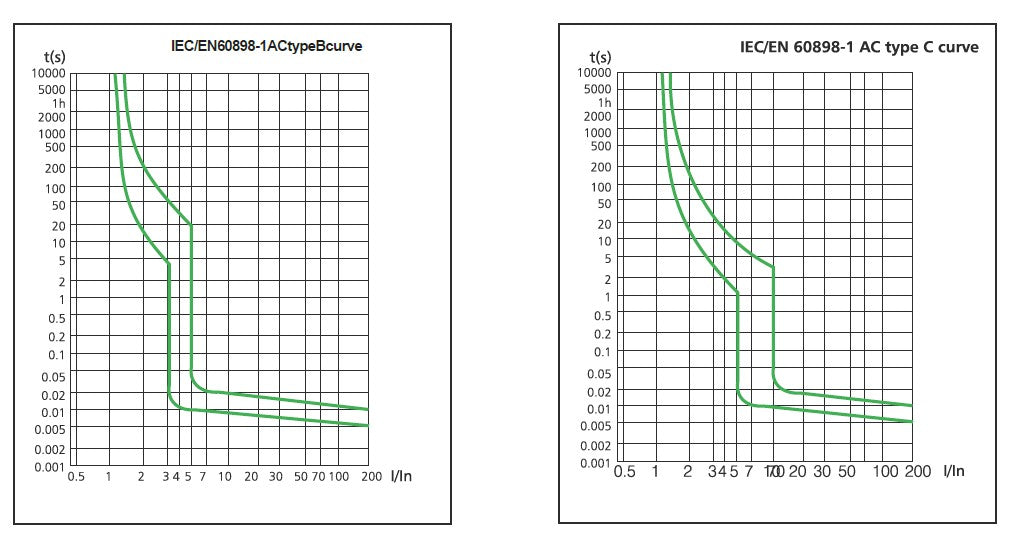

Choose your MCB amperage and curve from the menu
PART CODE: GP-MCUSPD-***
| Rated Current: | 6A/10A/16A/20A/32A/40A/50a/63A |
| Rated Voltage: | 400V AC |
| Frequency: | 50/60Hz |
| Main Device: | SPD |
| Additional Devices: | MCB |
| Degree Of Protection: | IP40 |
| Total number of Ways: | 8 |

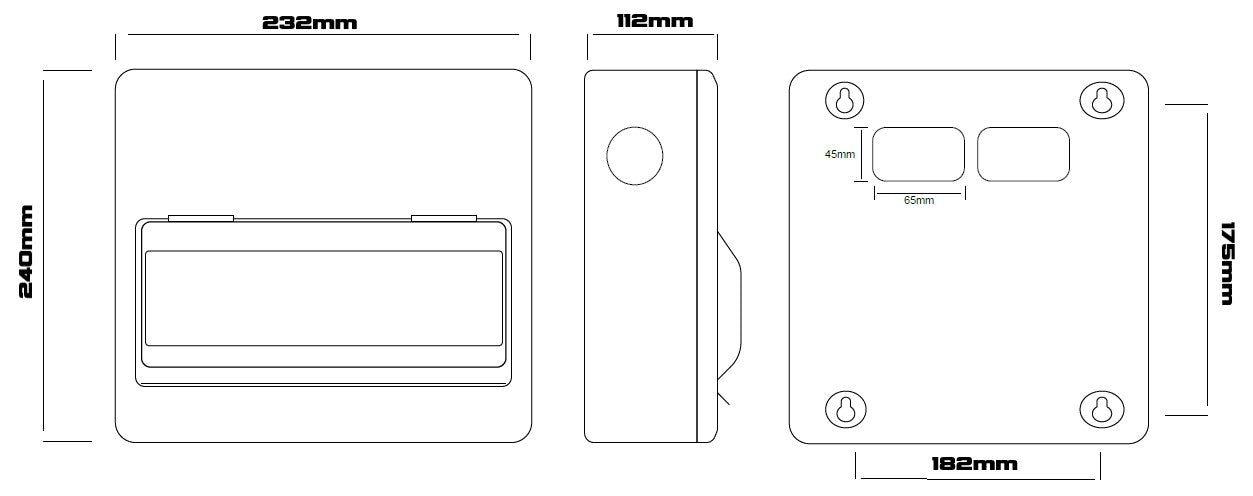

| Height: | 240mm |
| Width: | 232mm |
| Depth: | 112mm |
| Ambient Temperature (C): | -25+55 |
| Storage Temperature (C): | -35+55 |
| Material : | Metal |
| Standard: | BSEN61439-3, BS 7671 |
| Compliance: | UKCA, CE |
| Incoming Supply | 400V |
|---|---|
| Current Rating | 6A/10A/16A/20A/32A/40A/50a/63A |
| IP Rating | IP40 |
| Load Curtailment | No |
| MCB Included | Yes |
| RCBO Included | No |
| SPD Included | Yes |
