WCED SURGE PROTECTED METAL ENCLOSURES WME**/SP
WCED SURGE PROTECTED METAL ENCLOSURES WME**/SP
Regular price
£42.00 GBP
Regular price
£79.99 GBP
Sale price
£42.00 GBP
Unit price
per
Tax included.
Couldn't load pickup availability

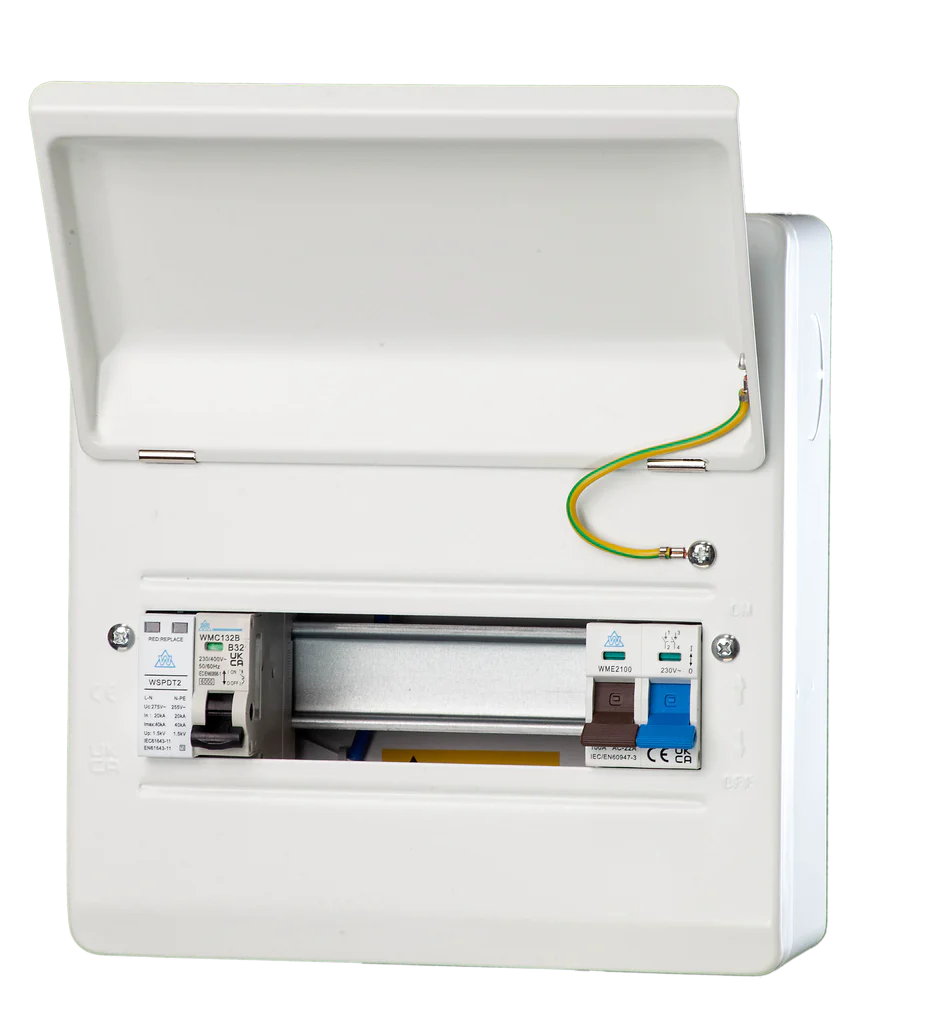

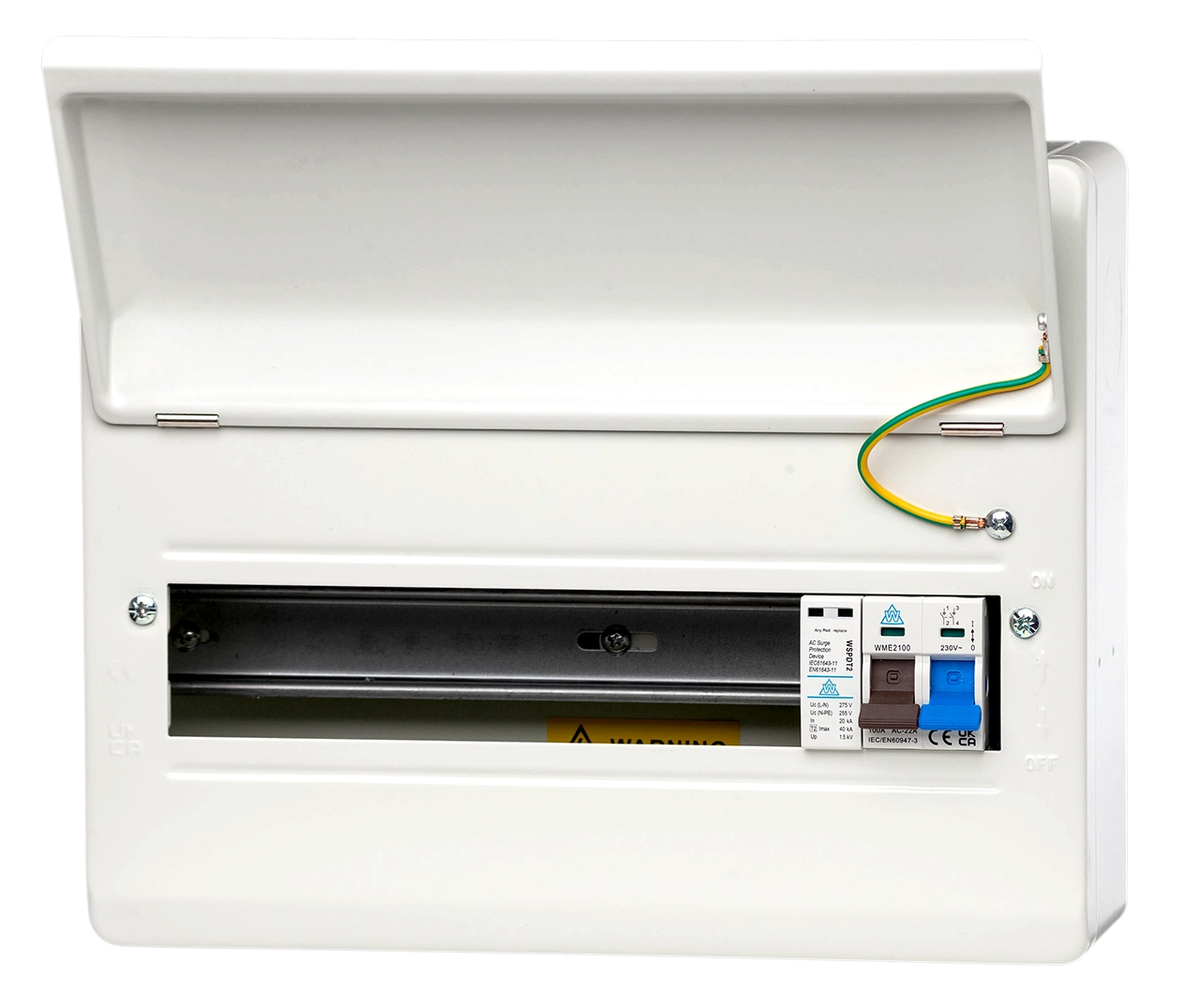

Consumer unit boards with 100A main switch and an SPD device.
metal consumer units are finished in white polyester powder coating. Multiple circular cable entry knock-outs (25 & 32mm) on top and bottom, 40mm on the sides and back plus larger rear slots.
Raised key holes for secure easy installation. Raised din rail improves cable routing. Supplied with neutral and earth terminal bars, neutral cable and pin style bar.
Single-pole Bi-directional RCBOs for this board can be purchased HERE
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WME06/SP | 6 way Enc, 100A M/S + SPD (3 usable ways) | 160x240x112 |
| WME08/SP | 8 way Enc, 100A M/S + SPD (5 usable ways) | 232x240x112 |
| WME10/SP | 10 way Enc, 100A M/S + SPD (7 usable ways) | 232x240x112 |
| WME12/SP | 12 way Enc, 100A M/S + SPD (9 usable ways) | 304x240x112 |
| WME14/SP | 14 way Enc, 100A M/S + SPD (11 usable ways) | 304x240x112 |
| WME16/SP | 16 way En, 100A M/S + SPD (13 usable ways) | 376x240x112 |
| WME18/SP | 18 way Enc, 100A M/S + SPD (15 usable ways) | 376x240x112 |
| WME22/SP | 22 way Enc, 100A M/S + SPD (19 usable ways) | 448x240x112 |

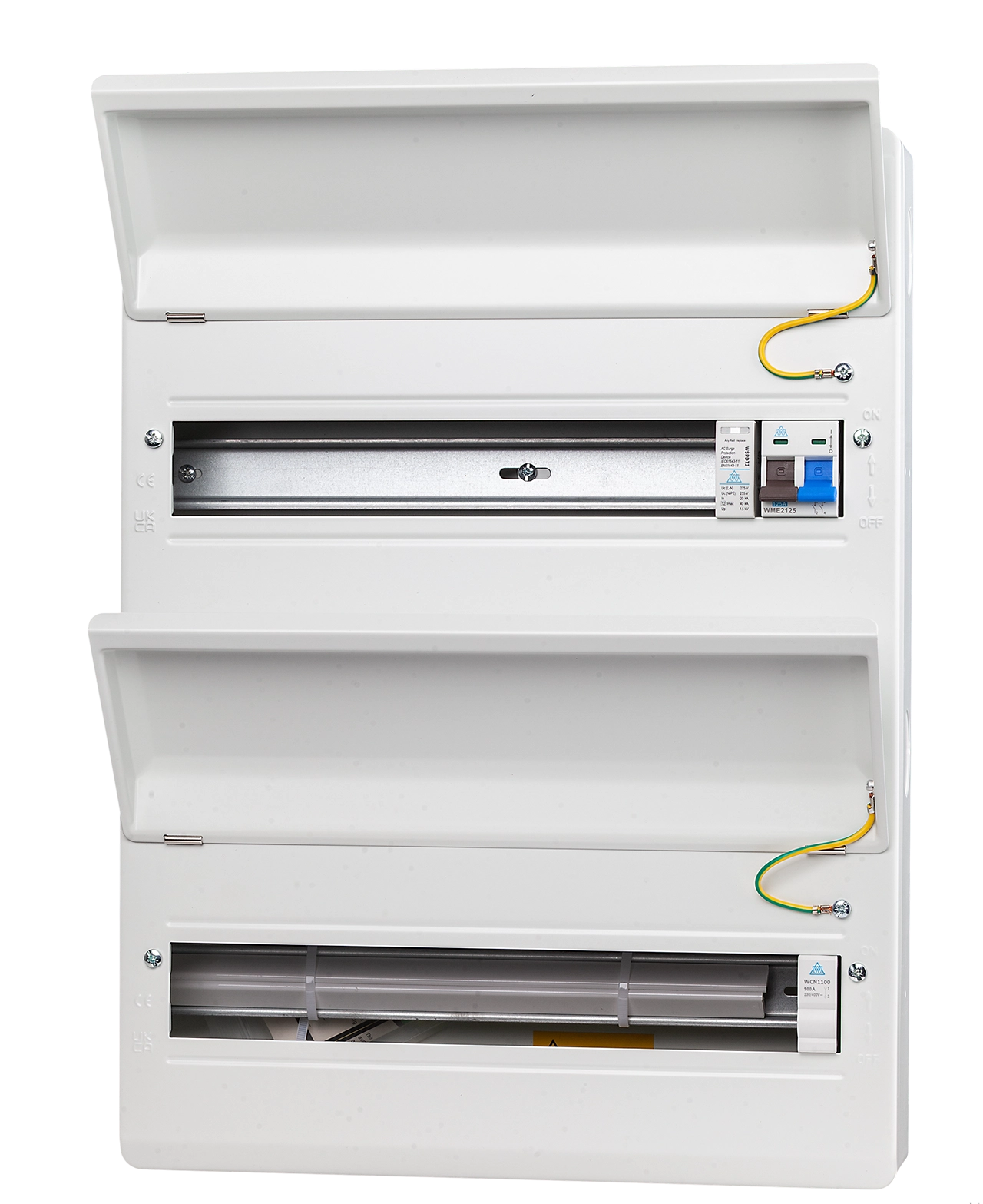

| WME28/SP | 28 way Enc, 100A M/S + SPD dual row (24 usable ways) | 500x304x112 |
| WME36/SP | 36 way Enc, 100A M/S + SPD dual row (32 usable ways) | 500x530x112 |
