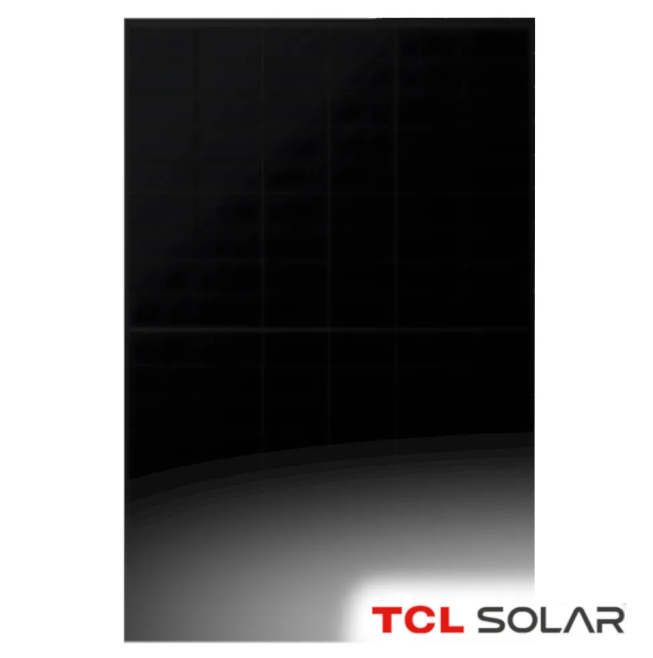

TCL Solar 460W E-Class Full Black Back-Contact, Glass-Glass
£72.95 + VAT each (£ 0.159 pW)
TCL Solar 460W E-Class Full Black Back-Contact, Glass-Glass
The TCL 460W Full Black Back-Contact solar panel delivers high efficiency in a compact, modern design. Its N-type back-contact cells improve light capture by eliminating front-side wiring, achieving efficiency of 23.1%.
Its durable double-glass construction supports long-term performance and optional bifacial gain on reflective surfaces. Backed by TCL SunPower Global, it’s a reliable choice for premium residential and commercial installations.
KEY FEATURES:
- High module conversion efficiency: 23.1%
- Cell Technology: N-Type Bifacial Back-Contact
- Excellent Appearance and Performance - Bifacial solar cell, symmetrical design, low risk of micro-crack
- Design: Full black frame, cells and backsheet
- Black Frame, Anodised Aluminium Alloy
- Glass Thickness: 2.0 mm + 2.0 mm
- Maximum System Voltage: 1,500V DC
- Maximum annual degradation: 0.35%
- Open-Circuit Voltage (Voc): 41.06V
- Short-Circuit Current (Isc): 14.25 A
- Connector: Stäubli MC4-EVO2
- Weight: 24.5 kg
- IP68 Rating, 3 bypass diodes
- Dimensions(LxWxT) mm: 1757x1134x30
- Standard 25 year product warranty; 30-year performance warranty
| Popular Features | N-Type or Glass-Glass/Dual Glass or Bifacial or Back Contact |
| Panel Power Range | 455W - 500W |
| Brand | TCL Solar |
| Power Class | 460 W |
| Watts/ m² | 231 |
| Frame Colour | Black |
| Backsheet | Glass |
| Cells | 108 Half Cells |
| Module Efficiency (%) | 23.1 |
| Open Circuit Voltage - Voc (V) | 41.06 |
| Short Circuit Current - Isc (A) | 14.25 |
| Connector Type | MC4-EVO2 Original |
| Panels per Pallet | 37 |
| Panels per Container | 962 |
| MCS No | MR 50693614 |
| Length (mm) | 1757 |
| Width (mm) | 1134 |
| Thickness (mm) | 30 |
| Annual Degradation (%) | 0.40 |
| Warranty Period | 25 Years |
| Performance Warranty | 30 Years |
| Product Weight (Kg) | 24.2 |
