Trina Solar 450W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, Black Frame
Trina Solar 450W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, Black Frame
Couldn't load pickup availability
Trina Solar 450W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, All Black
£51.49 + VAT each (£ 0.1144 pW)
rina Solar 450W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, All Black

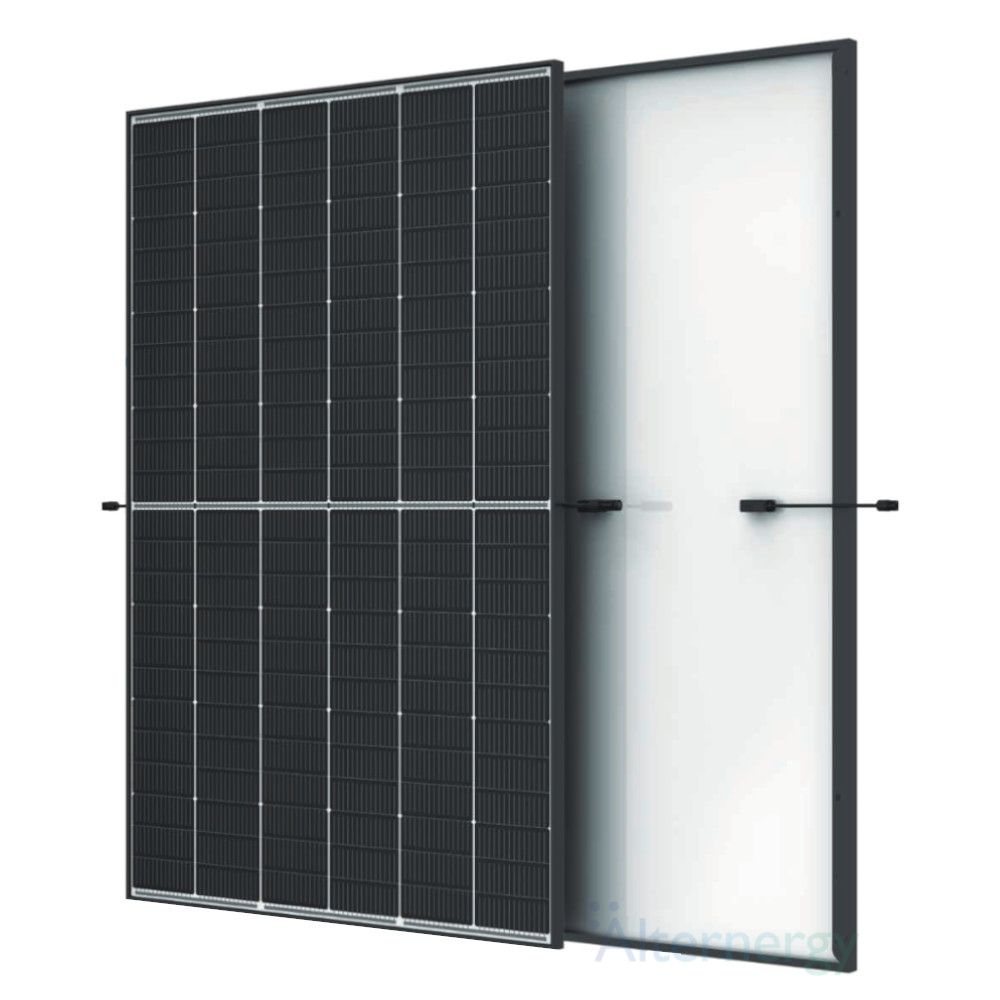

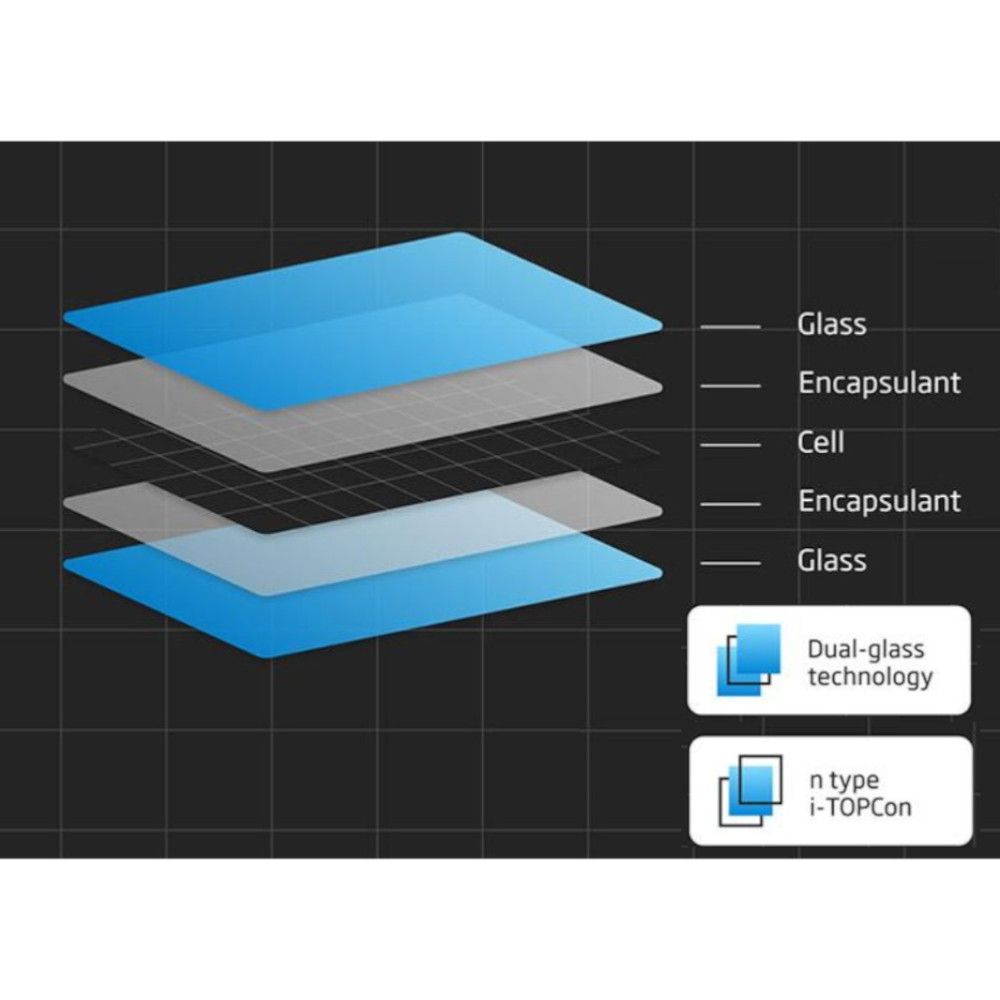

The Trina Solar Vertex S+ Dual Glass is based on N-type i-TOPCon cell technology. Dual-glass improves durability, fire resistance, and performance. The panel delivers 450W output power and 22.5% module efficiency.
The upgraded dual glass of Vertex S+ is less prone to micro-cracks and scratches on the back during installation. The model offers innovative non-destructive cutting for improved mechanical resistance and strength.
A stylish solar panel designed for commercial or residential applications.
KEY FEATURES:
-
- Dual Glass N-Type panel
- Black aluminium frame; black backsheet
- Half-Cut Dual Glass N-Type i-TOPCon Module
- Front Glass: 1.6mm Strenghtened Glass
- Black Glass: 1.6mm Strenghtened Glass
- Maximum System Voltage: 1,500V DC
- Extended load tests - 5,400 Pascal snow load and 4,000 wind load
- Fire rating C, salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature, humidity area and harsh environment
- Dimensions: 1762*1134*30mm
- IP68 Protection
- 25-Year Product Warranty; 30-Year Power Warranty
Important: Trina Solar has recently stated that while fitting their modules one should follow Trina Solar’s own User Manual, as improper fitting can invalidate product warranty.
| Brand | Trina Solar |
|---|---|
| Power Class | 450 W |
| Watts/ m² | 225 |
| Cells | 144 Half Cells (6X24 half cells) |
| Frame Colour | Black |
| Backsheet | Black |
| Popular Features | N-Type, TOPCon, Glass-Glass/Dual Glass, Monofacial, All Black Panels |
| Module Efficiency (%) | 22.3 |
| Open Circuit Voltage - Voc (V) | 52.9 |
| Short Circuit Current - Isc (A) | 10.74 |
| Connector Type | TS4 (MC4 EVO2 Compatible) |
| Length (mm) | 1762 |
| Width (mm) | 1134 |
| Thickness (mm) | 30 |
| Product Weight (Kg) | 21.0 |
| Panels per Pallet | 36 |
| Panels per Container | 936 |
| MCS No | BABT8804-129-450W |
| Warranty Period | 25 Years |
| Performance Warranty | 30 Years |
| Annual Degradation (%) | 0.40 |
