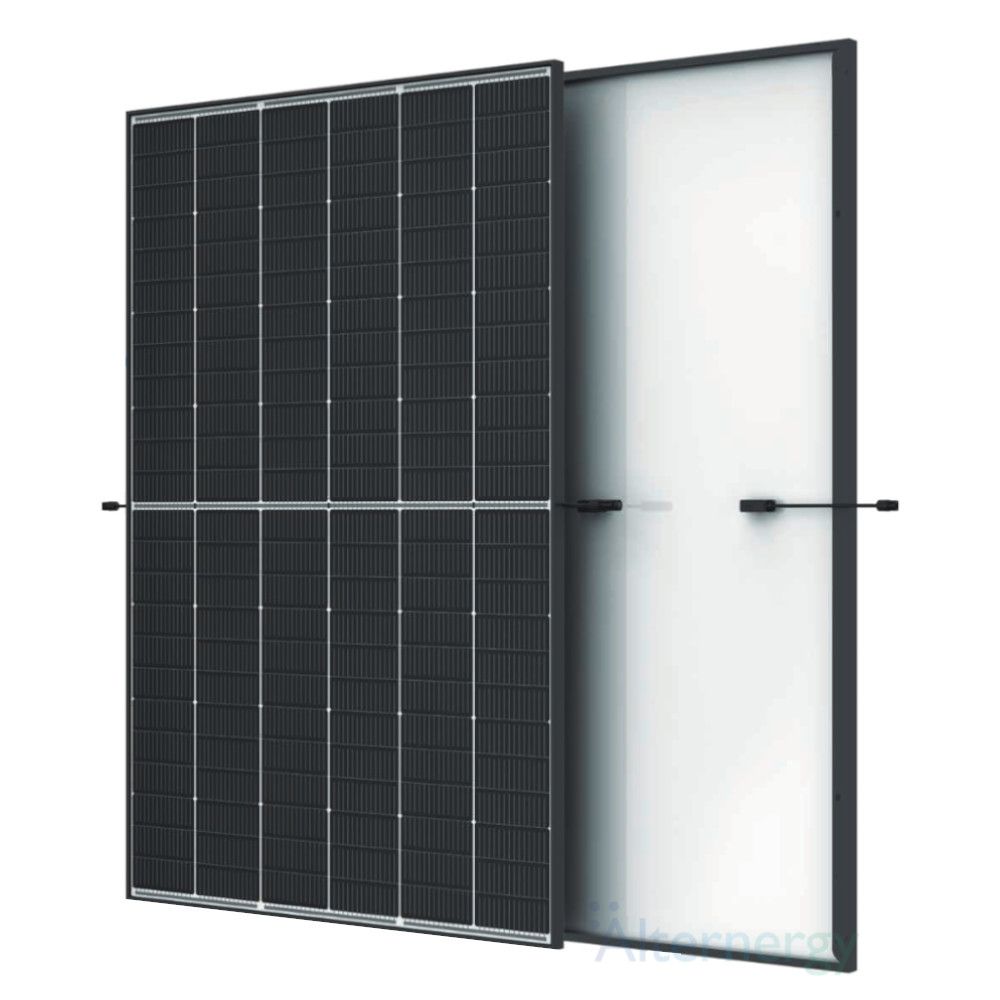

Trina Solar 455W Vertex S+ N-Type TOPCon, Dual Glass, Black Frame
Trina Solar 455W Vertex S+ N-Type TOPCon, Dual Glass, Black Frame
Regular price
£64.19 GBP
Regular price
£89.99 GBP
Sale price
£64.19 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Trina Solar 455W Vertex S+ N-Type TOPCon, Dual Glass, Black Frame
£53.49 + VAT each (£ 0.1176 pW)
Trina Solar 455W Vertex S+ N-Type TOPCon, Dual Glass, Black Frame

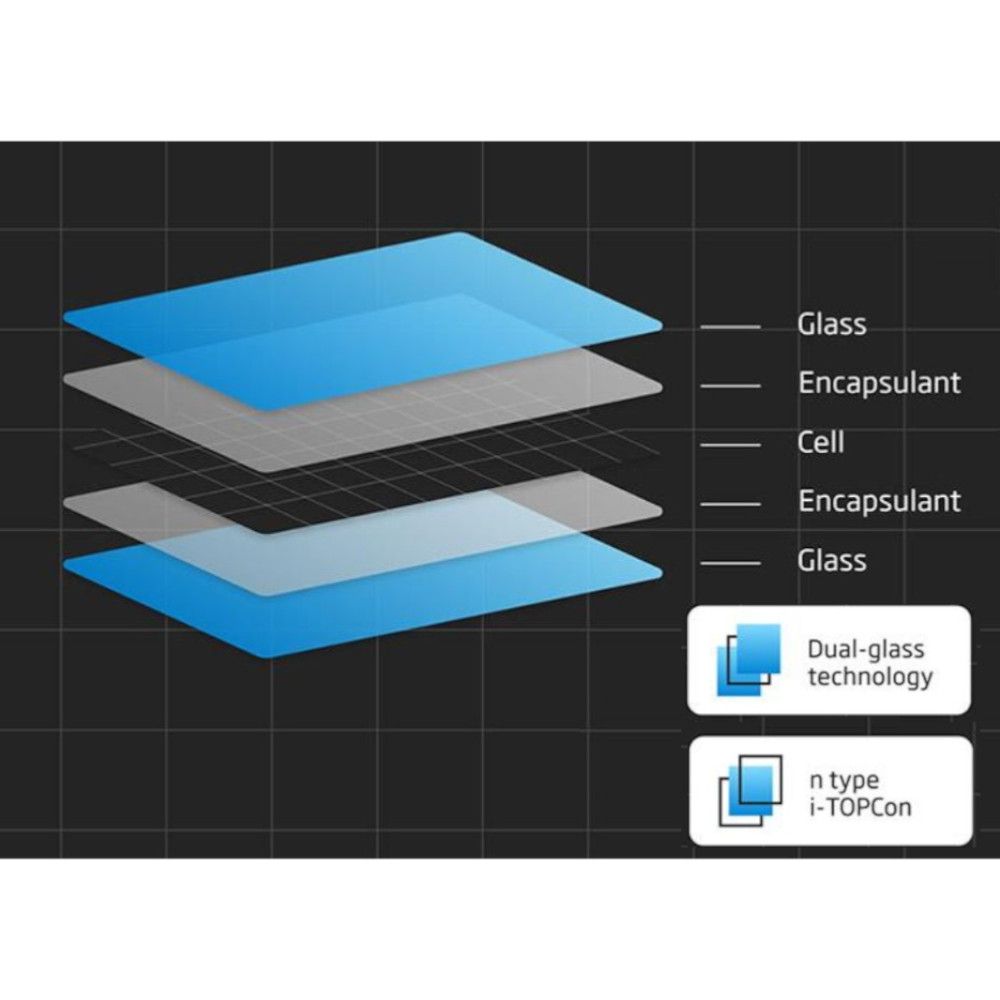

The Trina Solar Vertex S+ Dual Glass is based on N-type i-TOPCon cell technology. Dual-glass improves durability, fire resistance, and performance. The panel delivers 455W output power and 22.8% module efficiency.
The upgraded dual glass of Vertex S+ is less prone to micro-cracks and scratches on the back during installation. The model offers innovative non-destructive cutting for improved mechanical resistance and strength.
A stylish solar panel designed for commercial or residential applications.
KEY FEATURES:
- Dual Glass N-Type panel
- Black aluminium frame; white backsheet
- Half-Cut Dual Glass N-Type i-TOPCon Module
- Front Glass: 1.6mm Strengthened Glass
- Black Glass: 1.6mm Strengthened Glass
- Maximum System Voltage: 1,500V DC
- Extended load tests - 5,400 Pascal snow load and 4,000 wind load
- Dimensions: 1762*1134*30mm
- IP68 Protection
- 25-Year Product Warranty; 30-Year Power Warranty
important: Trina Solar has recently stated that while fitting their modules one should follow Trina Solar’s own User Manual, as improper fitting can invalidate product warranty.
| Brand | Trina Solar |
|---|---|
| Power Class | 455 W |
| Watts/ m² | 223 |
| Cells | 144 Half Cells (6X24 half cells) |
| Frame Colour | Black |
| Backsheet | White |
| Popular Features | N-Type, TOPCon, Glass-Glass/Dual Glass, Monofacial |
| Module Efficiency (%) | 22.8 |
| Open Circuit Voltage - Voc (V) | 53.4 |
| Short Circuit Current - Isc (A) | 10.77 |
| Connector Type | MC4-EVO2 Compatible |
| Length (mm) | 1,762 |
| Width (mm) | 1,134 |
| Thickness (mm) | 30 |
| Product Weight (Kg) | 21 |
| Panels per Pallet | 36 |
| Panels per Container | 936 |
| MCS No | BABT8804-123-455W |
| Warranty Period | 25 Years |
| Performance Warranty | 30 Years |
| Annual Degradation (%) | 0.40 |
