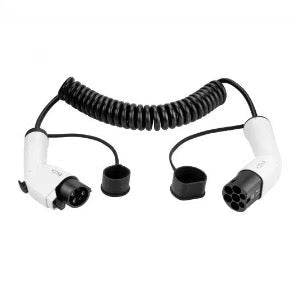

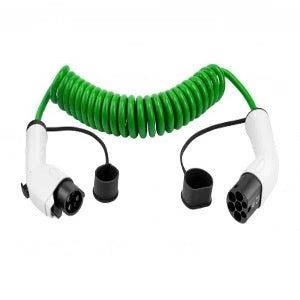

Type 1 EV Coiled Charging Cable | 16 amp | Green or Black | 7.5 metres | Single Phase
Type 1 EV Coiled Charging Cable | 16 amp | Green or Black | 7.5 metres | Single Phase
Couldn't load pickup availability
Description
This Type 1 Charging cable is great for storage when not in use and charges vehicles with a Type 1 Connector.
It is suitable for use at home, work or public charging stations with both EVs and PHEVs.
The coiled cable has the advantage of ease of storage over straight cables, recoiling neatly when not in use.
It has a maximum charge rate of 3.6kW (up to approximately 1 mile of range for every 3 to 4 minutes of charging or 1km of range for every 2 to 3 minutes of charging)** or
The cable and connectors are both high quality and come with a 2 year manufacturer's guarantee.
The cable recoils to 1.3 to 1.5m for storage when not in use.
| Mitsubishi Outlander |
| Mitsubishi I Miev |
| Nissan Leaf Pre 2017 |
| Nissan eNV 200 |
| Dynamo Taxi |
| Fisker Karma |
| Fiat 500 |
| Ford C - Max |
| Ford Focus |
| Ford Transit |
| Peugeot Galicia |
| Peugeot iON |
| Peugeot Partner |
| Nissan Leaf pre 2018 |
| Renault Kangoo |
| Toyota Auris |
| Toyota Prius pre 2017 |
All cables in stock in the UK.
OUR RECOMMENDATIONS
For PHEVs, we recommend the 16 amp cable but why not future proof yourself and upgrade to a 32 amp cable which is equally compatible and you can use if you own an EV in the future?
For EVs, we recommend the 32 amp cable.
Using at home? Why not reduce the potential for trips and a hazards, view our cable management section.
Using at the work or elsewhere? Why not store the cable neatly and cleanly in one of our cable bags.
TECHNICAL PRODUCT SPECIFICATION
|
AC Single Phase Charging Cable |
|

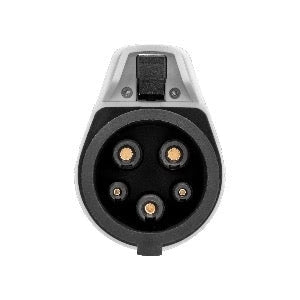

Type 1 Connector SAE J1772 |
|
16 or 32 amp Rated Cable |
|
Compatible with 16 amp and 32 amp single phase charging points/equipment. Rate of charge governed by vehicle, typical 3.6kW for a 16 amp cable and 7.2kW for a 32 amp cable. |
|
Operating Temperature Window -30C to +50C |
|
CE and TUV Certified |
|
Weight 4kg |
|
24 months Manufacturer's Guarantee |
*Usable length-Although our cables are generously sized, usable length of coiled cables is part determined by the physical resistance from the power source socket it pulls against. In the unlikely event physical resistance is insufficient to stretch the cable, a lower useable length will be seen. If this causes issues we would be pleased to exchange the cable for the next length up.
**Range varies by vehicle manufacturer and power supply used, ranges stated are approximate. Some vehicles are limited to 16 amp charging by the vehicle manufacturer.
