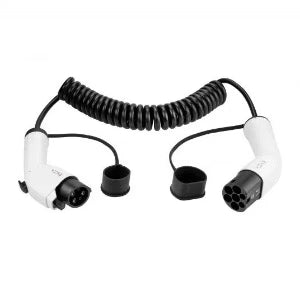

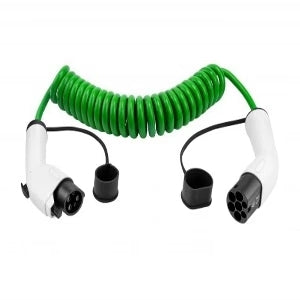

Type 1 EV Coiled Charging Cable | 32 amp | Green or Black | 1.8, 3, 5 or 7.5 metres | Single Phase
Type 1 EV Coiled Charging Cable | 32 amp | Green or Black | 1.8, 3, 5 or 7.5 metres | Single Phase
Couldn't load pickup availability
Description
This Type 1 Charging cable is great for storage when not in use and charges vehicles with a Type 1 Connector.
It is suitable for use at home, work or public charging stations with both EVs and PHEVs.
The coiled cable has the advantage of ease of storage over straight cables, recoiling neatly when not in use. The cables are available in 3, 5 or 7.5 metre usable cable lengths.*
This cable is rated at 32 amps with a maximum charge rate of 7.4kW (up to approximately 1 mile of range for every 2 to 3 minutes of charging or 1km of range for every 1 to 2 minutes of charging).**
The cable and connectors are both high quality and come with a 2 year manufacturer's guarantee.
The cable recoils to the following lengths for storage when not in use:
1.8m - 0.4 to 0.55m
3m - 0.5 to 0.75m
5m - 1.0 to 1.2m
7.5m - 1.3 to 1.5m
| Mitsubishi Outlander |
| Mitsubishi I Miev |
| Nissan Leaf Pre 2017 |
| Nissan eNV 200 |
| Dynamo Taxi |
| Fisker Karma |
| Fiat 500 |
| Ford C - Max |
| Ford Focus |
| Ford Transit |
| Peugeot Galicia |
| Peugeot iON |
| Peugeot Partner |
| Nissan Leaf pre 2018 |
| Renault Kangoo |
| Toyota Auris |
| Toyota Prius pre 2017 |
All cables in stock in the UK.
TECHNICAL PRODUCT SPECIFICATION
|
AC Single Phase Charging Cable |
|

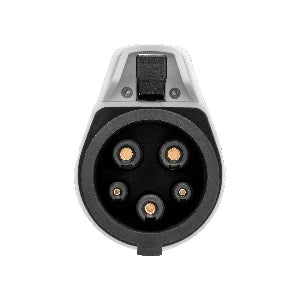

Type 1 Connector SAE J1772 |
|
32 amp Rated Cable |
|
Compatible with 32 amp single phase charging points/equipment. Rate of charge governed by vehicle, unto 7.4kW. |
|
Operating Temperature Window -30C to +50C |
|
CE and TUV Certified |
|
Weight 1.5m - 2 kg, 3m - 2.8 kg, 5m - 4 kg, 7.5m - 4 kg |
|
24 months Manufacturer's Guarantee |
*Usable length-Although our cables are generously sized, usable length of coiled cables is part determined by the physical resistance from the power source socket it pulls against. In the unlikely event physical resistance is insufficient to stretch the cable, a lower useable length will be seen. If this causes issues we would be pleased to exchange the cable for the next length up.
**Range varies by vehicle manufacturer and power supply used, ranges stated are approximate. Some vehicles are limited to 16 amp charging by the vehicle manufacturer.
