Type 1 Tethered EV Cable | 32 amp | Green or Black | 5, 10 or 15 metres | Single Phase
Type 1 Tethered EV Cable | 32 amp | Green or Black | 5, 10 or 15 metres | Single Phase
Description
ONLY TO BE INSTALLED BY A QUALIFIED ELECTRICIAN
This Type 1 tethered cable is suitable for use with all major brands of home chargers that have a tethered cable and is ideal for the following circumstances:
- Increase the length of the tethered cable from the charger to the car
- Change the colour of the tethered cable
- Replacement for defective or worn tethered cables
- Customers looking to change from a Type 2 tethered lead to a Type 1 tethered lead
This cable is rated at 32 amps - maximum charge rate of 7.4kW (up to approximately 1 mile of range for every 2 to 3 minutes of charging or 1 km of range for every 1 to 2 minutes of charging)*
The cable and connectors are both high quality and are provided with a 2 year manufacturer's guarantee.

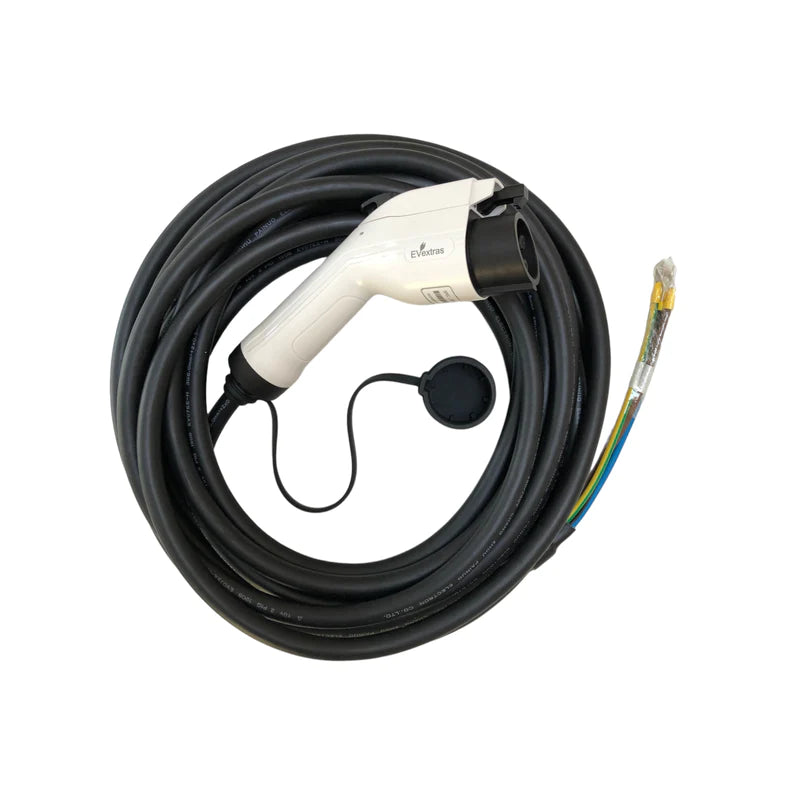

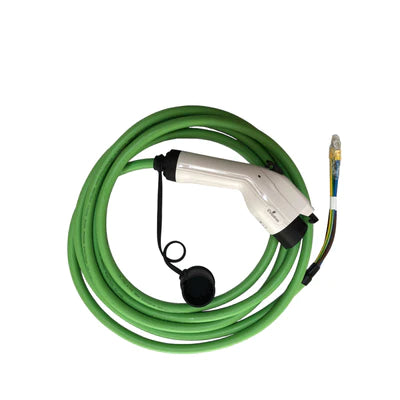

You have a choice between black or green and cable lengths of 5, 10 or 15 metres.
All cables in stock in the UK.
No exchange policy on this cable once installed.
This Type 1 cable is suitable for use with the following vehicles, all other makes and models use Type 2 connector.
Mitsubishi Outlander |
Mitsubishi I Miev |
Nissan Leaf Pre 2017 |
Nissan eNV 200 |
Dynamo Taxi |
Fisker Karma |
Fiat 500 |
Ford C - Max |
Ford Focus |
Ford Transit |
Peugeot Galicia |
Peugeot iON |
Peugeot Partner |
Nissan Leaf pre 2018 |
Renault Kangoo |
Toyota Auris |
Toyota Prius pre 2017 |
TECHNICAL PRODUCT SPECIFICATION
Compatible with Wallboxes CABLE TO BE INSTALLED INTO A WALLBOX BY A QUALIFIED ELECTRICIAN |

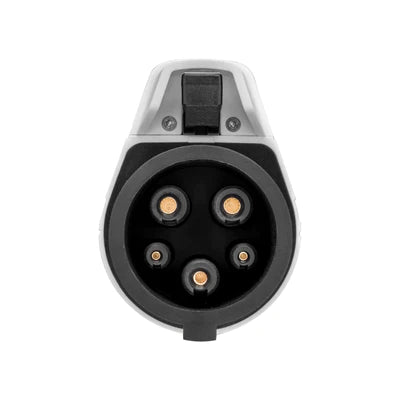

Cable Connector-Type 1 SAEJ1772 - refer to our " Vehicle make and model Search" for cable type |
AC Single Phase Charging Cable |
32 amp rated Cable |
Compatible with 32 amp charging points/ equipment rate of charge governed by vehicle, upto 7.4 kW. |
Operating Temperature Window -30C to +50C |
CE and TUV Certified |
Weight: 5m - 2.4kg, 10m - 4.6kg, 15m - 5kg |
24 months Manufacturer's Guarantee |
*Range varies by vehicle manufacturer and power supply used, ranges stated are approximate.
