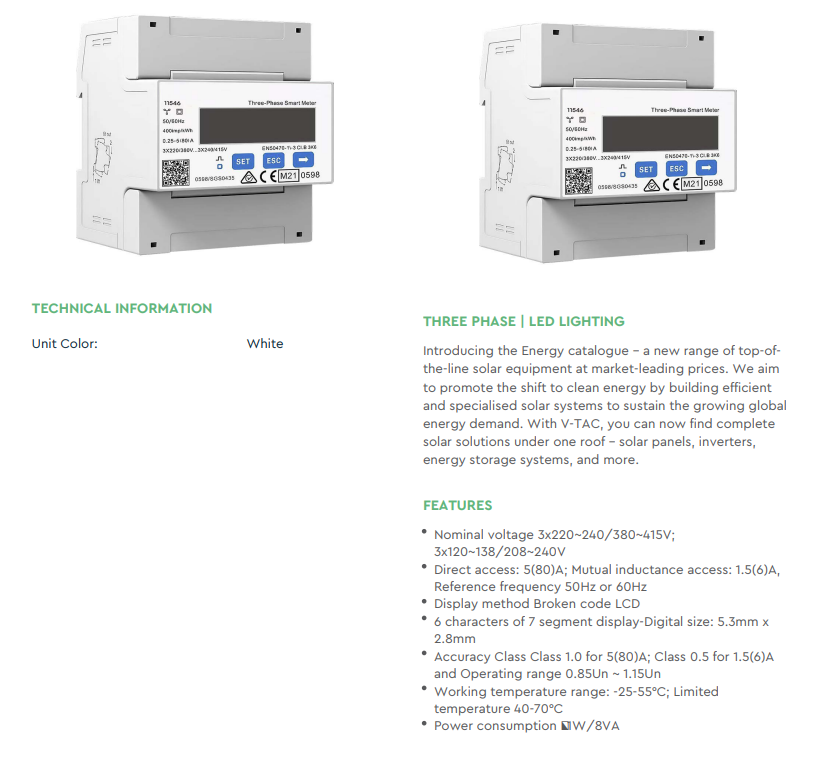

VT-DTSU666 SMART METER 3X230/400V 5(80)A RS485 4P MID
VT-DTSU666 SMART METER 3X230/400V 5(80)A RS485 4P MID
Regular price
£105.00 GBP
Regular price
Sale price
£105.00 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
- ModelVT-DTSU666
- Unit ColorWhite
- Operation Temperature-25°C to +55°C
- Sensor CompatibleSensor Compatible
- Nominal voltage 3x220~240/380~415V; 3x120~138/208~240V
- Direct access: 5(80)A; Mutual inductance access: 1.5(6)A, Reference frequency 50Hz or 60Hz
- Display method Broken code LCD
- 6 characters of 7 segment display-Digital size: 5.3mm x 2.8mm
- Accuracy Class Class 1.0 for 5(80)A; Class 0.5 for 1.5(6)A and Operating range 0.85Un ~ 1.15Un
- Working temperature range: -25-55°C; Limited temperature 40-70°C
- Power consumption 1W/8VA
