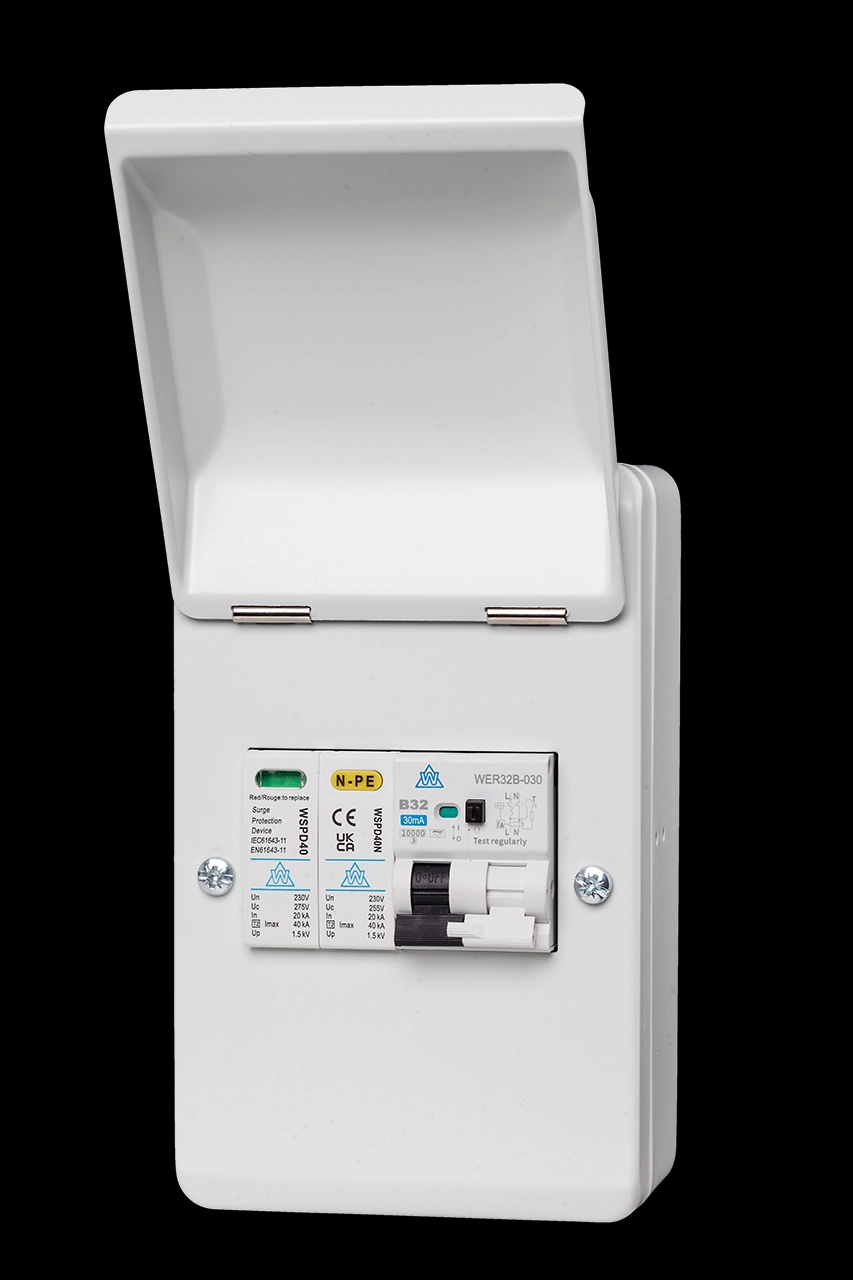

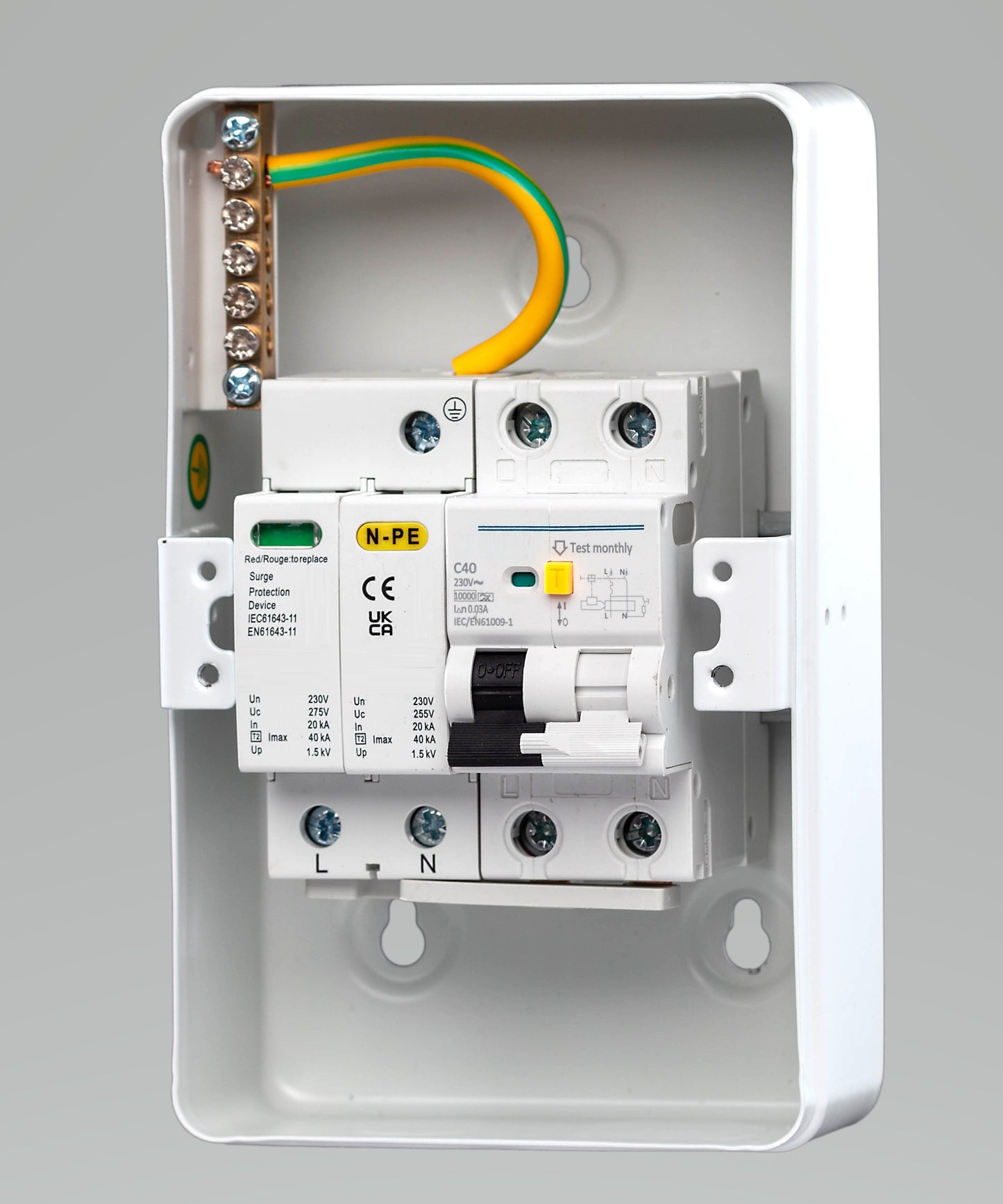

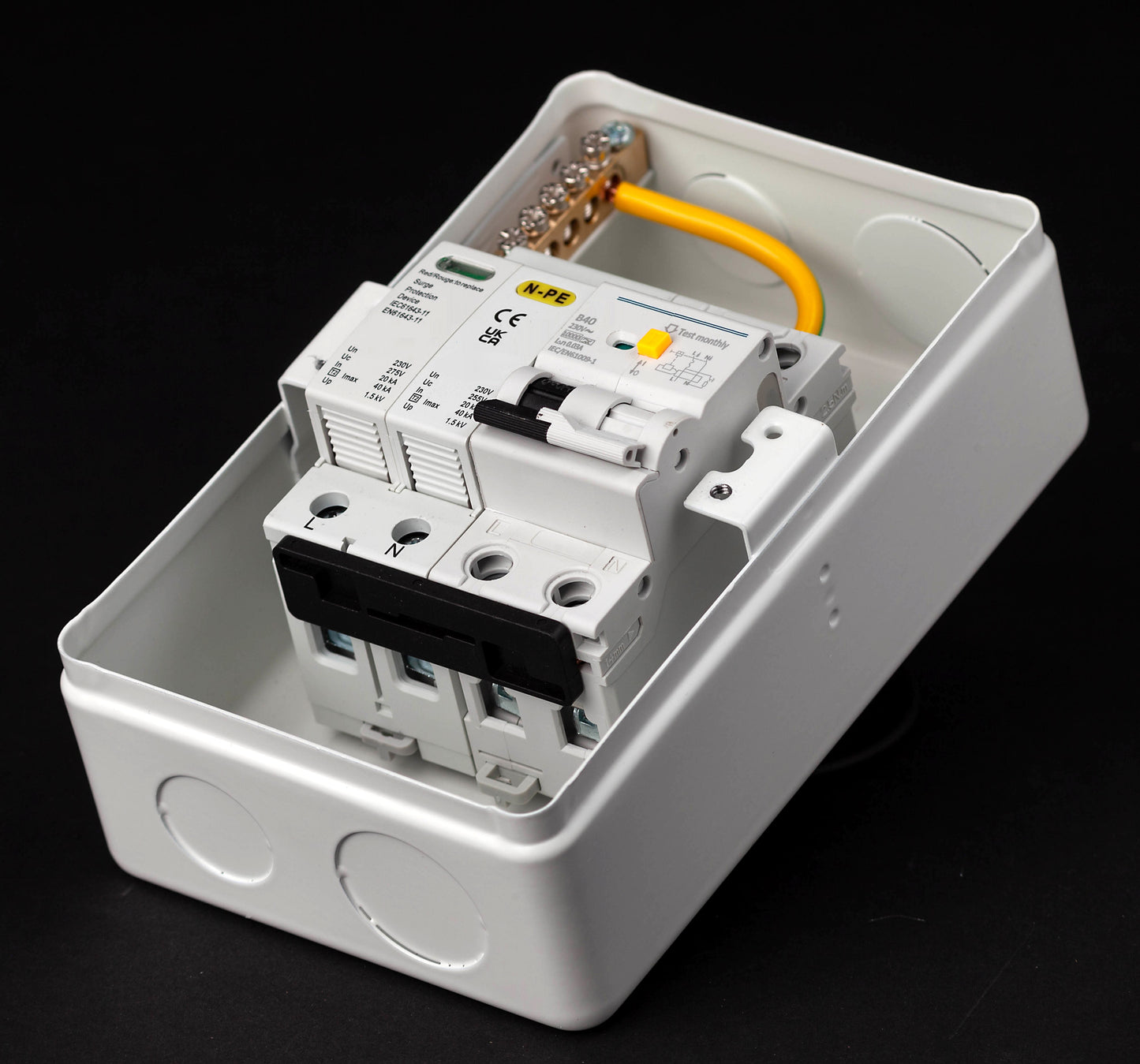

WCED 4-way metal IP40 A-Type Bi-Directional RCBO and Surge Protection Unit for Electric Vehicle Charging

WMRC enclosures are finished in white polyester powder coating. Multiple circular cable entry knock-outs (25&32mm) on the top and bottom. It is ideal for electrical vehicle installations. Twin handle system for the bi-directional RCBO, black handle controls MCB function, white handle controls RCD function. If only the black handle trips off, it indicates overload or short circuit. If both white and black handle trip, it will indicate residual current fault. This will assist the electrician to solve the electrical fault quickly, saving time and money.

A-type high immunity

30ma AC earth leakage

6ma DC earth leakage

Type A Double Pole Bi-directional 16A/25A/32A/40A RCBO Curve B/C

Choose your RCBO amperage from the  menu

VIEW DATA SHEET
