WCED IP65 Metal A Type 40A C curve RCBO EV Protection Unit + Surge Protection. WMIP40CSP
WCED IP65 Metal A Type 40A C curve RCBO EV Protection Unit + Surge Protection. WMIP40CSP
Couldn't load pickup availability

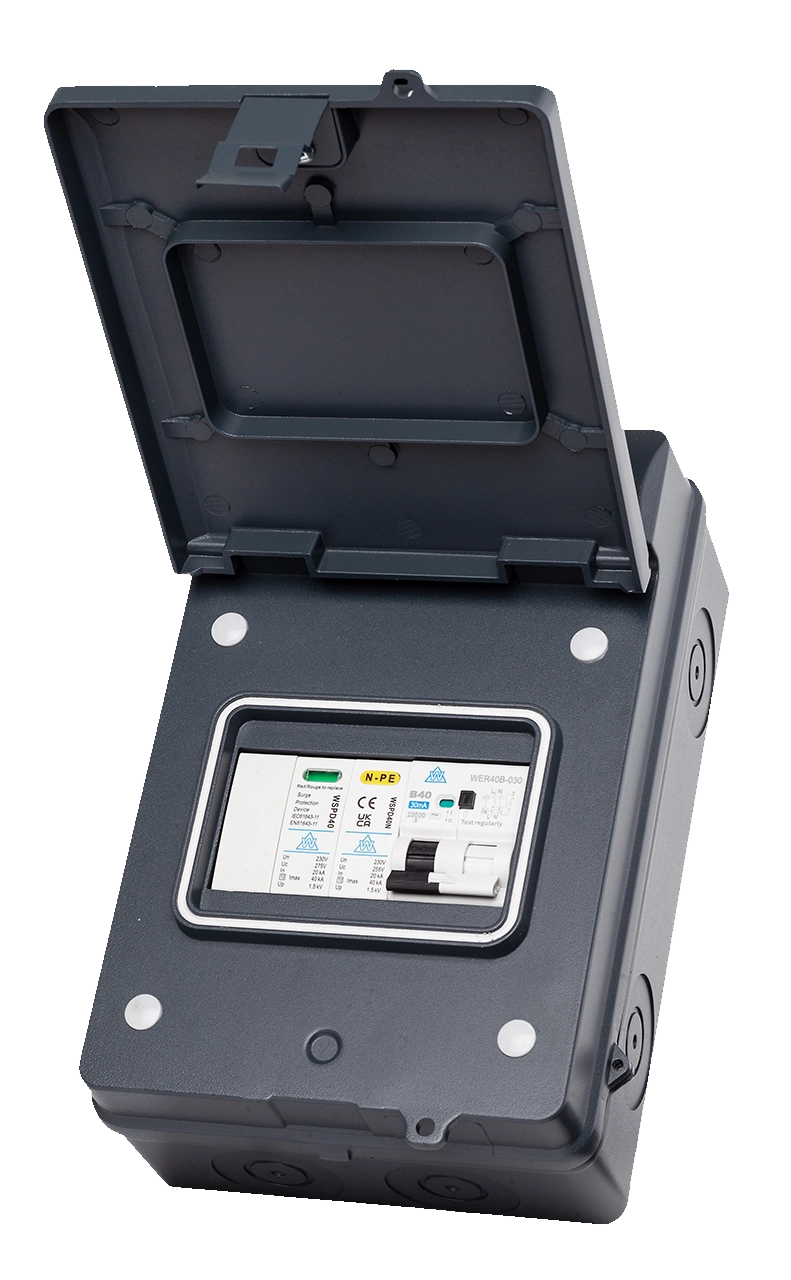

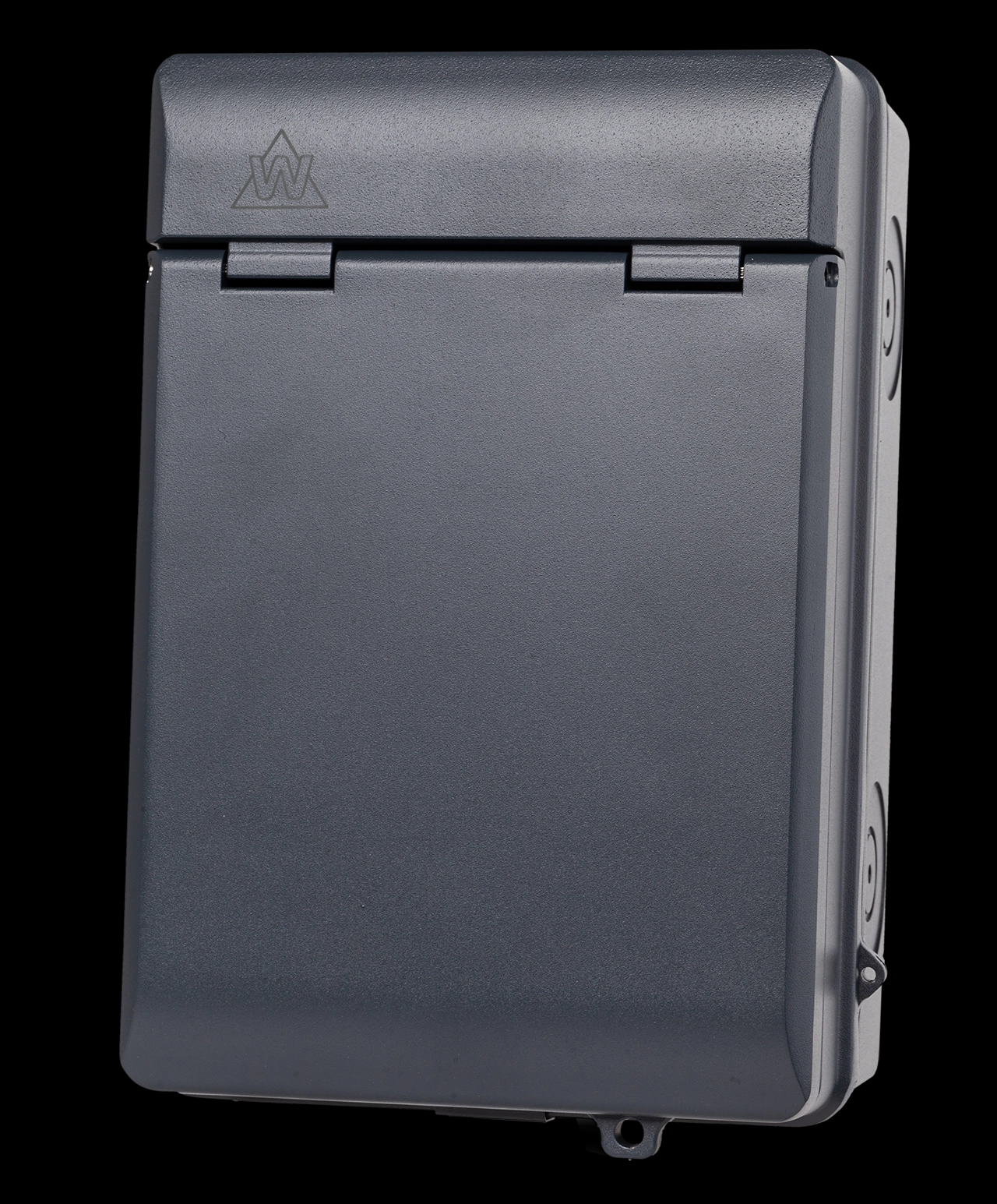

5 module IP65 Metal EV Enclosure with A Type Bi-Directional 40A, B curve RCBO and SPD
WMIP enclosures are ideal for electrical vehicle outdoor installations. Supplied with A type RCBO which detect AC and pulsating DC earth leakage up to 6ma .Twin handle system RCBO, black handle controls MCB function, white handle controls RCD function. If only black handle trip off, it indicates overload or short circuit. If both white and black handle trip, it will indicate residual current fault. This will assist electrician to solve the electrical fault quickly, saving time and money.
Features
1) Non-combustible aluminum enclosure is resistant to rust, rot, corrosion, and fires
2) Lockable design, can be locked with a padlock
3) IP65 rating provides unbeatable protection against dust and water for your devices
4) Pulsating dc 6mA protection
5) Short-circuit protection , overload protection, earth leakage protection, protection against electric shock
6) Surge protection, protection against lightning strikes
7) Large and accessible wiring space
8) Raised Din rail improves cable routing
9) M20 knockouts can be drilled to M32
10) Recommended Torque: 2.5Nm
11) Complies with 18th Edition BS 7671
12) Enclosure manufactured and tested to BS EN 61439-3

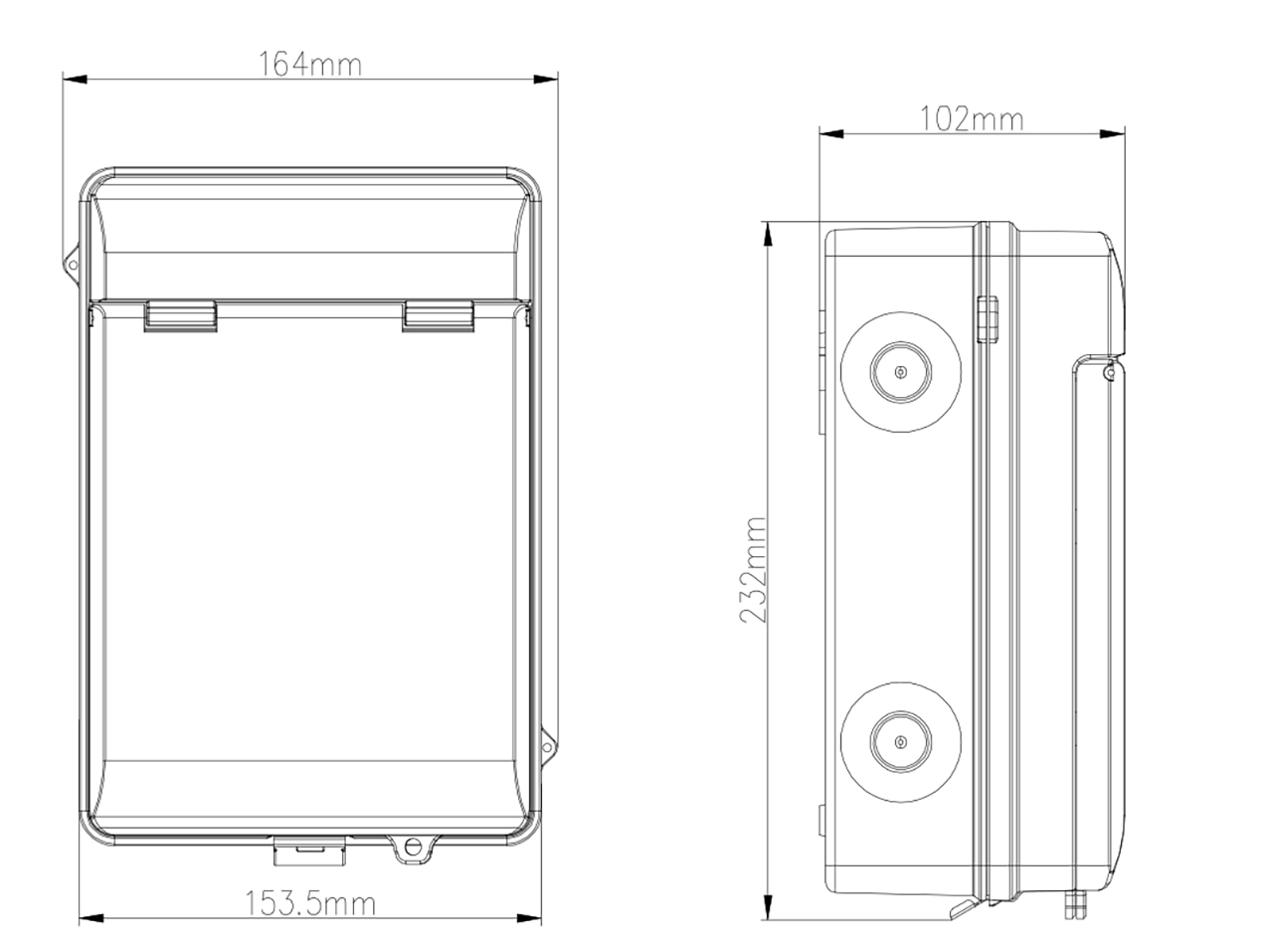

| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WMIP32BSP | 32A B curve RCBO + Surge | 164x232x102 |
| WMIP32CSP | 32A C curve RCBO + Surge | 164x232x102 |
| WMIP40BSP | 40A B curve RCBO + Surge | 164x232x102 |
| WMIP40CSP | 40A C curve RCBO + Surge | 164x232x102 |
Technical data
| Standard | BSEN61439-3 BSEN61009-1 BSEN61643-11 |
| No. of modules | 5 |
| Rated voltage | 230V |
| Rated current | according to the rated current of the RCBO |
| Frequency | 50Hz |
| Cable entry | Selection of knockouts |
| Incoming terminal capacity | 35mm² max |
| Terminal type | cage clamp |
| Protection class IP rating | IP65 |
| Sure protection | type 2 |
| Visual indication of surge protection | Green = good, Red = bad |
| Device mounting | 35mm din rail |
| Ambient temp | -25°C --- +40°C |
